LED Apron Floodlights for High Masts
For nearly 15 years, we have been focusing on LED floodlighting for large area illumination. We gained invaluable experience as pioneers in the industry-wide conversion to LED airport illumination technology and nowadays, work large scale projects like Dubai DXB Airport.
The ewo R-System floodlight was designed and developed by ewo for large area lighting. The modular technology and its diverse configuration options makes it possible for us to fine-tune the production technique precisely to every specifier’s needs for precise directional illumination and reliable temperature management, using the highest high-quality components.
You can download a full brochure here.
ewo is certified in compliance with the Swiss Quality Management System SQS ISO9001.
ewo is based in Cortaccia, South Tyrol, Italy.
0 % uplight, 100 % performance

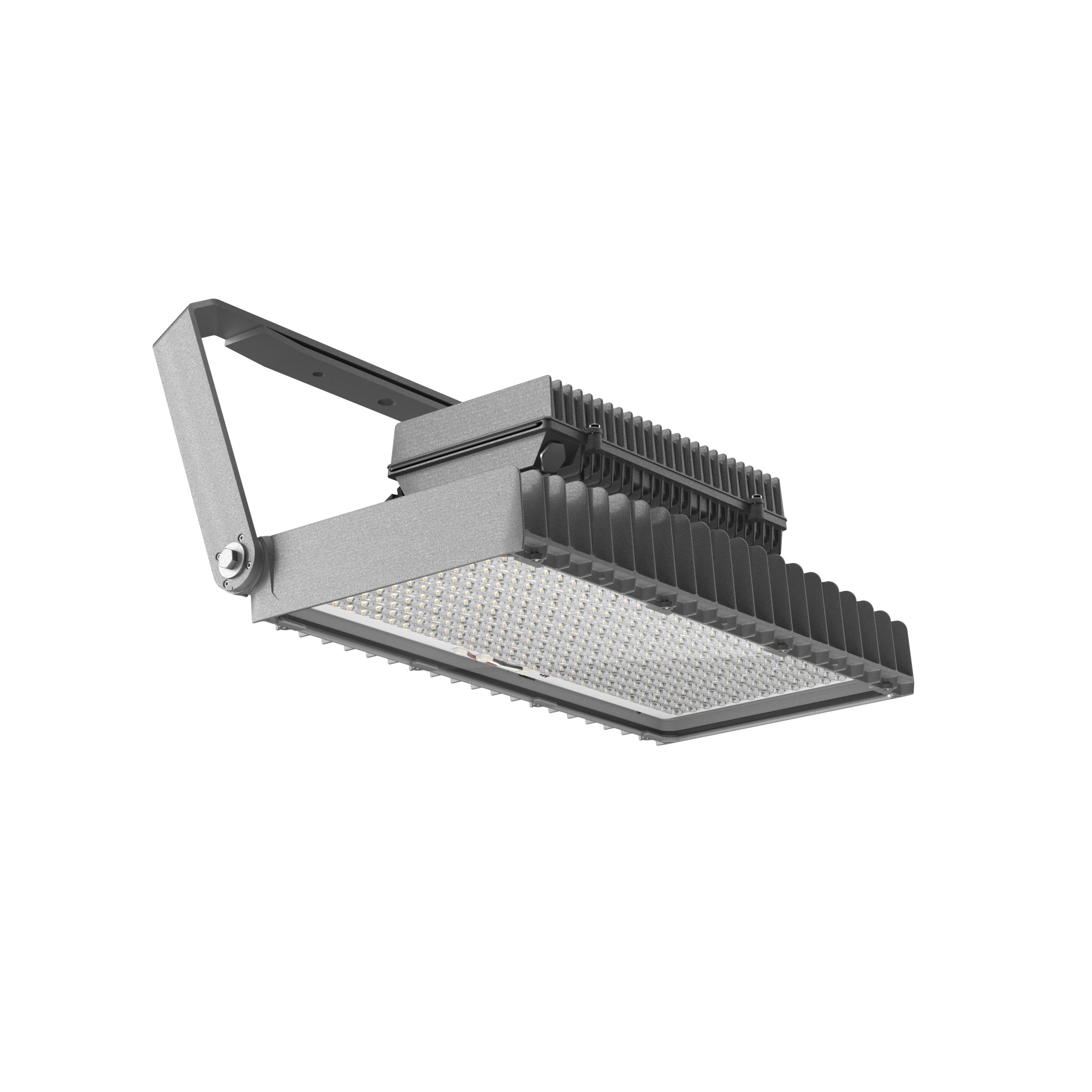

Cost-effective and optimised for airports and ports, the R–System gen3 is now equipped with brand-new lenses that were specifically designed to make it the perfect companion for its area of expertise: the E–Series. The most remarkable details include the system’s lifetime value of L90B10 > 60,000 h and high power of up to 1,543 W.
- New lens optics: E–Series with left / right optics
- Various light distributions for large-area, high bay or street lighting
- Current feed: up to 1,850 mA (–40 to +55° C)
- Max Luminous Flux [lm] 180,000
- Smart Lighting: control modules for diferent communication standards available upon request
- Electronic operating device with DALI2 or Push-Dimm
- Colour temperature: 4,000 K – 5,700 K
- Standard CRI ≥ 70, CRI ≥ 80 upon request
For more information please click here.

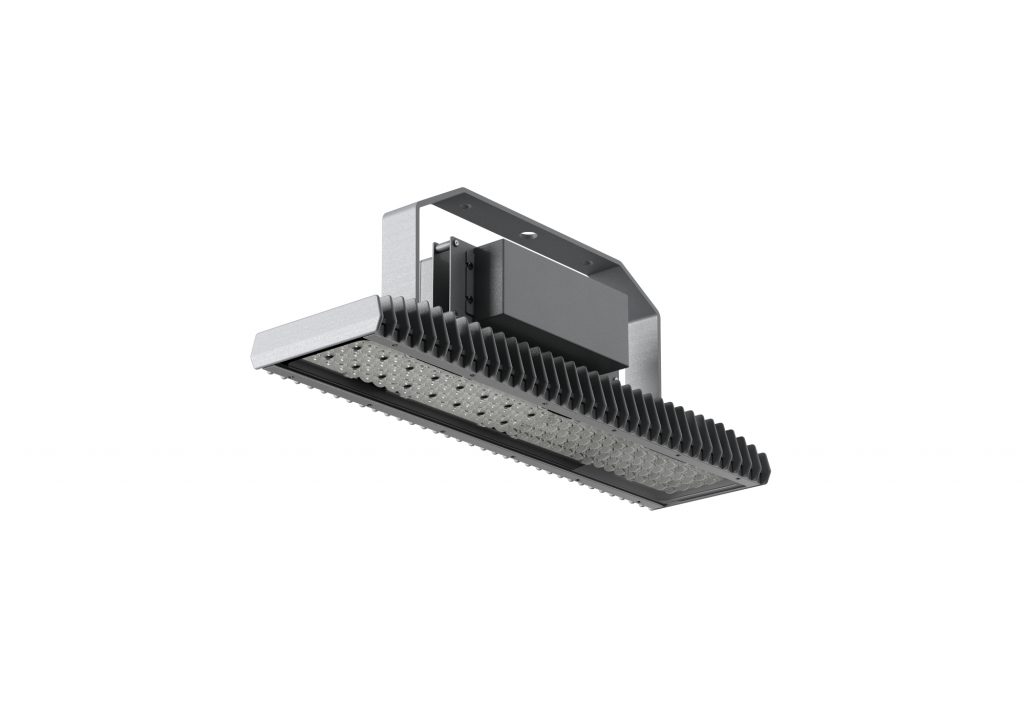

The R–System gen1 is ewo’s core floodlighting product, accommodating between one and four lighting panels, for high-bay large area floodlighting including airports, stadia, town squares and street lighting.
Each panel contains 128 individual LEDs, selectable from the ewo LED series of optics accommodating everything from spot to wide-flood lenses.
Each panel is configurable with its own DALI address, allowing for full intensity control in addition to the directionality offered by ewo’s lenses, ensuring accuracy and specificity across the entire width of the R–System apron.
The system’s die-cast aluminium body and hot-dip galvanised steel bracketing contribute to a versatile system capable of operating in the most extreme conditions, functioning between -40 °C and +55 °C.
For a full breakdown of tech specs, visit the ewo website.
LightLoggerHARDWARE AND SOFTWARE FOR LIGHTING MEASUREMENTSThis easy-to-use mobile measuring instrument increases accuracy and saves time for precise measurement of illuminance lux (lx), for airport aprons, parking spaces, ports, container terminals.HANDLING & FUNCTIONALITYThis robust product allows, fast assembly and is easily transportable, allowing georeferencing via GPS, with self-aligning measuring sensors.MEASUREMENT SPECIFICATIONSLightLogger allows measurement of single points or wider surface areas, with simultaneous measurement of up to six measuring points, and a horizontal measurement of 2 m, with vertical measurement at 2m in four directions.SOFTWAREThe system automatically records and evaluates in real time with various measurement modes, producing reports and management of measurements, and the export of data in numerous formats.Compliant with numerous regulations and standards (e.g. EASA, ICAO, EN 12464-2).
Advantages of the LED Technology by ewo:
Compared with conventional technologies, lighting systems with LED technology by ewo provide a whole range of advantages:
- a high energy-saving potential,
- significant reduction of the CO2 emissions,
- reduction of maintenance costs,
- improvement of the uniformity of illumination due to increased light direction precision,
- quick reaction times (on / off) and the omission of hot re-igniting series reactors,
- dimming from 0%-100% in real time possible,
- optimised light control and integration in light management solutions.

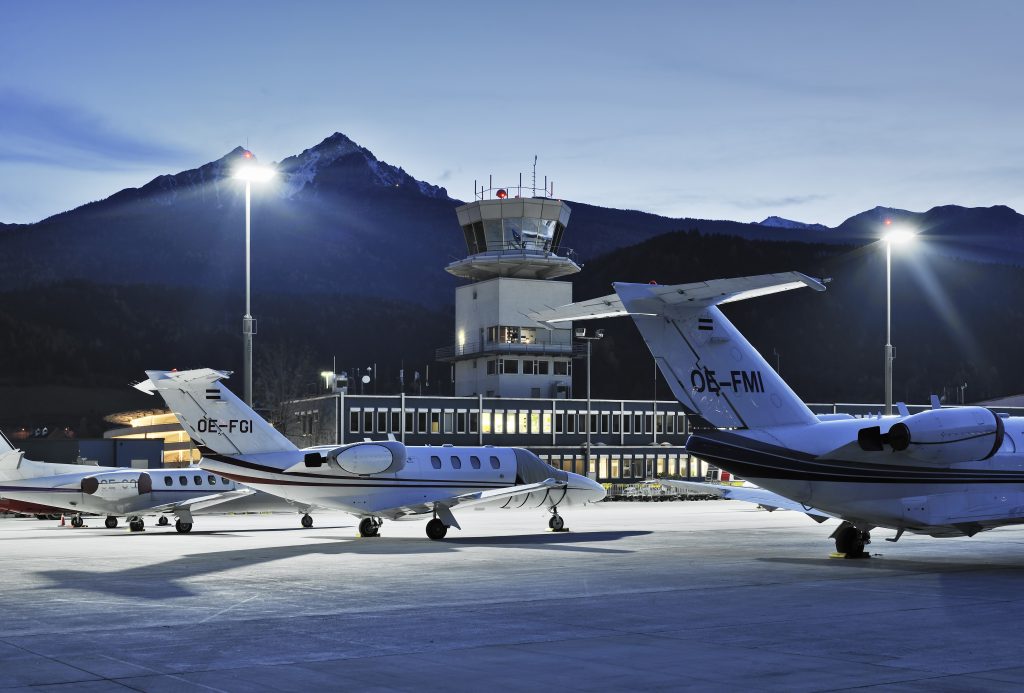

LED High Mast System
In order to light up large areas, ewo offers a highly efficient, low maintenance light system, which is based on LED technology.
With the aid of our innovative LED technology, mounting heights of 30m and more can be reached while adhering to all relevant standards and regulations.
A retrofitting of conventional lighting systems is possible in many cases: Existing, reliable structures can be used.

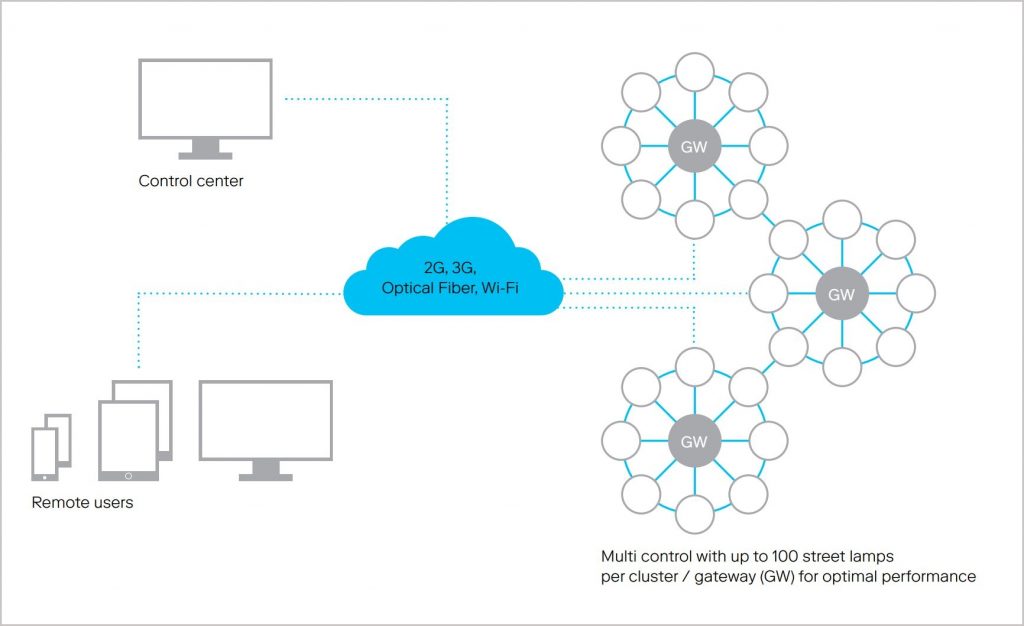

Radio and Light Control
Our products may be fitted with a system to allow for wireless data communication within your networks. The 2-way communication between floodlights and control software enables full control and monitoring of the lights and will lead to more cost-effective and responsive maintenance.

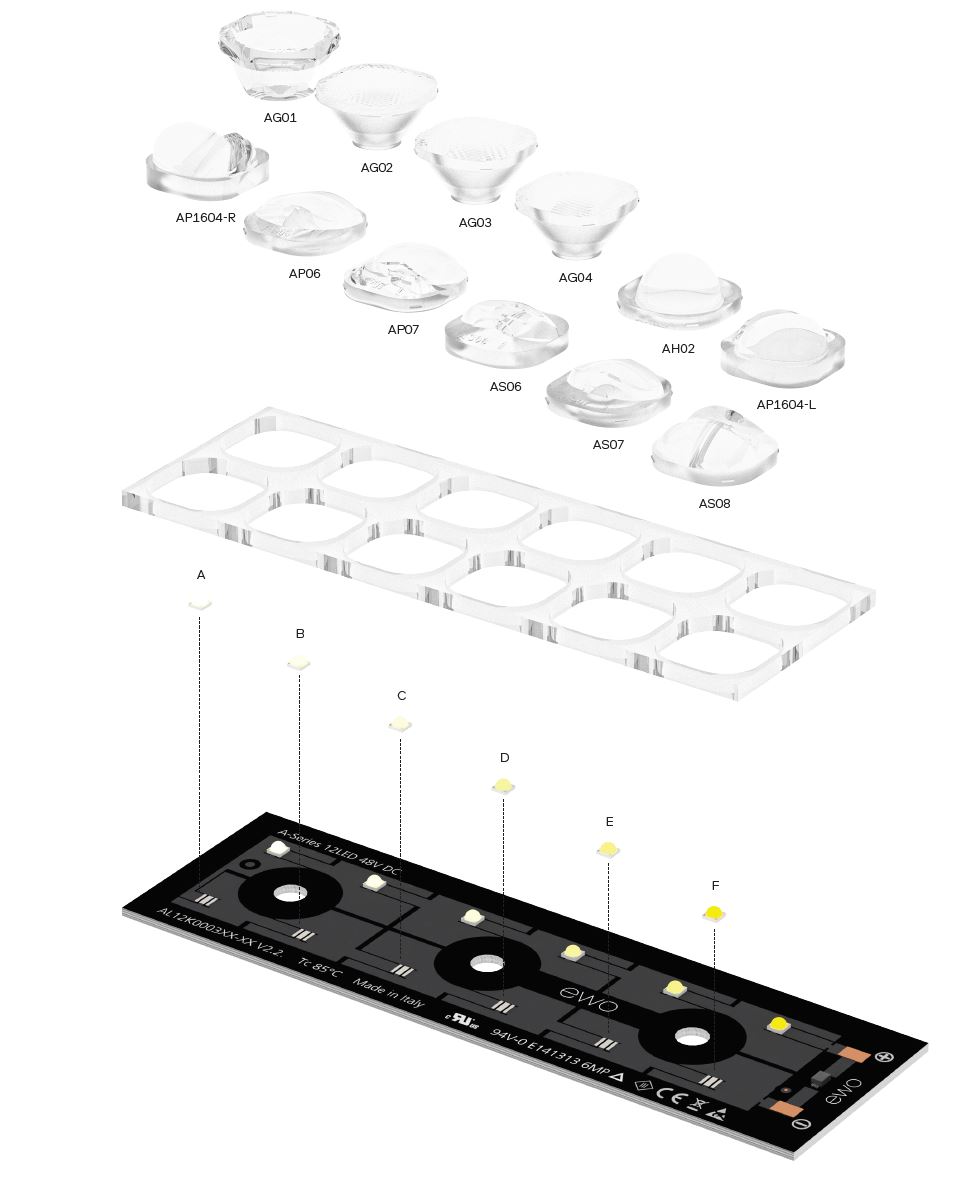

ewo LED lens technology – THE lighting unit
All ewo lighting systems are based on a standardised technological unit. This lighting unit is universally applicable for various products – from street lamps to high mast systems – and can be optimally adapted to suit the respective application through a versatile range of configuration possibilities.
The modular design makes it possible to optimally respond to the required level of illumination by simply applying the respective number of lighting units: The small steps of performance control ensure that only as much light is produced as is actually required. With regard to maintenance and repairs, the unit can be partially exchanged – an exchange of the entire system is avoided.
Depending on the lighting task at hand, various colours of light can be selected and various optical lenses can determine the distribution of light. This ensures that the lighting technology is perfectly designed to respond to the respective project requirements.
LED technology by ewo meets all requirements regarding the EN13201 standard and, subsequent to the performance of photo-biological safety tests, has been classified in accordance with EN62471 of the risk-free group.

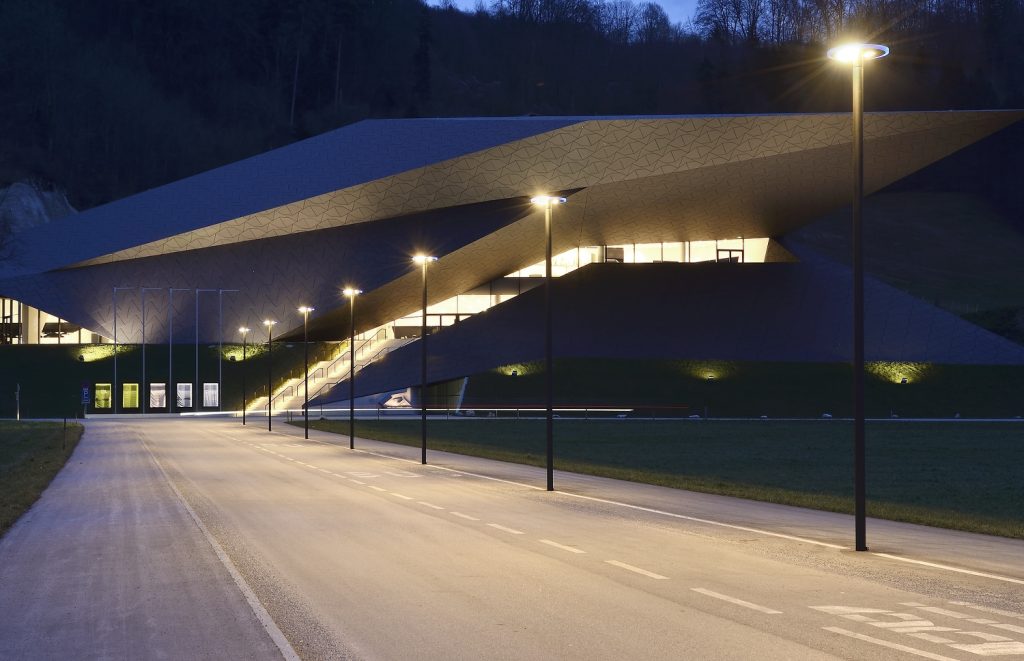

ewo’s versatility – street and surrounding areas
In addition to high mast systems, ewo also offers a series of LED solutions for streets and public areas.
With a reduced energy consumption level, the luminaires are in compliance with lighting standards ranging from EN13201 to the highest classification of ME1 and, due to the versatile configuration possibilities, they can be precisely adapted to ideally suit the respective project requirements.

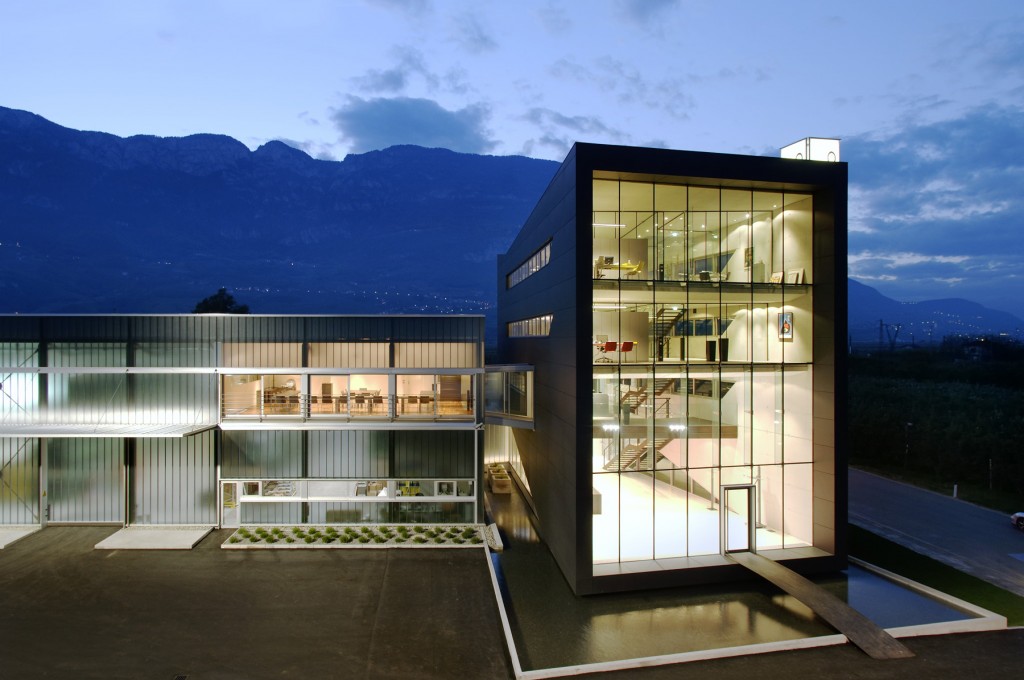

Facts about ewo
Flora Kröss and Ernst Wohlgemuth founded ewo in 1996, developing it out of a metal factory in Sarnthein/Sarentino. Now based in Cortaccia, luminaires are produced to spec for a variety of international clients specialising in the following areas:
High-performance floodlighting systems large areas, specialising in high-mast floodlighting.
Customized light in urban areas
Configurable systems within the constructed context
Precise, need-oriented solutions for safe mobility
ewoLAB initiates projects with artists, designers and architects and, in so doing, addresses the resource of light on a variety of different levels.
Headquarters: Kurtatsch/Cortaccia in the Bolzano area, South Tyrol (Italy); offices in Austria, Germany and Denmark; other European and international partners
