Advanced Visual Docking Guidance System, VDGS
Company | SIYUANS AVIATION TECH CO.,LTD |
---|---|
Product code | F-Series, S-Series, C-Series, |
Images
Design Concept of RLG VDGS
- The RLG Docking System provides relevant effective and reliable information by visual means to pilots who is parking aircraft . The RLG Docking System makes them unblocked.
- The RLG Docking System can safely direct the aircraft to park at the precise parking position at apron. RLG uses a 3-axislaser range finder, and provides docking guidance information to both pilot and co-pilot. Since the azimuth guidance information displays through an LED display, pilots can easily read this information.
- In addition, RLG can compare the aircraft approaching to the parking position stop line with all types of aircraft in the database. When an aircraft which is different with the selected aircraft type approaches the parking position stop line, the system can alert the pilot and the manager of the wrong model simultaneously.

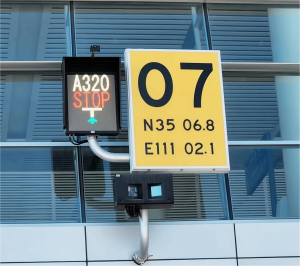

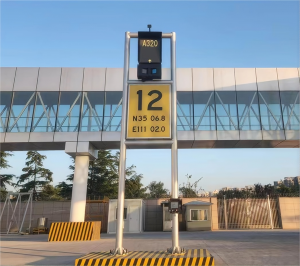

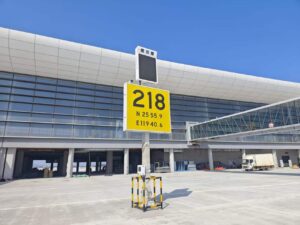

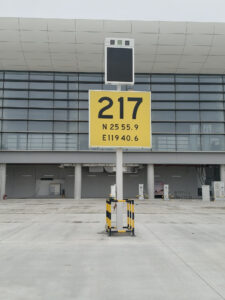

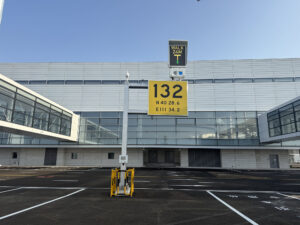

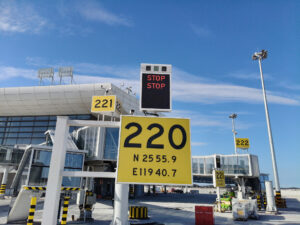

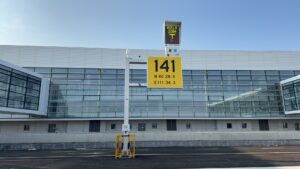

- The main display console is mounted on wall of terminal building or on a pole, The device is aligned and perpendicular to the extension line of the aircraft docking center and close to the aircraft stop line.
- Align the laser component of docking system with J-line, determine the height of the main display console, so that pilots of any type of aircraft can easily see guidance information.
- After the main display console is fixed, the system can perform laser scanning and initialization setup,to adjust the system to the optimal state and to ensure accurate docking guidance.
System Power:AC Input: 85~240V, 50Hz~60Hz, Auto Select.< 700 Watts.
Laser Category:FDA CDRH Class 1, Eye Safe, 1550nm
Horizontal Scan:±30°
Vertical Scan Angle:+8(up)/32(down)
Detect :150 meters
Range Accuracy :0.2m at 150 meters; 0.05m at <50 meters.
Azimuth Accuracy:0.2°
Stop Position Accuracy:0.1 M
Stop Position Distance:2-65 M
Display Character Height:>202mm
Display Visibility Distance:>150 M
Display Visibility angle:10º ~ 170º
No. of LED modules:16(206-2), 20 (206-2X)
Operator Display Type:Color LCD Touch Panel
Display Console Weight:App. 85kg
IP level:IP65
System Operation Temperature:-25 º C~ +55 º C
System Operation Humidity:5% – 95% (non condensing)
