GPU
Company | SIYUANS AVIATION TECH CO.,LTD |
---|---|
Product code | Energy-storage aircraft ground power unit: AGSP-ASS-0901,AGSP-ASS-180H-S Energy storage aircraft ground power unit(vehicle): GSP-ASS-090H-M(EV) Energy storage aircraft ground power unit(towed): AGSP-ASS-090H-M,AGSP-ASS-180H-M Intelligent energy manager: MS-A-SPA-150/60-2 Aircraft ground static power unit: AGSP-ASS-090H-H,AGSP-ASS-090H-HU Mobile coiler: AGPW-A-45-M Fixed Coiler: AGPW-A-25-F |
Images
Civil Aviation solutions
Based on the green and low-carbon philosophy, innovative energy storage equipment and low-voltage side grid design are used to address the prominent source-load conflict at the airport, To build an aircraft-oriented safe, green and efficient smart energy security system.
- Extensive offerings in a wide range of scenarios;
- Low capital investment for peak load shaving;
- Long-lasting test for safe and reliable operation;
- Low operating cost for peak load shifting
- Green and zero carbon for carbon neutrality goals;
- Smart energy sources for extended functions;

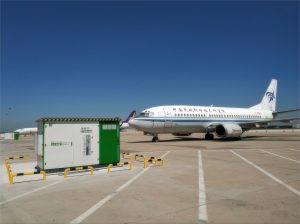

Energy-storage aircraft ground power unit
1.AGSP-ASS-090H1
Rated capacity:90kVA
Input voltage:320-440V
Rated input frequency:50Hz土5%
Rated output voltage:115V/200V
Energy storage capacity:0-170kWh(Configurable)
Overload:125%.600s;150%,60s;200%.30s;300%.1s
Off grid runtime:2-5h
Charging time:≤2.5h, 80% or more in 1.5 hours
Rated charging power:45kW
Battery type:Lead carbon/lead acid
Harmonic content:<3%
Crest factor:1.414士3%
Phase shift:119.3~121.5°
Temperature adaptability:-40C~60C
Noise:<52dB
Protection category:IP55
Dimension:3530X1746X2030
Weight:≤7600kg
2.AGSP-ASS-180H-S
Rated capacity:180kVA
Input voltage:320-440V
Rated input frequency:50Hz土5%
Rated output voltage:115V/200V
Energy storage capacity:140-177kWh
Overload:125%.600s;150%,60s;200%.30s;300%.1s
Off grid runtime:2-5h
Charging time:≤2.5h, 80% or more in 1.5 hours
Rated charging power:45kW
Battery type:Lead carbon/lead acid
Harmonic content:<3%
Crest factor:1.414士3%
Phase shift:119.3~121.5°
Temperature adaptability:-40C~60C
Noise:<52dB
Protection category:IP55
Dimension:3368X1760X2150
Weight:≤8000kg

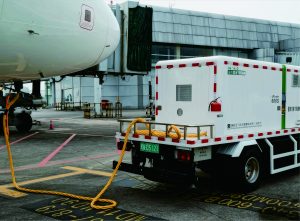

Energy storage aircraft ground power unit(vehicle)
1.AGSP-ASS-090H-M(EV)
Rated voltage:380V/400V+15%
THDI:<3%
Rated capacity:90kVA
Rated voltage:3*115V/200V
Overload:125%.600s;150%.60s;200%.30s;300%.10s;400%.1s
Off-grid runtime:≥8h (class C aircraft, separate opration)
Charging time:≤2.5h, 80% or more in 1.5 hours
Rated charging power:90kW
Battery type:Lithium iron phosphate
Charging method:Charging pile, self-contained charging
Chassis type:Full electric vehicle type
Range:435km
Battery capacity:107kWh
Charging power:s85kW
Charging time:<1.5h
Battery type:Lithium iron phosphate
Operating temperature:-40*C~60C
Protection category:IP55
Noise:≤60c=dB@1m
2.AGSP-ASS-090H-M
Rated voltage:380V/400V+15%
THDI:<3%
Rated capacity:90kVA
Rated voltage:3*115V/200V
Overload:125%.600s;150%.60s;200%.30s;300%.10s;400%.1s
Off-grid runtime:≥8h (class C aircraft, separate opration)
Charging time:≤2.5h, 80% or more in 1.5 hours
Rated charging power:90kW
Battery type:Lithium iron phosphate
Charging method:Charging pile, self-contained charging
Chassis type:Towed
Operating temperature:-40*C~60C
Protection category:IP55
Noise:≤60c=dB@1m
3.AGSP-ASS-180H-M
Rated voltage:380V/400V+15%
THDI:<3%
Rated capacity:180kVA
Rated voltage:3*115V/200V
Overload:125%.600s;150%.60s;200%.30s;300%.10s;400%.1s
Off-grid runtime:≥8h (class C aircraft, separate opration)
Charging time:≤2.5h, 80% or more in 1.5 hours
Rated charging power:90kW
Battery type:Lithium iron phosphate
Charging method:Charging pile, self-contained charging
Chassis type:Towed
Operating temperature:-40*C~60C
Protection category:IP55
Noise:≤60c=dB@1m

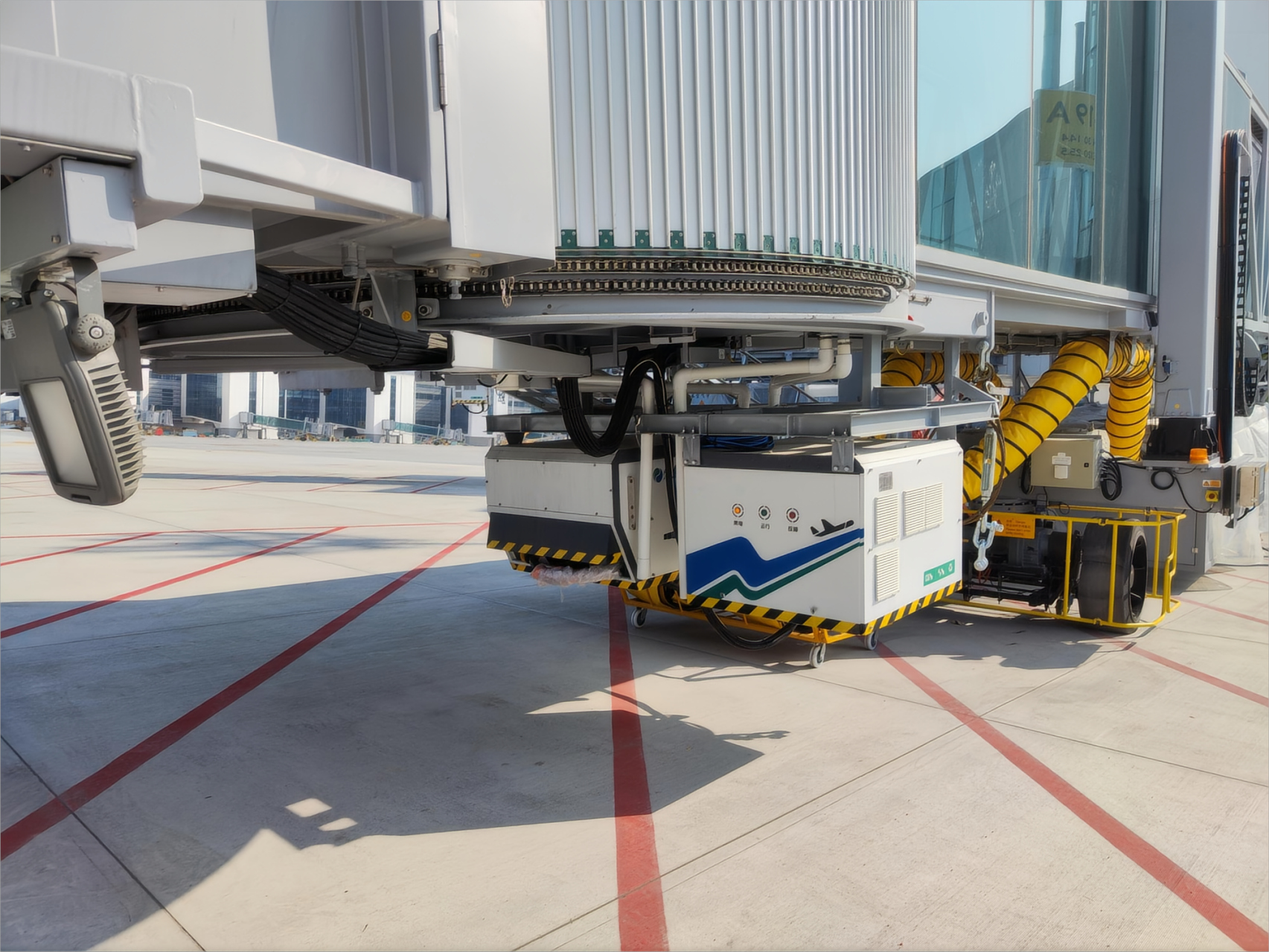

Aircraft ground static power unit
1.AGSP-ASS-090H-H
Rated capacity:90kVA
Input voltage range:90~460V
Uninterrupted power supply duration:0
Input frequency:50/60土5Hz
Voltage distortion factor:<1.3%
Phase shift:119.9°~120.1°
Voltage crest factor:1.42
Voltage modulation amplitude:0.57V
Overload:125%.600s;150%.60s;200%.30s;300%.10s;400%.1s
Voltage drop compensation:80m
Type of mounting:Floor mounted, suspended
Dimension:970X1050X770
Weight:500kg
Operating temperature:-40°C~+60°C
Noise grade:<63dB (A)
Protection category:IP55
2.AGSP-ASS-090H-HU
Rated capacity:90kVA
Input voltage range0~460V
Uninterrupted power supply duration:10s
Input frequency:50/60土5Hz
Voltage distortion factor:<1.3%
Phase shift:119.9°~120.1°
Voltage crest factor:1.42
Voltage modulation amplitude:0.57V
Overload:125%.600s;150%.60s;200%.30s;300%.10s;400%.1s
Voltage drop compensation:80m
Type of mounting:Floor mounted, suspended
Dimension:1050X1700X2041
Weight:1200kg
Operating temperature:-40°C~+60°C
Noise grade:<63dB (A)
Protection category:IP55
Mobile coiler:AGPW-A-45-M
Capacity:
CPU rated capacity:90kVA
Power supply:
Voltage / Frequency:380VAC、50Hz/60Hz、4A,220VAC、50Hz/60Hz、6.8A
Cables:
Retract ability method:Long cable motorized retract ability
Maximum output cable length:45m(Configurable)
Major protection:45m(Configurable),Corridor interlock protection,Cables,Major protection,Motor overload,Cable jam,Emergency stop,Parking mechanical brake
Environment:
Protection category:IP 55 (control part)
Operating temperature:-40C-+60C
Relative Humidity:10%~100%
Structure:
Basic dimension LxDxH(mm):1500x1030x1500
Weight:650Kg(45m cable included)

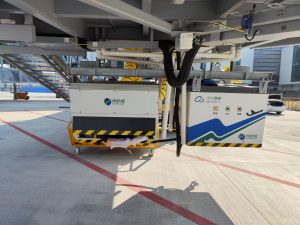

Fixed Coiler :AGPW-A-25-F
Capacity:
CPU rated capacity:90kVA
Power supply:
Voltage/Frequency:380VAC、50Hz/60Hz、5.5A
Cables:
Retract ability method:Electric retract ability
Maximum out put cable length:28m
Major protection:Corridor interlock protection,Motor overload,Cable jam,Emergency stop
Environment:
Protection category:IP55 (control part)
Operating temperature:-40C-+60°C
Relative Humidity:10%~100%
Structure:
Basic dimension LxDxH(mm):1050x780x1200
Weight:500Kg(25m cable included)
