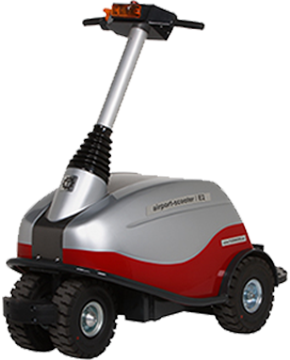

Airport-Scooter to collect luggage carts
| Company | Tünkers Maschinenbau GmbH |
|---|---|
| Product code | Airport-scooter E2 |
Images
Description
Specifications

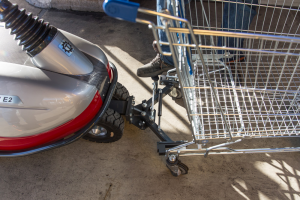

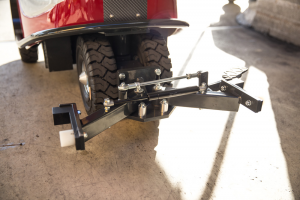

The airport-scooter is a modern transport system designed to efficiently and cost-effectively collect luggage carts which flight passengers leave behind everywhere on the airport terrain. The luggage carts can be pushed or pulled with the help of a special adapter.

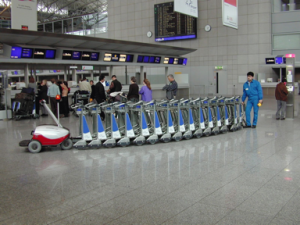

The person in charge, is working beside of the front luggage cart, steers the pushing airport scooter with the help of a cable-connected remote control and they are able to steer the line of luggage carts even in narrow curves.
- Three-wheel design
- Maintenance-free batteries
- Built-in charger
- Heavy duty controls
- Hand grip for variable speed and on-off control
- High torque 1000 watt motor with integrated
- Brake differential gearbox
- Warning flash light, emergency switch, horn, key switch
- Easy service access to all component groups
- Radio-controlled operation
Technical Specifications
- Length including Cart Hitch – 1640 mm
- Width – 750 mm
- Height, including Warning Light – 1235 mm
- Weight – 281 kg
- Wheelbase – 690 mm
- Turning Radius – 1940 mm
- Motor with permanent Magnetic Brake – 1000 W / 24 V DC
- Top Speed – 6 km/h
- Batteries – 4 x 6 V / 180 A h
- Battery Charger – 24 V / 30 A
- Charge Current – 230 V
- Color – Choice
