Tünkers Maschinenbau GmbH

Airport Electric Scooter to Collect Luggage Carts. Pulling or Pushing Trolleys with Remote Control

As a German family-owned enterprise in second generation, Tünkers Maschinenbau GmbH have developed from technical engineers into an international supplier of automation technology for serial production. We share the enthusiasm for technology with our worldwide staff of 500, never failing to strive for the better more innovative solution. This is another reason why our products are not commercial goods but “home-grown products“, invented, constructed, produced and marketed by us – always in a close dialog with our customers, OEMs, plant engineers and engineering offices.

We are specialists in e-mobility and logistic e-vehicles such as Airport Electric Scooters, logistic-scooters, automated guided vehicles (AGVs) and electric trikes (MoVis) for everyone.

Company Profile

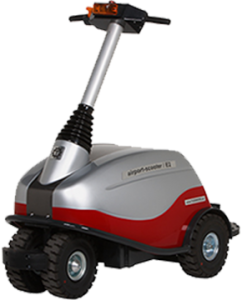

  • Stand-on Electric Airport Scooters by Tunkers

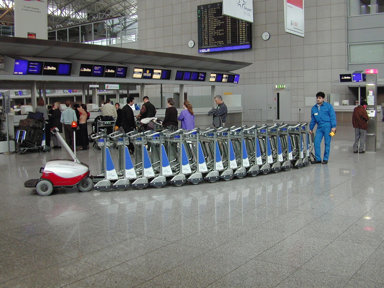

    Airport-Scooter/Market-Scooter is a modern transport system for efficient and cost-saving collecting and transporting of luggage trolleys. The trolleys are gathered by one single staff member to form one line and pushed, for instance, by means of a special adaptor.

    The operator then controls the pushing vehicle via remote control from the first trolley in line and can also manoeuvre the line of trolleys around tight corners. Naturally, trolleys can also be coupled and pulled.

    • Trike concept
    • Maintenance-free batteries
    • Built-in charger
    • Sturdy electronics with thumb push button for variable forward and backward speeds
    • High-performance 1000 Watt engine with built-in brake, differential
    • Flashing warning light, emergency-off switch, horn, safety horn, key switch
    • All components are easily accessible (for service etc.)
    • Radio remote control
    • Optional customer specific push-/pull adapter

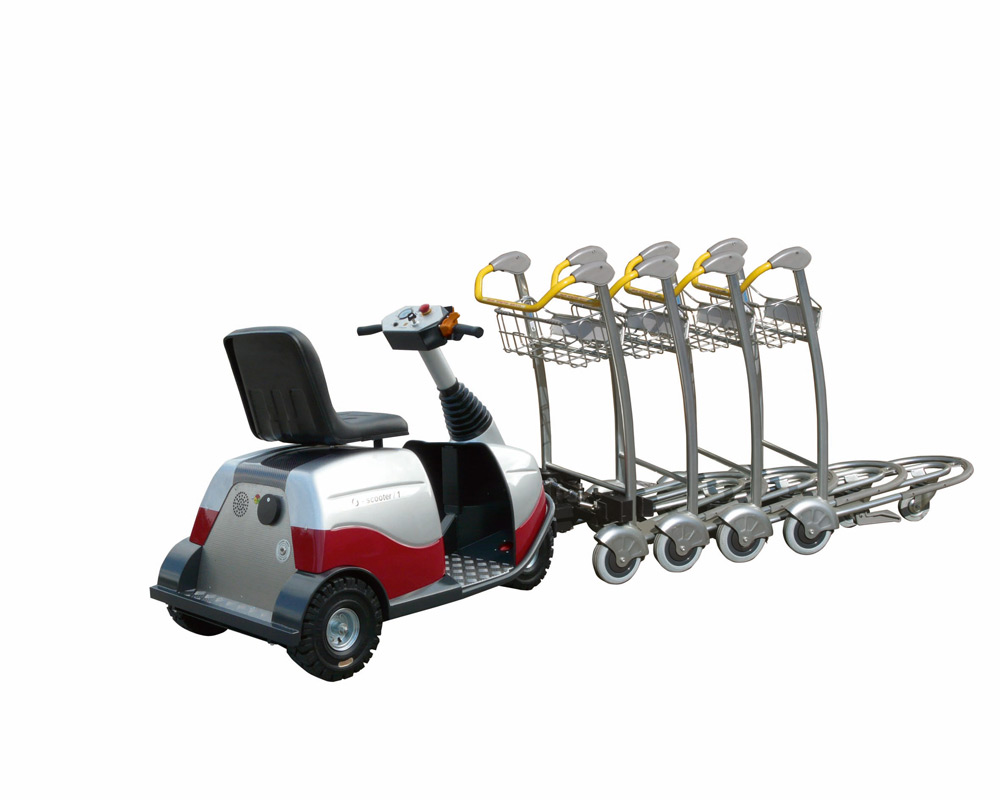

  • Ride-on Electric Scooters

    Ride-on electric scooter to push or draw shopping carts or trolleys with special adapter. The ride-on scooter serves to push and/or pull rolling load. Luggage and shopping trolleys, and rolling containers can be collected in a labour-saving way with a corresponding push adapter.

    The operator can steer the head of the line of trolleys around tights bends and use the remote control to provide themselves conveniently with thrust for forward movement. Due to its compact design and the comfortable seat, the ride-on scooter is also suited for transporting operations in relatively narrow passageways and lifts.

    • Trike concept
    • Maintenance-free batteries
    • Built-in charger
    • Sturdy electronics with thumb push button for variable forward and backward speeds
    • High-performance 1000 Watt engine with built-in brake, differential
    • emergency-off switch, horn, safety horn, key switch
    • Comfort seat
    • All components are easily accessible (for service etc.)

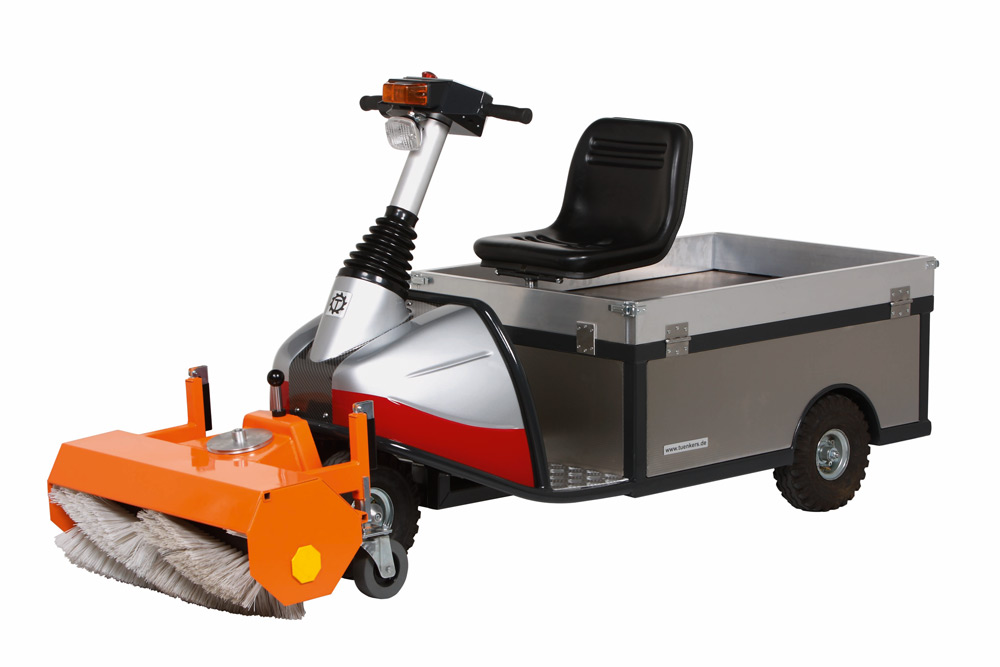

  • Electric Minitransporter for In-company Transport

    The Ride-on Electric Minitransporter scooter is able to push or pull a trailer or to transport loads up to 600 KG.

    Features

    • Trike concept
    • Maintenance-free batteries
    • Built-in charger
    • Sturdy electronics with handlebar for variable forward and backward speeds
    • High-performance 1000 Watt engine with built-in brake, differential
    • emergency-off switch, horn, safety horn, key switch
    • All components are easily accessible (for service etc.)
    • Load space (Standard)1050 mm x 710 mm

  • Electric-Trike for in-door transport of people

    Electric 3-wheeler for airport staff or passengers to move around inside and outside the airport. The environmentally friendly downtown trike scooter, particularly suited for rental companies, inner company and individual use. Simple and intuitive handling, safe and stable position, sturdy structure. Brakes like a bike, excellent road holding, front-wheel drive.

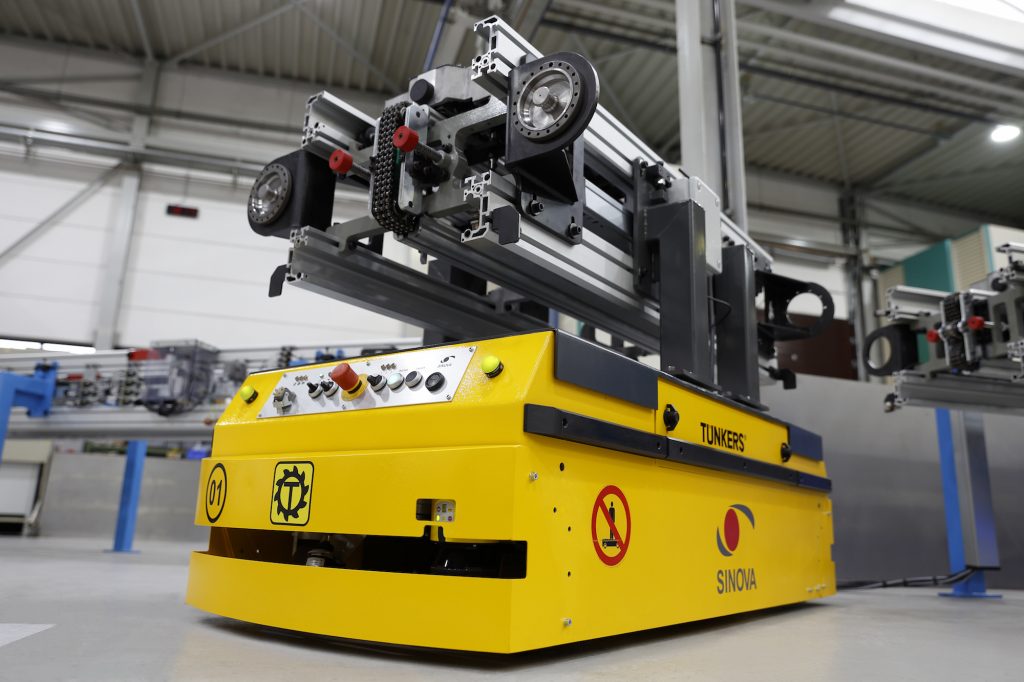

  • Automated Guided Vehicles (AGV)

    The demand for flexibility is continuously increasing. Therefore, the AGV business unit was established in 2016. This business unit closely cooperates with SINOVA, the market leader of Automatic Guided Vehicles (AGVs) in South America.

    TÜNKERS AGVs are complementing now the automation modul “Transporting“, which is one of the 9 modules of automation in the TÜNKERS product range.

    Features

    • Traction >10t
    • Payload >2t
    • Operating time >8h
    • Controlled by industry PC
    • Robust design
    • Safety scanner
    • Speed >1m/s
    • Positioning <+/- 3mm
    • Fine positioning +/- 0.1mm

Products

Airport-Scooter to collect luggage carts

Airport-Scooter to collect luggage carts

The airport-scooter is a modern transport system designed to efficiently and cost-effectively collect luggage carts which flight passengers leave behind everywhere on the airport terrain. The luggage carts can be pushed or pulled with the …
