Battery charging container - TRAVI CON MCS
Company | Traviation GSE GmbH |
---|---|
Product code | TRAVi Con MCS |
Images
Steel container fully welded, type MCS 8 or MCS 10

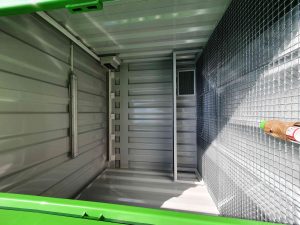

The TRAVI MSC containers are perfectly designed to meet the requirements for storing and charging batteries. A fully welded steel tub is integrated into the floor assembly, covered with galvanized gratings. The ventilation of the battery compartment happens in accordance with DIN EN IEC 62485-2 VDE0510-485-2: 2019-04.
- type MCS 8: ca. 2,438 x 2,200 x 2,250 mm (l x w x h)
- type MCS 10: ca. 2,991 x 2,438 x 2,591 mm (l x w x h)

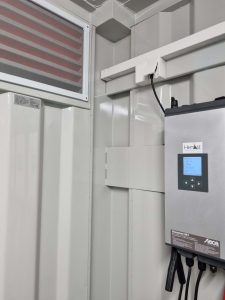

- 2 ventilation openings, 300 x 500 mm, frame made of sturdy square tube with fixed slats and fly screen (calculation of therequired ventilation of a battery room according to DIN EN IEC62485-2 VDE0510-485-2: 2019-04)
- personnel door ca. 1,000 x 2,000 mm, with rain strip, seal,handle set, profile cylinder lock
- electrical installation 400 V: e. input 400 V 32 A, residual-current
- device, 1 light switch, 1 linear luminaire:
- type MCS 8: 10 sockets 230 V 16 A (evenly distributed over
- shelf, 1 socket next to light switch), 5 fuses
- type MCS 10: 21 sockets 230 V 16 A (7 + 13 evenly distributed
- over shelf, 1 socket next to light switch), 8 fuses

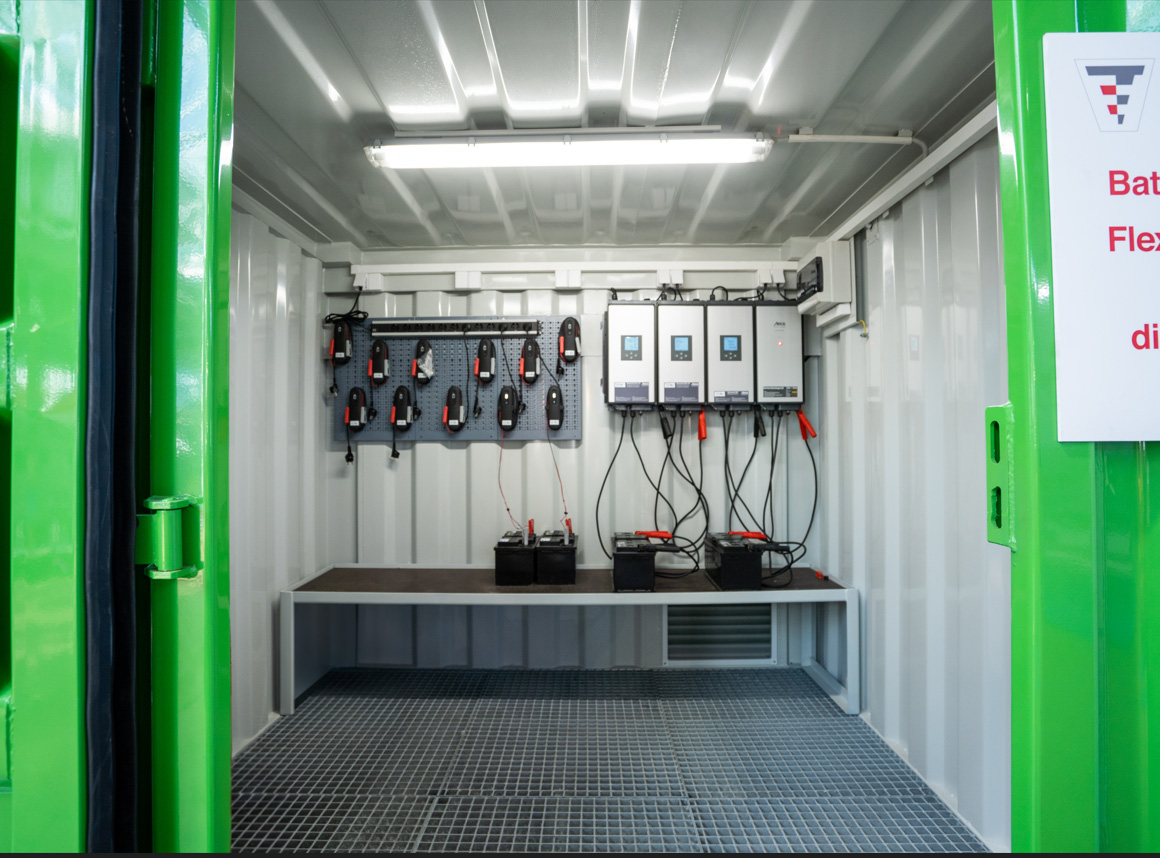

- 1 sturdy fixed heavy duty shelf / 2 sturdy fixed heavy duty shelving with 1 rack, resilience up to 300 kg / shelf
- type MCS 8: 1 welded metal sheet, 3 mm thick, for holding up
- to 10 Stecamat chargers for lead-acid batteries
- type MCS 10: 2 welded metal sheet, 3 mm thick, for holding
- up to 20 Stecamat chargers for lead-acid batteries
- containers primed in- / outside (cathodic electrodeposition),
- in- / outside painted in RAL (powder coating)
- optional climate isolated
