Hand-guided apron trolley

Description
Specifications

Ground support equipment close at hand and safely tucked away.

Improve the safety and efficiency of apron handling.
The ground support equipment for apron handling finally finds a place on the travi ML hand-guided apron trolley. Chocks, traffic cones, barrier tapes and FOD containers are always close at hand and quickly tucked away after use and thus ready for the next usage.

Innovative braking technology ensures safe handling.
A decisive advantage of this apron trolley is the purely mechanical and maintenance-free brake. The brake has been tested specifically for use on the apron. Justifiably, no wearing parts such as springs or gas pressure are used.
This apron trolley ensure more safety on the apron, support work safety and improve the efficiency of apron handling.

Thanks to sophisticated technology, Traviation apron trolleys are easy to handle, stable and equipped with robust undercarriage and innovative braking technology.

Especially at different temperatures in all-weather use on the apron, this design has clear benefits: spring can tear our or wear out in the long run, gas pressure can be different depending on the temperature and must then be readjusted.

Lots of possibilities

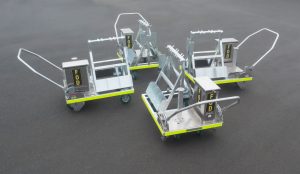

The Traviation apron trolleys are available in two sizes, travi ML and travi XL, depending on needs.
In addition, the apron trolleys can be individually extended, depending on requirements. A stable, specially developed mounting plate makes it easy to add component parts such as blocking system or additional loads as ladders.

  • Travi ML dimension (L x B x H): 1.330 x 890 x 1.160 mm
  • Travi XL  dimensión (L x B x H): 1.550 x 890 x 1.160 mm
  • With a length of only 1.33 meters, the travi ML is compact and handy for daily employment on the apron. Robustly designed, the travi ML itself weights only 120 kilogram, but with a payload of 150 kilogram it can take plenty of ground support equipment. Castors and the height-adjustable handle with brake nevertheless ensure optimum mobility on the apron even in one-man operation.
    parts:

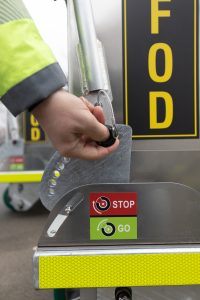

  1. handle with brake

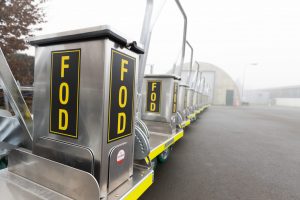

  2. FOD container for garbage, small parts
  3. bracket for traffic cones
  4. socket pin
  5. height setting handle

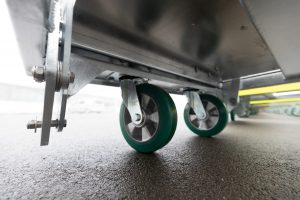

  6. castors
  7. wheels
  8. bracket for chocks (ML 6 pcs / XL 8 pcs)
  9. A-framework
  10. bracket for ladder
  11. hooks
  12. fixation handle
