Boarding Post
| Company | CAMBAUM |
|---|---|
| Product code | ARP-CB21-02 |
Images
For easy boarding pass control

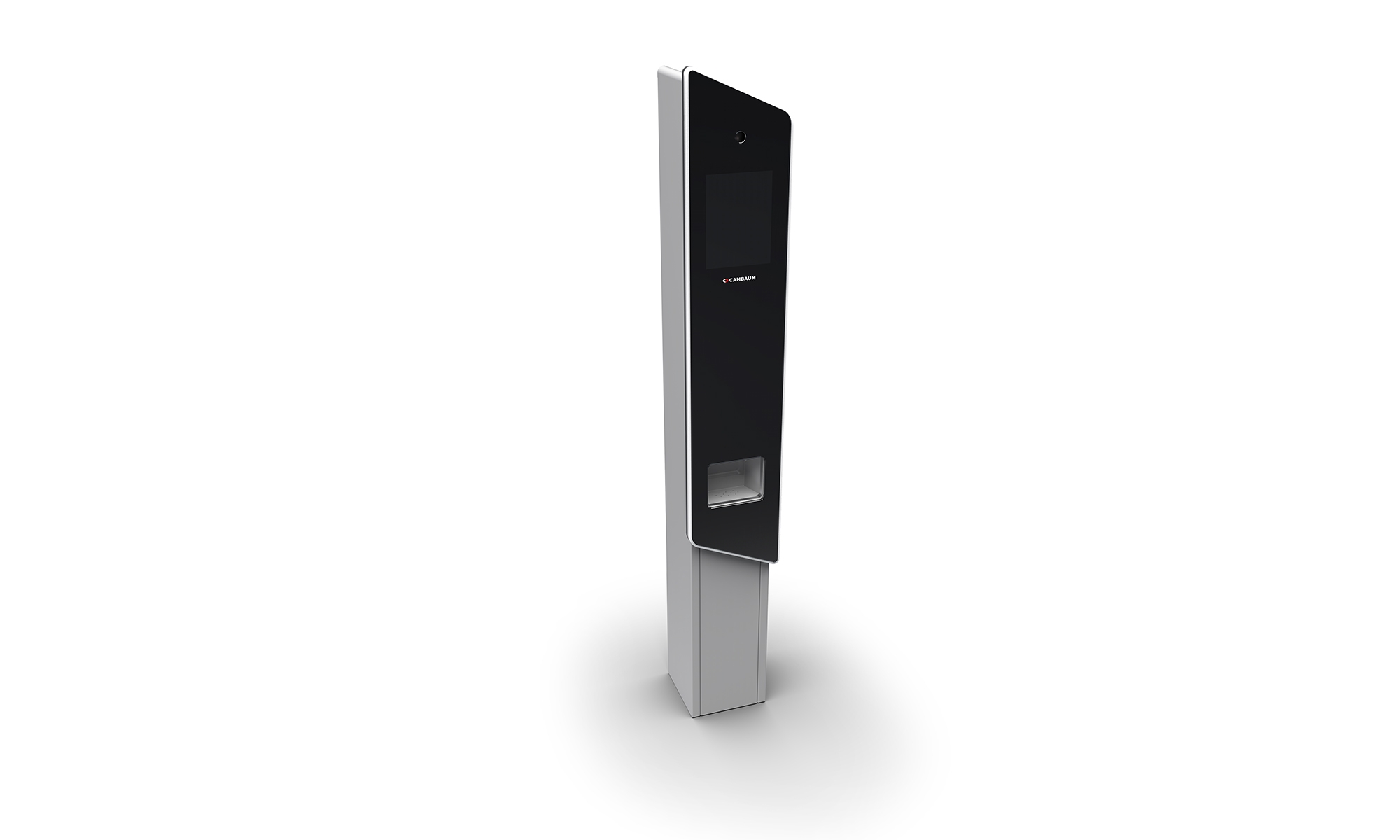

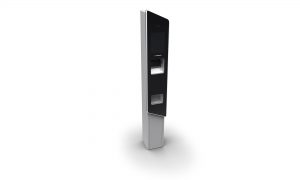

The Boarding Post ARP-CB21-02 developed by Cambaum is primarily used for boarding pass control. It can be connected to an existing gate, automatic door or other physical access control at any time. Use in railway stations or metros and other non-automated entrances is also possible.
Through various extensions, the post can also control more complex processes and thus efficiently influence the passenger flow.
The post is equipped with the following modules:
- Passport reader and/or ID card reader
- Boarding card reader
- Display
- User guidance through adaptable lighting concept
Areas of application
Boarding pass control in airports, ticket control in railway stations, metro, etc.
The Access Release Post ARP-CB21-02 is made of high-strength, corrosion-free stainless steel and thus offers the best surface to avoid scratches and wear, even with intensive use. At the same time, it has a carbon footprint that is up to ten times better than that of aluminium and thus makes a major contribution to environmentally friendly equipment.
Technical Details
Housing
Stainless steel polished powder-coated
Lighting
Circumferential LED display red/green for user guidance and for operational readiness of the unit.
Front
Glass panel, ESG 6 mm, with integrated display.
Display size:
10,4″
Camera
Infrared camera for body temperature measurement
Camera module
RGB camera module for recognition of mouth and nose protection and optional face recognition
Disinfection Dispenser
Touchless, with integrated sensor technology
Function
The user positions himself in front of the column, looks into the camera.
The boarding pass is scanned and the passport/ID card is checked. If both are positive, the control person lets the user pass. If an optional facial recognition system is also integrated, this data is also checked and if the result is positive, the user can pass.
With the optional integrated contactless hand disinfection dispenser, it also supports companies and operators in complying with the required hygiene measures.
