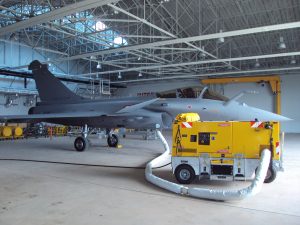

CF33 - Mobile electrical driven Air Conditioning Unit for military fighter aircraft
| Company | GUINAULT S.A |
|---|---|
| Product code | CF33 |
Images
GUINAULT have used their historical expertise in cooling systems and military electronic aircraft ground support equipment to design a unique compact Air Conditioing unit for fighter aircraft.
GUINAULT claims the LOWEST TCO (Total Cost of Ownership) through high reliability and highest efficiency in exteme condition:
- VARIABLE FREQUENCY DRIVE CONDENSOR AND VENTILATOR:
The unit is fitted with Variable Frequency Drive to adapt the airflow and airpressure to the exact aircraft requirement. The condensor ventilators are fitted as well with VFD to ensure the highest possible efficiency, in all outside temperature conditions.
- ELECTRONIC EXPANDER ensures high reliability and efficiency, whatever the outside conditions are; the unit is fitted with a smart defrosting device, controlled by PLC.
- AIR/AIR INTERCOOLER to reduce the power consumption.
- AIR PORTABILITY:
The unit is certified for air transportation in military cargo aircraft, and under helicopter (naturally balanced); the size of the unit (104 in x 84 in) fit to international standard cargo pallet.
- CONFORTABLE OPERATION:
The reduced height of the unit (1,60m / 5,16 feet) ensures a good manoeuvrability and visibility in congested area.
- EXTREME WEATHER CONDITIONS:
Certified for operation from – 32° C to + 55° C (- 25,6° F to 131° F). Certified in sand-wind, heavy rain – the unit is fitted with heavy duty covers to allow storage outside in extreme conditions.
- EMC MIL STD COMPLIANT:
The unit is certified per MIL-STD-461 at highest level.
- ELECTRICAL DRIVE (60 kVA) available in option diesel driven.
- PLC CONTROL with data logging for user friendly troubleshooting
INPUT:
- Power supply: 3 phases 400V 50Hz / 440V 60Hz, ±10% between phase and neutral
- Maximum input power: 60kW
- Cable: 15 meters without plug
AIR OUTLET:
- Airflow: >18kg/min (40 PPM)
- Air pressure: 550mbar gauge (8 PSIG) from -32°Cto +55°C (-25,6°F to +131°F) at sea level
- Number of outlets: 1
- Air outlet temperature: + 10° C ± 2° C (+ 50° F ± 3,6° C)
- Cooling power: 50Kw
- Temperature control: ± 1° C at hose end
ANTI CONDENSATION MODE:
- Output flow: > 18 kg / min (40ppm) under 550 mBar gauge
- Output temperature: + 28° C ± 2° C (+ 82.4 ° F ± 3,6° C)
DIMENSIONS AND WEIGHT:
- Dimensions: 2800 x 2130 x 1600 mm
- Weight: 2905 kg
COOLING SYSTEM:
- Compressor: Hermetic compact reciprocating (piston) compressor
- Refrigerant: R134A
- Condenser: Top mounted condenser made with copper tubes and aluminium fins. Variable speed fans (VFD controlled)
- Expansion: Electronically regulated expansion valves
- Evaporator: Copper tubes and aluminium fins with automatic defrosting system
- Main blower: Roots compressor driven by variable speed (VFD controlled)
