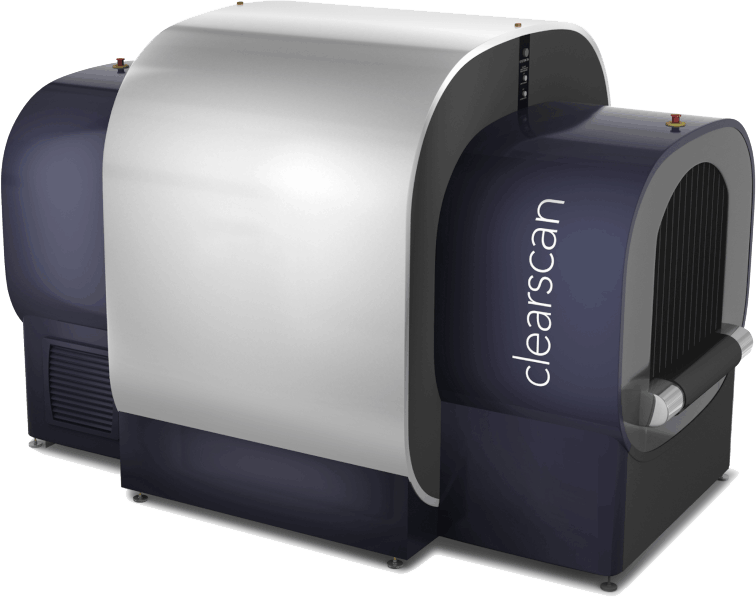

ClearScan
| Company | Analogic |
|---|
Images
ClearScan cabin baggage explosive detection system (EDS) combines dual-energy computed tomography (CT) technology and advanced explosives detection algorithms to detect solid, liquid, and sheet explosives as well as smaller emerging threats such as home-made explosives (HMEs), whether in the bag or in a laptop – all at a low false alarm rate.
When integrated with third party algorithms for prohibited items detection, ClearScan’s capabilities are further positioned to meet current and future detection standards. Passengers also enjoy a better experience through reduced divest requirements.
DIMENSIONS:-
HEIGHT:
1.5 m (59.0”)
WIDTH:
1.48 m (58.4”)
LENGTH:
2.4 m (94.8”)
TUNNEL OPENING:
615 mm (24.2”) wide x
436 mm (17.2”) high min
597 mm (23.5”) high max
WEIGHT:
1,932 kg (4,259 lbs)
OPERATIONAL STANDARDS:
CDRH 21 CFR 1020.40 Cabinet X-ray Systems and maximum leakage radiation less than 0.1mR/hr (1μ Sv/hr)
NRTL certified to ANSI/UL 61010-1, CAN/ CSA 22.2 No.61010-1 and CE compliant
