Pro:Vision 3
| Company | Analogic |
|---|
Images

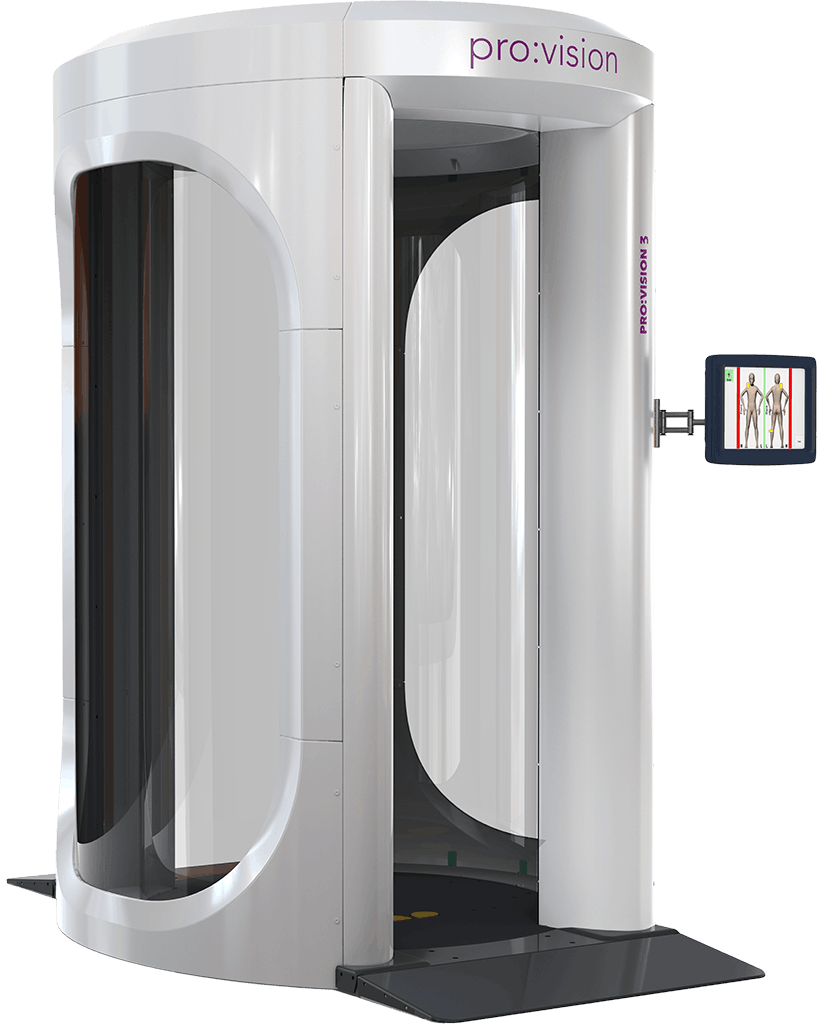

Pro:Vision® 3 is an advanced people screener designed to meet current and future airport security needs. Its wideband-frequency technology delivers superior levels of detection and throughput while achieving industry-leading low false-alarm rates.
Using safe millimetre-wave (MMW) technology, the system quickly screens passengers and personnel, automatically detecting concealed objects made from a broad range of materials, both metallic and non-metallic.
The wideband antenna design, improved radio-frequency boards and deep learning AI-based algorithms have achieved throughput rates of more than 400 people per hour.
Specifications:
Inner walls: Clear polycarbonate 3 mm
Outer walls: PVC and clear polycarbonate 4.5 mm
Height: 2.36 m (93″)
Width: 1.5 m (59″)
Depth*: 2.27 m (89.3″ – with ramps)
Weight: 681 kg (1500 lbs)
Power: 100 VAC – 240 VAC / 1900 Watts Peak 50 hz – 60 hz
Operating Temperature: 0° C to 40° C (32° F to 104° F)
Humidity: 10 – 90% non-condensing at room environmental temperatures and pressures
