CSR Friction Tester
| Company | Smets Technology GmbH |
|---|
Images
The ICAO confirmed CSR device has been designed to measure the friction values of runway and racetrack

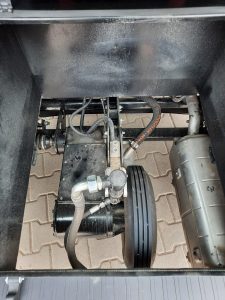

surfaces with utmost precision. The measuring device is equipped with an advanced hydraulic
system. This enables reliable and efficient friction measurements even on bumpy or inclining surfaces under any weather condition without having to make any corrections to its calibration.
THE CSR CAN PERFORM THE FOLLOWING MEASUREMENTS:
≥ Wet and dry friction measurements
≥ Braking distance
≥ Surface temperature and humidity
≥ Optional: Crack spotting
≥ Optional: Texture depth of the surface

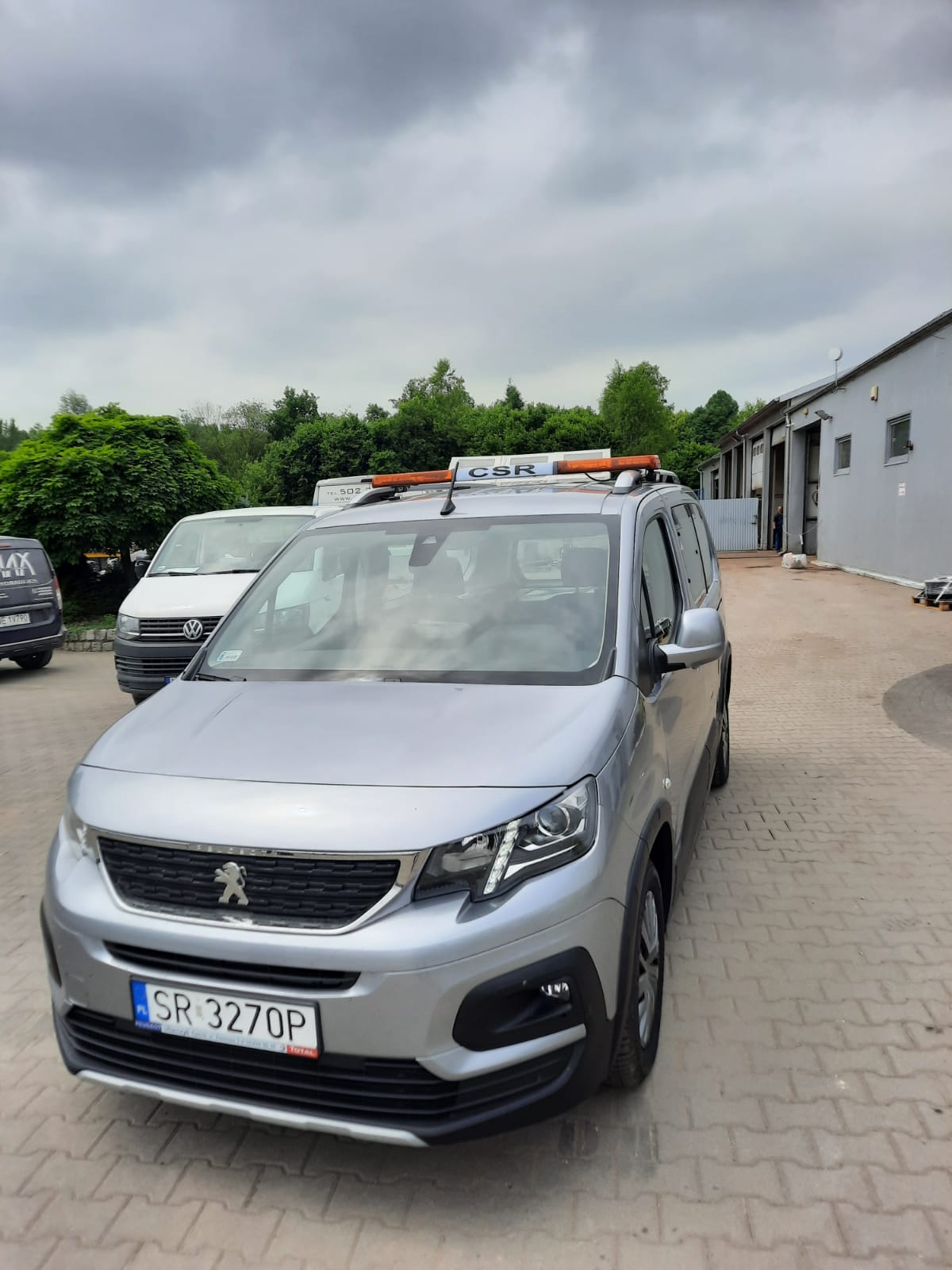

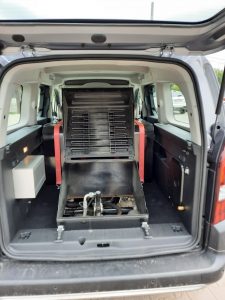

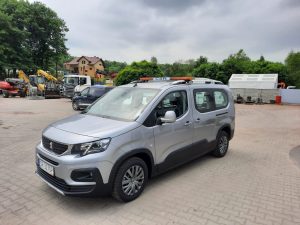

The vehicle is equipped with its own water tank, which allows continuous measurements with a 1 mm thick water-film. The test results can be tracked live. The results are also saved and can be presented in the form of
a final report in the Geographic Information System (GIS) environment.

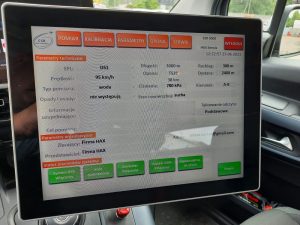

The user of the device can connect to the CSR on-board computer via the internet and can visualize the test results shortly after making the surface measurements.
- Friction Measuring Frequency: Every 10cm
- Speed Range during Friction Testing: 20 to 120 km/h
- Fully customizable Software
- Laser Control of Pavement Surface Texture Changes
- Automatic Rubber Thickness Control
- International Roughness Index (IRI) Measurement
- Skid-Resistance Measurement Mode without having to stop the device
- Measurement of Surface Temperature and Humidity
