Cyclone 4006HT
| Company | Cyclone Technology |
|---|
Images
Description
Specifications
Ultra high pressure runway rubber and paint removal
- Large over-the-road truck integrated system gives best mobility to job site
- Large water capacity, 1600 gal (6000 l) extends run time to over 5 hours of continuous paint and rubber removal
- Cyclone cleaning system fully recovers waste water without loud/noisy vacuum system
- Adjustable paint line cleaning path from 6 to 16 inches (15 to 41 cm)
- Joystick control provides precise placement of cleaning head on surface
| Cleaning Head Assembly | Removable, joystick controlled, multi-pivot point maneuverability. Cast aluminum housings, hydraulically driven rotation, fiberglass recovery tank. Belt-driven return pump. Each head max work pressure is 40,000 psi (2,700 bar) at 6 gpm (21L/min) Each head has a separate return tank and filtration screen |
| Rubber Removal Head | 40in (1.01m) cast aluminum head with up to 34in (0.86m) cleaning path |
| Paint Removal Head | 24in (60.96cm) cast iron with adjustable 6in (15.24cm) to 16in (40.64cm) cleaning path |
| Productivity (Rubber) | Up to 20,000ft2 (1,858m2 ) per hour |
| Productivity (Paint) | Up to 10,000 linear feet (3048 meters) per hour |
| Filtration System | Inlet water filtered to 0.35 micron over 260ft2 (24m2 ) of organic and particulate filtration |
| Water Filters | Minimum of two (2) filters before UHP pump: One (1) organic 50 micron filter, one (1) particle 0.35-micron filter |
| Water Pump | Positive displacement triplex plunger, with full pressurized lubrication, water cooled, 5.7gal (21.6L) per minute @ 40,000 psi (2,758 bar), variable output from 6,000 psi (413 bar) to 40,000 psi (2,758 bar) |
| Fresh Water Tank | Fresh water capacity: 1,600gal (6,000L) standard. Available up to 2,200 gal (8,327L) for 6.5 hours of operating time |
| Reclaim Tank | Separates water from material. 2,000gal (7,570L) total capacity. Sand blasted and powder coated stainless steel. Carbon steel tank is painted with polyurethane paint. Powered dump with powered door for easy maintenance |

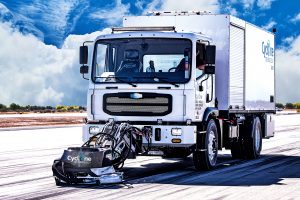

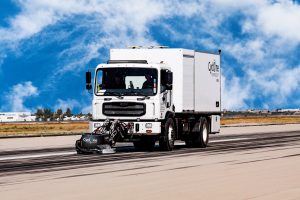

| Chassis | Third party chassis available (MACK is shown in picture). 6X4 style, GVWR 57,320lbs (26,000kg) |
| Operating System | Creep drive. Independent cooling/radiator, package. Travel in drive or hydrostatic mode. Cleaning mode: Engine operates at 1,550RPM |
| Controls | Automated cleaning controls. Computer monitored safety and maintenance system with automatic shutdown |
| Speeds | Cleaning speed: Up to 3.7mph (6km/hr), transport speed: Up to 65mph (105km/hr) |
| Brakes | Air brakes, front and rear automatically adjusted 6 wheel drum brakes |
| Dimensions | (Dimensions with cleaning heads retracted): 34ft 4in L x 8ft W x 11ft 6in H (10.5m x 2.4m x 3.5m) |
| Fuel Tank | Up to 105 gal (400L) total fuel capacity |
| Gross Vehicle Weight Rating | Up to 72,600 lbs (33,000 kg) |
| Steering | Power Steering |
| Power Plant Engine | Turbocharged liquid cooled diesel engine or equivalent |
| Pump Safety | Pressure relief burst disk will relieve all pressure if there is an increase of 7% above maximum recommended operating pressure |
