Cyclone CY5000 & CY5500
| Company | Cyclone Technology |
|---|
Images
Description
Specifications

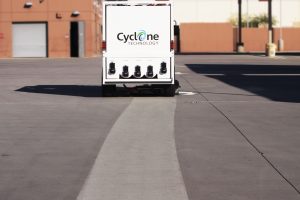

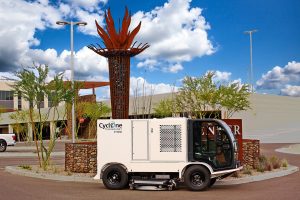

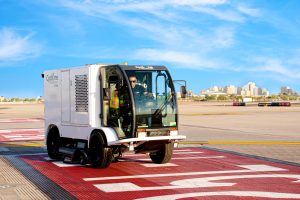

Ride-On Surface Cleaning machine

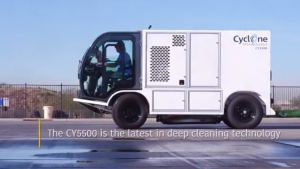

Our CY5000 & CY5500 ride-on surface cleaning machines have an enclosed cab design with climate control. The powerful Cyclone head instantly recovers water leaving your surface ready to use in minutes. The CY5500 surface cleaning machine comes standard with rear access ladder for easy clean out and front and rear LED work lights. Optional accessories include a 5500 pis upgrade kit.
- Ergonomically designed, high visibility operators cab with adjustable seat for increased operator safety and comfort
- Up to 20,000ft² per hour of environmentally friendly chemical free cleaning without the use of an external vacuum system.
- Up to 390 gallons of water capacity with optional multi stage water recycling system for long run times and water conscious cleaning
- Infinitely variable water pressure up to 4,350 psi (with an option for 5,500 psi) at 6 GPM for a deep long lasting clean to accommodate any hard surface
| Technical Specifications | CY5000 | CY5500 |
| Operator Cab Style | Enclosed cab design with heater and air conditioning | Enclosed cab design with heater and air conditioning |
| Cleaning Path | 34in (0.86m) consistently cleaned | 34in (0.86m) consistently cleaned |
| Water Pump | Triplex plunger capable of 4,350 psi (297 bar) at 5 GPM (19 LPM) | Triplex plunger capable of 4,350 psi (297 bar) at 5 GPM (19 LPM) |
| Output Pressure | Infinitely variable 1,200 psi (83 bar) – 4,350 psi (297 bar) | Infinitely variable 1,200 psi (83 bar) – 4,350 psi (297 bar) |
| Cleaning and Recovery Head | Hydraulically powered, cast aluminum 40in (1.02m) diameter with protective shield – patented design | Hydraulically powered, cast aluminum 40in. (1.02m) diameter with protective shield – patented design |
| Water Heating System | Electronically fired, inline diesel powered heater with 240,000 BTU/hr output | Electronically fired, inline diesel powered heater with 240,000 BTU/hr output |
| Filtration System | None | Multi-stage filtration system consisting of two 75 um and two 30 um washable/reusable filter elements, each with 1,500in2 of filtration surface area |
| Water Tanks | Fresh water supply: 360gal (1,363 L) Separate recovery tank for waste water. Easy fill and clean out design | 390gal (1,476 L) combination supply and recovery tank that recycles and reuses water in continuous cycle. Easy fill and clean out design |
| Cleaning Attachments | Standard model includes high pressure curb and gutter cleaning system and high pressure cleaning wand system with 25ft (7.6m) of hose with reel | Standard model includes high pressure curb and gutter cleaning system and high pressure cleaning wand system with 25ft. (7.6m) of hose with reel |
| Steering | Front wheel steering with hydraulic power assist | Front wheel steering with hydraulic power assist |
| Drive System | Two (2) speed hydrostatic system provides accurate speed control at cleaning speeds. Maximum transport speed of 11mph (17.7km/h). Power delivered to front wheels | Two (2) speed hydrostatic system provides accurate speed control at cleaning speeds. Maximum transport speed of 11mph (17.7km/h). Power delivered to front wheels |
| Controls | All cleaning actions controlled from operator seat with ergonomic operator interface | All cleaning actions controlled from operator seat with ergonomic operator interface |
| Brakes | Rear heavy duty automotive style 11in (0.28m) hydraulic drum brake with additional hand lever actuated parking brake | Rear heavy duty automotive style 11in (0.28m) hydraulic drum brake with additional hand lever actuated parking brake |
| Fuel Tank | 18gal (68L) | 18gal (68L) |
| Chassis Frame Construction | Welded structural steel tubing with 3in x 2in (0.08m x 0.05m) tubing with 0.120in (0.0030m) wall thickness | Welded structural steel tubing with 3in x 2in (0.08m x 0.05m) tubing with 0.120in (0.0030m) wall thickness |
| Engine | 2.8L Cummins Turbo Diesel 74HP Tier 4 Final | 2.8L Cummins Turbo Diesel 74HP Tier 4 Final |
| Sound Level | Without Noise Reduction Kit (Standard): 84 dB A With Noise Reduction Kit: 81 dB A | Without Noise Reduction Kit (Standard): 84 dB A With Noise Reduction Kit: 81 dB A |
| Gradeability | 20% | 20% |
| Productivity | Up to 20,000ft2/per hour (1,858m2/per hour) | Up to 20,000ft2/per hour (1,858m2/per hour) |
| Run Time | 1 hour | Up to 5 hours (application-dependent) |
| Weight | Empty: 5,280lbs (2,094kg) Full: 8,282lbs (3,755kg) | Empty: 5,880lbs (2,667 kg) Full: 9,132lbs (4,142 kg) |
| Dimensions | 154in x 56in x 77.5in (3.9m x 1.4m x 1.9m) | 154in x 56in x 77.5in (3.9m x 1.4m x 1.9m) |
