DESKO PENTA Scanner® 4X

Description
Specifications

One housing – many possibilities

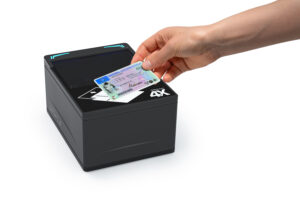

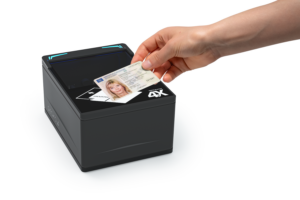

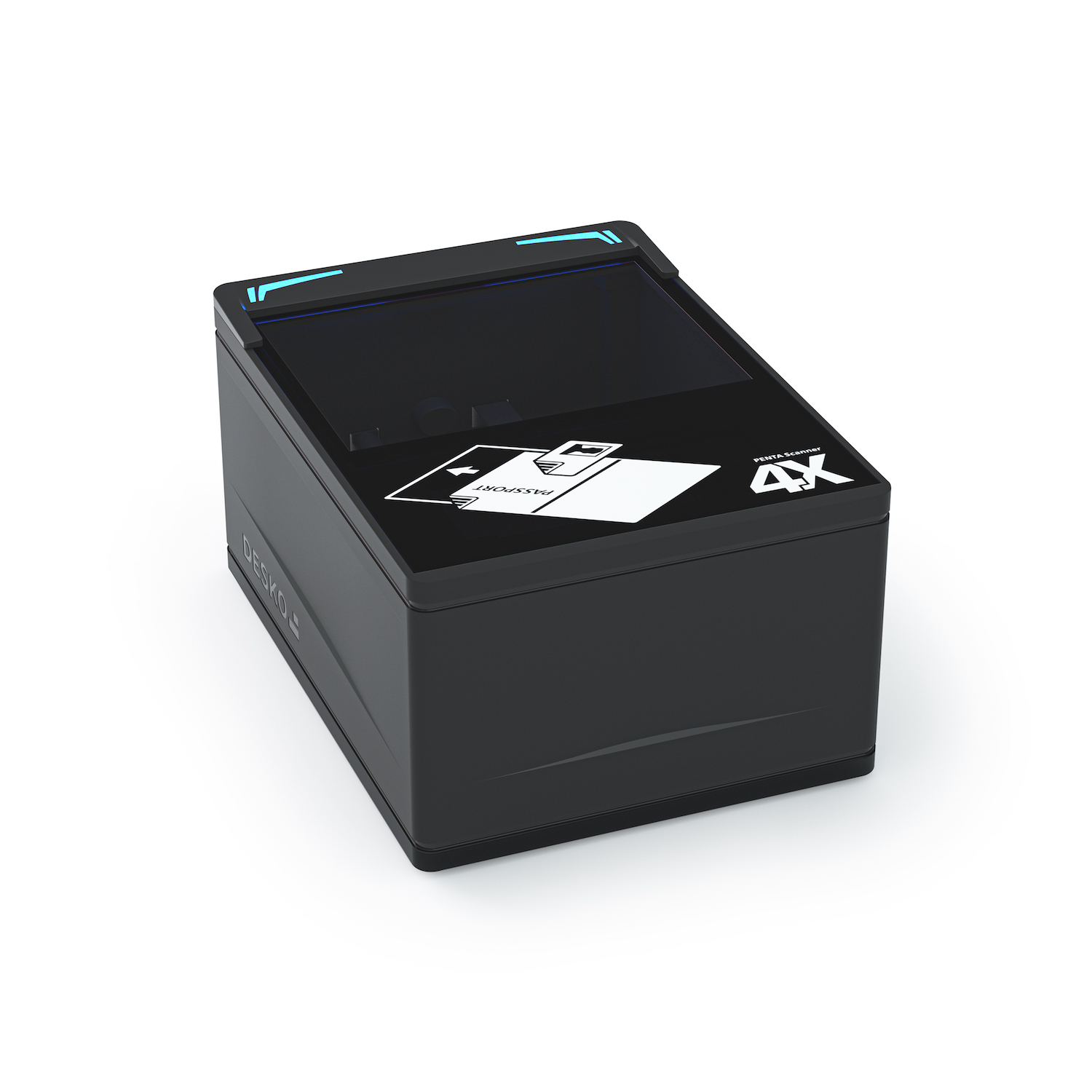

The DESKO PENTA Scanner® 4X is our most versatile ID document scanner. It can be extended by various functions and features, all included in a housing design that is suitable for both desktop usage and integration in OEM environments.

Features:

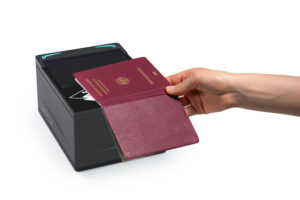

  • ID and passport image scan: scans documents with three different light sources (visible light, infrared and ultraviolet light) and a resolution of up to 900 dpi
  • Automatic OCR/MRZ recognition of documents according to ICAO 9303ID and passport image scans under three light sources
  • Flexible housing: suitable for desktop usage or OEM integration in kiosks or gates
  • IP54 certification for integration
  • Barcode recognition module (optional)

Optional Features:

  • Extended illumination package for in-depth document inspection: coaxial and grazing light for visualizing OVDs, holograms and embossing

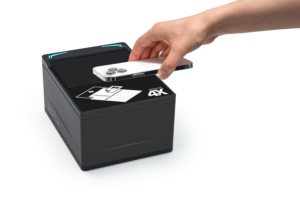

  • Reader for barcodes: for scanning 1D and 2D barcodes from paper and displays (smartwatches, smartphones, tablets), e.g. on boarding passes and tickets
  • China ID Reading Module: an integrated RFID module specifically designed to read Chinese ID cards
  • Smart card reader: for reading smart cards, such as credit and debit cards
  • SAM Module: an integrated Secure Access Module specifically for reading SAM cards

Measurements

  • Footprint: L 190 mm (7.48 inches) x W 143 mm (5.63 inches) x H 92 mm (3.66 inches)
  • Scan window: L 94 mm (3.7 inches) x W 131 mm (5.2 inches)
