DESKO PENTA Scanner® BGR

Company DESKO

Images

Description
Specifications

Multifunctional boarding gate reader

The DESKO PENTA Scanner® BGR is the perfect device for a trouble-free and flexible process, for all passenger touch points. Primarily designed for the operation at the boarding gate, it can also be used for check-in or security control: at the gate or in a self-service terminal.

Your advantages:

  • Multifunctional PENTA technology: OCR/MRZ module for reading barcodes and magnetic stripe cards and (optional) NFC and RFID module in a single device.

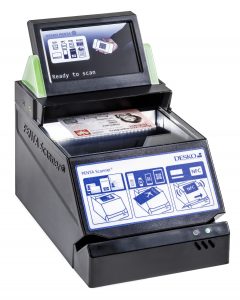

  • Reliable image and data capture: For fast and reliable reading of ID documents such as ID cards, passports, boarding passes and other documents.
  • Extra-large scanning window and color display
  • Auditory and visual feedback: Buzzer and multi-colored LEDs for clear GO or NO-GO feedback
  • Suitable for various applications: The perfect all-in-one solution for boarding, check-in and security control: at the gate or as a self-service terminal.

Features:

  • OCR technology for optical character recognition of the machine-readable zone (MRZ) of documents such as ID cards or passports
  • Light sources: Infrared and visible light

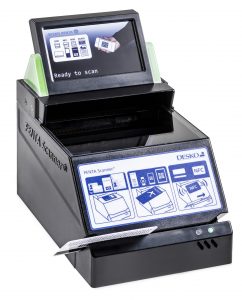

  • Magnetic stripe reader (MSR): a bidirectional swipe reader to read cards with magnetic stripes, e.g. frequent flyer cards, bank cards and credit cards

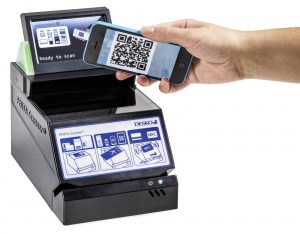

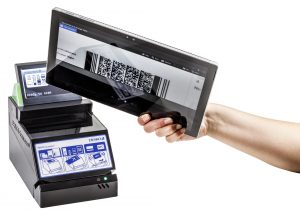

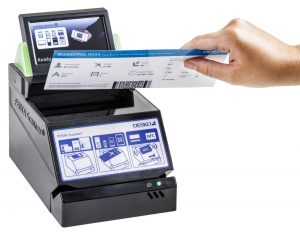

  • Barcode reader: for scanning 1D and 2D barcodes on paper and digital displays (smart watches, smartphones, tablets), e.g. boarding passes, airline tickets
  • Scratch-resistant Corning® Gorilla® Glass 3
  • Display: 4.3” full graphics display


Optional Features:

  • Light sources: UV-A light for checking security features
  • RFID module (Radio Frequency Identification): to read biometric passports
  • China ID reading module: an integrated RFID module specifically for reading Chinese IDs
  • NFC module (Near Field Communication): for example, contactless reading of e-tickets
  • Integrated PC: incl. WLAN for independent use without stationary PC


Measurements:

  • Footprint: L 219,9 mm (8.66 inches) x W 143 mm (5.63 inches) x H 191,2 mm (7.53 inches)
  • Scan window: L 94 mm (3.7 inches) x W 131 mm (5.2 inches)
