Ductile iron Access Cover ARES locked hinged lift assisted
| Company | SOVAL |
|---|---|
| Product code | ARES |
Images
Description
Specifications

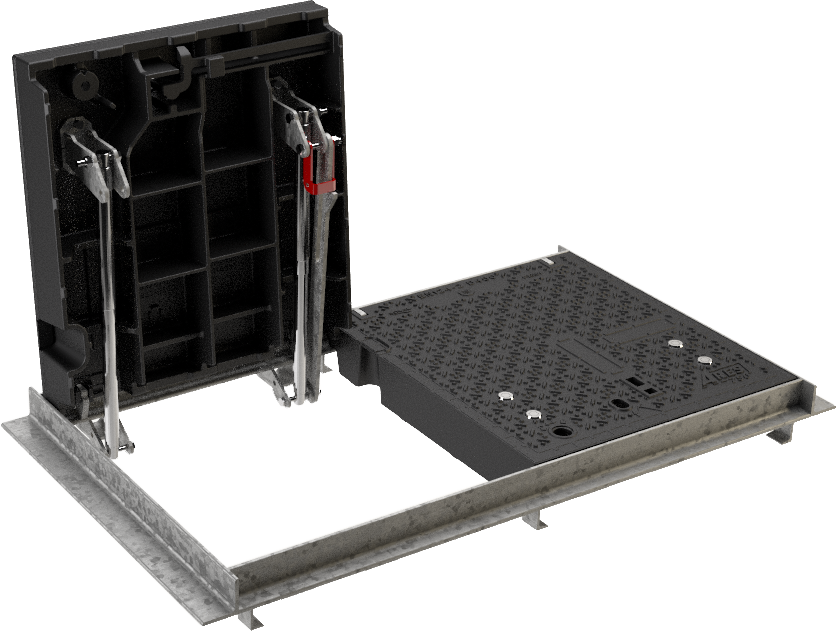

Multipurpose hinged & lift assisted access solution made of cast iron, ARES range is designed to cover every underground structure with a side of 0.75m (ARES 750) or 0.90m (ARES 900).
Main features and benefits:
- Width 0.75 or 0.90m, several lengths on request.
- From D400 up to E600 (F900 on request)
- Third party certified by TÜV Germany
- Self-locking system “Pushed & Slammed” by means of ductile iron spring bar.
- Spring assisted (stainless steel), opening effort less than 25 Kg according to Health and Safety regulations.
- Safety blocking to prevent accidental cover closure, activated automatically at the opening of the cover.
- Dedicated cable-pass areas (breakable areas factory designed).
Option(s) available on request:
- Additional locking system
- Fall safety equipment integrated
- Technical coating
- Custom logo and badging
- Cover(s) Made of Spheroidal Cast Iron (ductile) from D400 up to E600 according to EN 124-2: 2015.
- Water based black paint, Environmentally friendly
- Third party certified by TÜV Germany.
- Made in France.
