Ductile iron Access Cover TITAN locked hinged lift assisted
| Company | SOVAL |
|---|---|
| Product code | TITAN |
Images
Description
Specifications

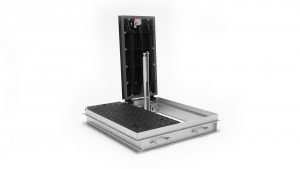

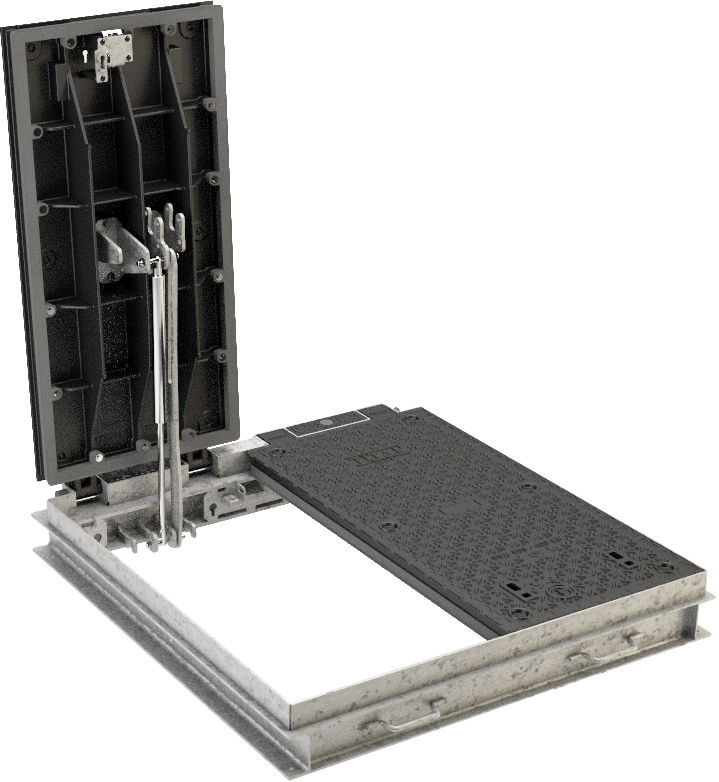

Multipurpose hinged & lift assisted access hacth made of cast iron, TITAN range is designed to cover every underground structure with a side of 1m (TITAN 1000) or 1,20m (TITAN 1200).
Main features and benefits:
- Width 1m or 1.2m, unlimited length.
- From D400 up to F900
- Third party certified by TÜV Germany
- Automatic burglar-proof locking system “Pushed & Slammed”, third-party certified.
- Gas (steel or stainless steel) or spring assisted (stainless steel), opening effort less than 25 Kg according to Health and Safety regulations.
- Safety blocking to prevent accidental cover closure, activated automatically at the opening of the cover.
- High stability with non-rock design by means of EPDM gasket moulded monobloc mechanically screwed underneath each cover with stainless steel screws
- Each lid double hinged mechanically connected to the frame by stainless steel rotation axle
Option(s) available on request:
- Runoff watertightness third party certified by TÜV Germany
- Fall safety equipment integrated
- Technical coating
- Custom logo and badging
- Cover(s) Made of Spheroidal Cast Iron (ductile) from D400 up to F900 according to EN 124-2: 2015.
- Frame Made of Steel Hot-Dip Galvanized; Thickness µ90 according to ISO 1461
- Water based black paint, Environmentally friendly
- Gasket made of EPDM, molded monobloc
- Third party certified by TÜV Germany.
- Made in France.
