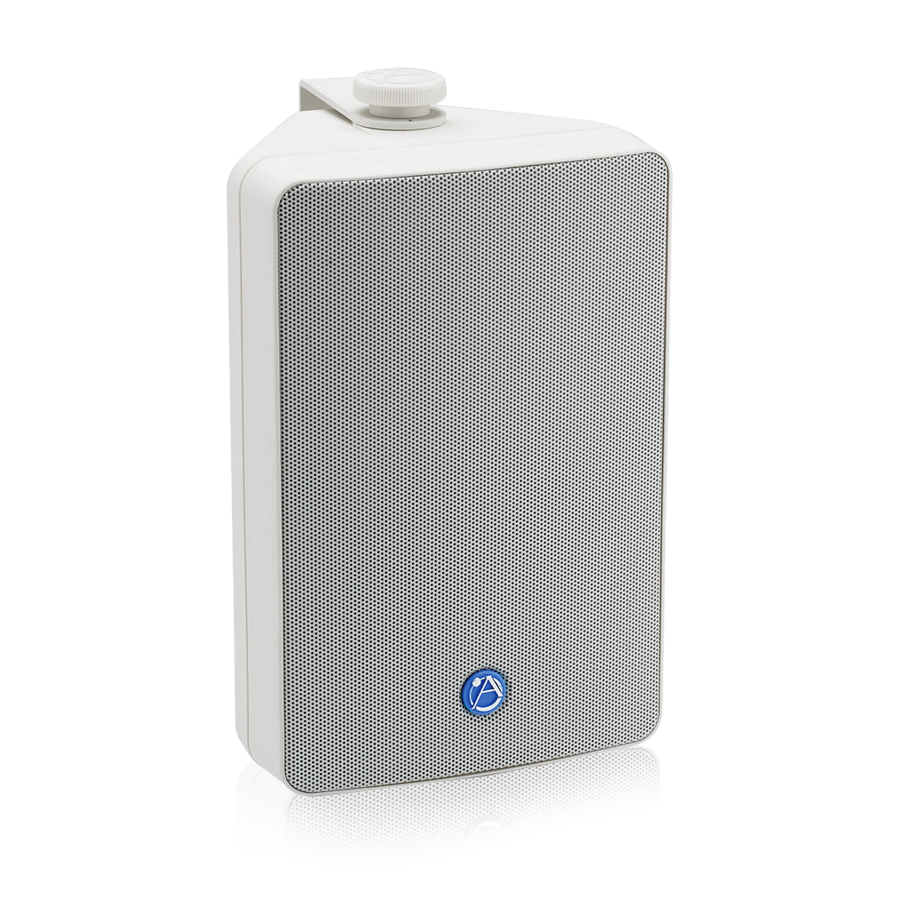

Environment-resistant EN54-24 certified SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and ferrofluid cooled, titanium dome high frequency device. Vocal and musical clarity is optimized by the mathematically conceived, advanced design of the AtlasIED TRX Control WaveGuide™ high frequency director. This design provides smooth, even sound coverage (90o H x 90oV). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the AtlasIED PolyGuard™ protection circuit. The SM52TEN includes an internally mounted 60 Watt 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications. The tap selection switch also includes a transformer bypass setting for direct coupled 6Ω operation.
|SPEAKER TYPE||Surface Mount|
|POWER TAPS||.94, 1.9, 3.7, 7.5, 15, 30 & 6Ω Bypass|
|FREQUENCY RESPONSE||93Hz – 20kHz|
|HEIGHT||10 3/16″ (25.87 cm)|
|WIDTH||6 7/8″ (17.46 cm)|
|DEPTH||5 7/8″ (14.92 cm)|
|SHIPPING WEIGHT||5.00 lbs (2.27 kgs)|
