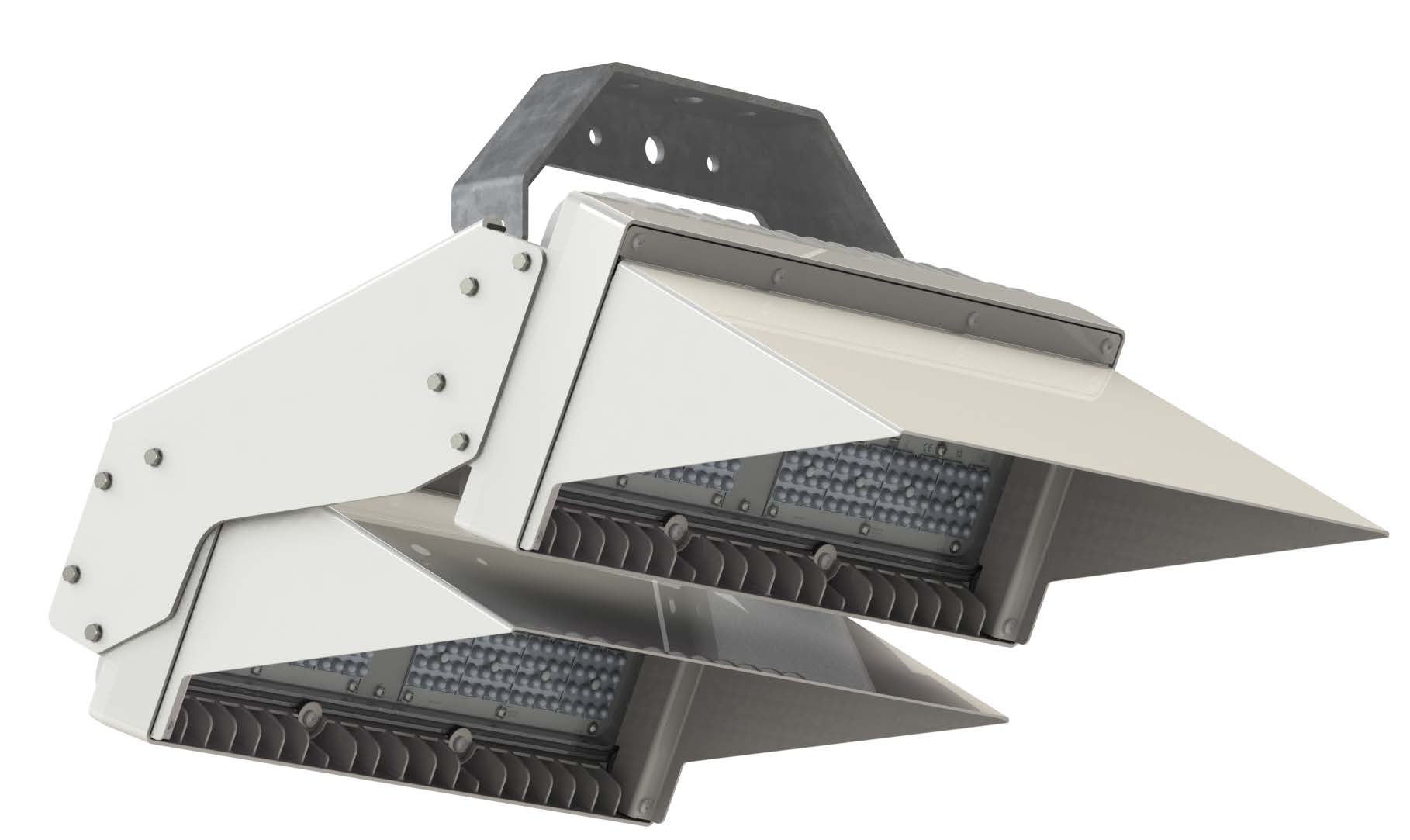

FL820 LED Floodlight
| Company | CU Phosco Lighting |
|---|
Images
FL820 LED FLOODLIGHTING SYSTEM provides an innovative solution for Area Lighting.
The FL820 is a high output LED floodlight, which is designed for all types of area lighting, and may be used as a replacement for existing 1kW or 2kW floodlight systems. It is available as a single, twin, or triple module with CSP (Chip Scale Package) LEDs.
Features and benefits include:
- High output up to 2000W replacement
- Superior luminaire efficacy up to 154lm / W
- High Colour Rendering Index
- Low glare, Dark Sky friendly
- Single Module and twin module Options
- CSP LED array for long life
- Can be mounted on existing columns and masts
- Integral driver box
- IP66
- Fully recyclable
Cooling fins are optimised with a high surface area to quickly draw heat away from the LEDs. Vents created by the vertical cooling fins accelerate natural convection through the heatsink. The rising hot air draws cold air in from below, immediately cooling the LEDs and maximising their lifespan and light output. This cooling effect allows the FL820 to function in ambient temperatures up to 50°C whilst ensuring it’s high efficacy is maintained over life.
- Light Source: CSP LEDs
- Number of LEDs: 256 (per module)
- Correlated Colour Temperature: Warm – 3000K, Neutral – 4000K, Cool – 5700K
- Colour Rendering Index: > 70
- Optical Cover: Flat glass
- Max. Luminaire Efficacy at full Power: 137lm/W
- Max Luminaire Efficacy: 154lm/W
- Electrical Class: I
- Lumen Maintenance Output: L90 @ 80,000 hours, Ta = 45ºC • L92 @ 100,000 hours, Ta = 25ºC
- Driver Current: 700, 850, 1050, 1200, 1400mA
- Operating Temperature: -40ºC to +50ºC
- Storage Temperature: -40ºC to +80ºC
- Installation Height: 10 ~ 50m
- Installation: Stirrup mount
- Material: Marine Grade Aluminium LM6 (module) • Aluminium side plates • Galvanised steel stirrup
- Finish: Polyester powder coated RAL 9010
- Ingress Protection: IP66
- Luminaire Tilt (On Site): -15° to +15° in 2.5° steps
- Product Configuration: FL820-1, FL820-2, FL820-3
- Max. Luminaire Luminous Flux: 70260lm, 140532, 210798
- Power Consumption: 255-512W, 510-1024W, 765-1536W
- Wind Area Side (EPA): 0.063m2, 0.132m2, 0.198m2
- Wind Area Front (EPA): 0.153m2, 0.202m2, 0.249m2
- Weight (Kg): 11.6, 22.1, 32.6
