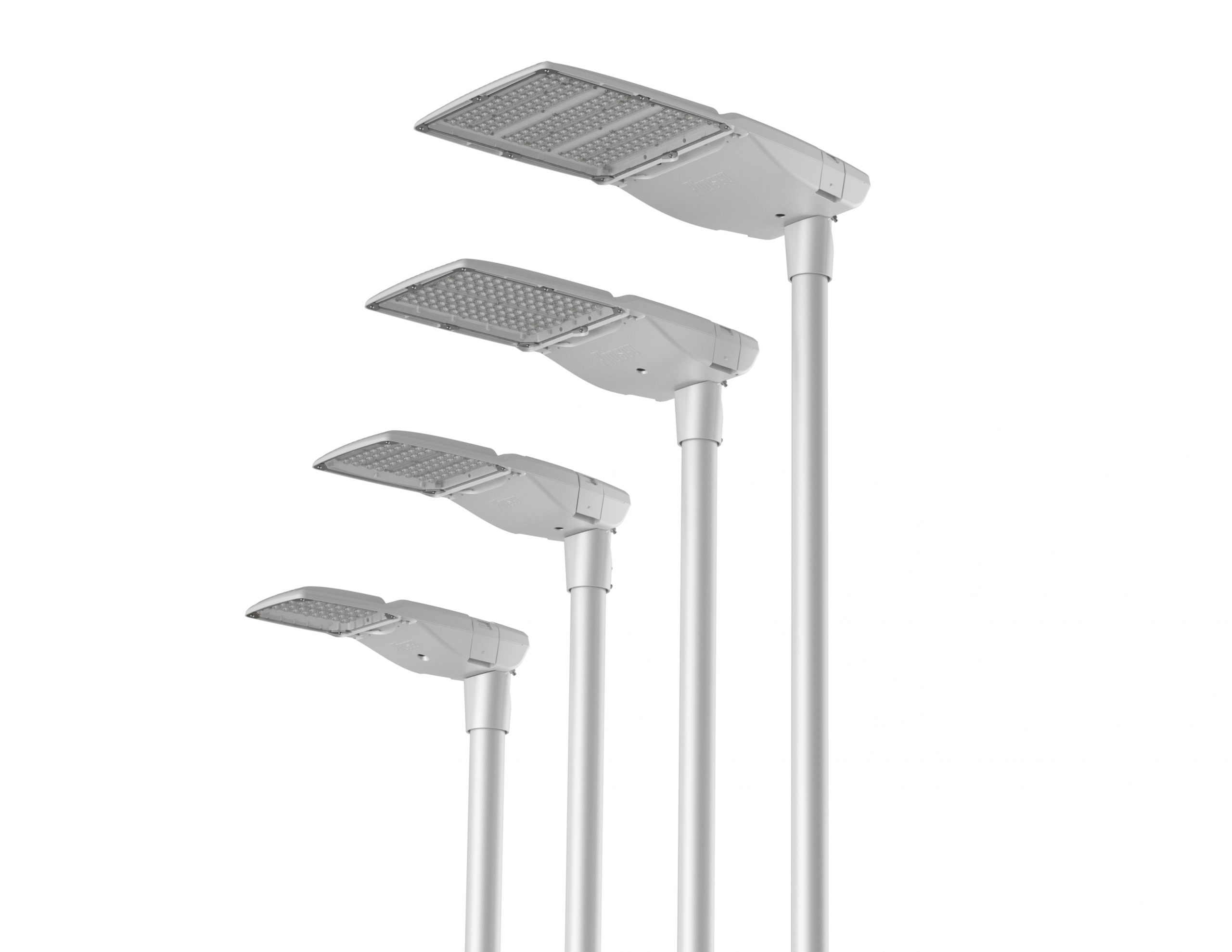

P86X Range
| Company | CU Phosco Lighting |
|---|
Images
Whatever your requirement for lighting major road infrastructures or small residential streets our King of the Road range of Luminaires will maximise your energy efficiency. The range of luminaires has a lumen output ranging from 78,050 lm down to 3,680 lm with multiple optical distributions to meet any lighting class.
Contractor-friendly installation and ease of maintenance with minimal total cost of ownership makes this range of luminaires perfectly suited for ease of project delivery.
The P860, P861, P862 and P863 all offer a wide choice of optics and lumen packages. High efficacy optics with up to 25 distributions (14 shown below) allows most challenging schemes to be effectively lit with maximum energy efficiency. Specialised optics are provided for amenity, pedestrian crossings (X1 and X2) and floodlighting as well as the usual residential, main road and conflict area distributions.
Features & Benefits:
- Slim and elegant aesthetics
- Future-proof and upgradable on site
- Max. luminaire efficacy – 163 lm/W
- Wide range of optics and lumen packages
- Advanced thermal management
- Maximised savings on energy and maintenance costs

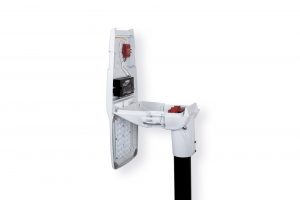

- Contractor-friendly installation and maintenance
- Minimal total cost of ownership
- Up to ME1 lighting class applications
- Dark sky friendly and no upward light
- Flexible and intelligent lighting control options
- Low windage and lightweight
- IP66 ingress protection
- 100% recyclable
- Number of LEDs: 672, 448, 256, 128
- Power consumption: 150-473W, 100-342W, 52-194W, 28-110W
- Driver current (25mA steps): 300mA-1050mA, 300mA-1050mA, 200mA-800mA, 200mA-850mA
- Lumen maintenance: L90 > 100,000 hours (850mA, Ta = 25°C), L86 > 100,000 hours (1050mA, Ta = 25°C)
- Operating Temperature: -40°C to +50°C
- Correlated colour temperature (CCT): 4000K (3000K option)
- Colour rendering index (CRI): >70
- Glare rating: up to G6
- Optical cover: Flat glass – Tested to IK09
- Electrical class: Class I – All types, Class II – All except P860
- Surge protection: 10 kV Common Mode, 6 kV Differential Mode to IEC 61000-4-5
- Dimming: multi-step dimming, Control system input, DALI or Step-dimming
- Lighting regulation: Mini Photocell, 7-pin ANSI Socket, Zhaga Book 18 socket, Bluetooth Control Node, Central Management Systems
- CMS: Compatible with CMS systems
- Installation: SE Ø 34-42mm or Ø 42-60mm, PT Ø 42-60mm or Ø 60-76mm
- Post top / Side entry tilt: -10°, -5°, 0°, 5°, 10°
- Material (body): High pressure die cast aluminium
- Finish: Polyester powder coat cured under heat
- Colour: Light grey (RAL 7035), other RAL colours available on request
- Ingress protection: IP66
