fusion

Description
Specifications

The all-in-one chassis-independent container solution!

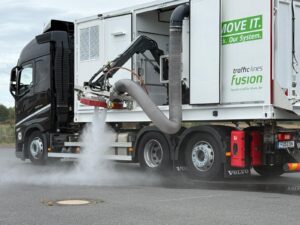

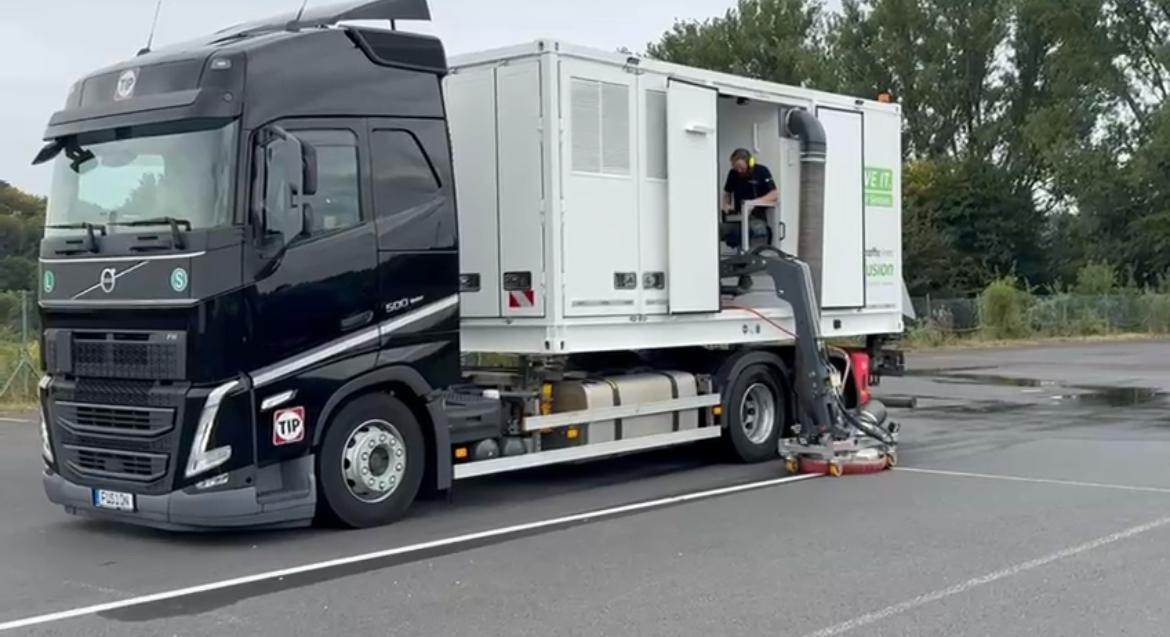

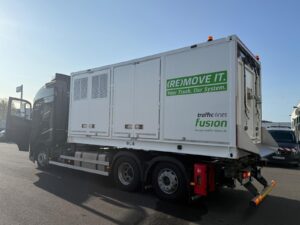

This new and innovative solution combines ultra-high-pressure water blasting technology, including fresh and wastewater management, in an easily shippable container. This compact solution is ideal for marking and rubber abrasion removal. With the adjustable working hood, it allows efficient operation from both sides. The container can be mounted on any chassis, offering maximum mobility and versatility. Based on the format of a 20-foot container, the system can be mounted on almost any carrier vehicle worldwide. The fusion is ready for immediate use, reliably powerful, flexible, can also be used as a stand-alone solution, and can be shipped worldwide without any problems. The fusion was developed specifically for international infrastructure conditions:

Integration: compact container with integrated high-pressure water technology, self-contained system, universally applicable, and easy to install on site.

User-friendliness: intuitive operation with quick familiarization.

Scalability: suitable for small to large applications, with flexible deployment options.

Efficiency: no official registration required (road approval), can be used worldwide, and conserves resources. Security: telemetric system, operating and data security in accordance with the highest standards.

Future viability: unique, modern, digitally oriented. Unique, fully automatic control via a simple touchscreen; all sensors are directly connected to it to ensure optimal performance.

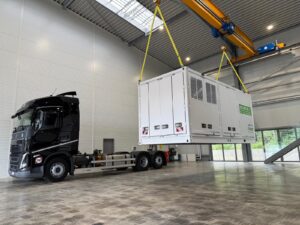

  • 20ft container shell – crane and stackable
  • Empty weight: 10,000 kg
  • Measurements (LxWxH): 6,060 mm x 2,450 mm x 2,590 mm
  • Operating pressure up to 3,000 bar at 30 l/min
  • Fresh water capacity: 4,000 l
  • Waste water tank: 5,000 l
  • Suction power up to 20,000m3/h
  • Patented suction system
  • Incl. twister with working width of up to 500 mm
  • Operable on both sides of the container
  • Operators work station inside container
  • Wireless communication between operator and driver
  • Suitable for almost any local chassis
