G-1090 Air Traffic Receiver for ADS-B, Multilateration and FLARM

Description
Specifications

Swiss made and designed for exterior installation, the G-1090 natively detects aircraft equipped with ADS-B, Mode S and Mode A/C transponder (1090MHz). On demand, the G-1090 can also be equipped to receive FLARM (868MHz) and UAT (978MHz).

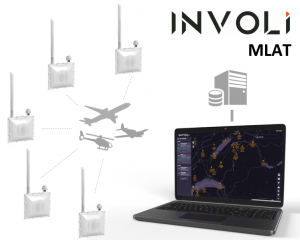

When G-1090 are numerous enough and adequately located, they relay aircraft signals to INVOLI servers via an internet connection allowing to perform Multilateration. This internet connexion is available through ethernet (or 4G on demand).

The data gathered thanks to INVOLI’s existing coverage can also be provided as API & STREAM to a third user software.

On-demand, the G-1090 receiver can be accompanied by a tripod and a battery for mobile external usage.

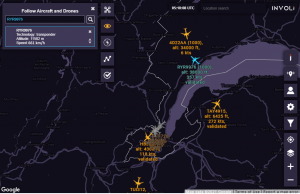

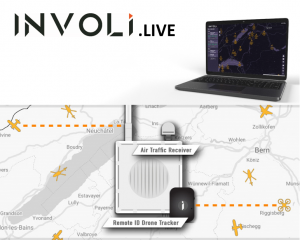

Every G-1090 is sold with a license to use INVOLI.live air traffic visualisation platform.

FEATURES:

  • Detection of ADS-B, Mode S, Mode A/C signals on 1090 MHz frequency
  • Measure of local atmospheric pressure, to compensate pressure altitude
  • Plug-and-play
  • Communication and power via Power Over Ethernet (PoE)
  • Rugged Metallic box for mounting in exterior (IP67)
  • Cavity filter for proper insulation of 1090 MHz frequency
  • Surge protection
  • Provided with antennas
  • Integration within INVOLI.live
  • API and STREAM
  • Swiss Made

OPTIONS:

  • Detection of FLARM aircraft (extended range), including lifelong FLARM license (868MHz)
  • UAT (978MHz)
  • Internet connectivity via 4G (SIM card not provided)
  • Power adapter from 110V/220V to PoE
  • Tripod for mobile operations
  • External battery for mobile operations
