LEMAN: Lightweight independent 4G drone tracker
| Company | INVOLI |
|---|
Images
LEMAN is a fully independent 4G Drone Tracker equipped with its own GPS and battery, compatible with ASTM standard on Remote ID.

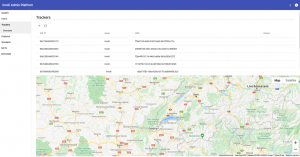

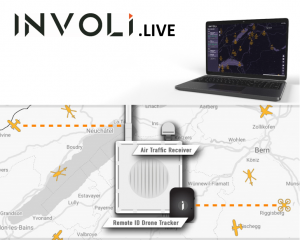

Once configured and equipped with a SIM Card, the LEMAN starts sending its position and becomes visible on the INVOLI.live platform. The position can also be sent into a third-party software such as an UTM, an UAS service provider platform or a drone operations management software.
LEMAN tracker can also be used for drone fleet management, lost drone & payload recovery, and drone Identification in sensitive monitored areas.
Every LEMAN tracker is sold with a license to use INVOLI.live air traffic visualisation platform.
INVOLI solutions offer drone operators a better chance in getting BVLOS flight authorization as it provides them with precise airworthiness assessment and therefore significantly mitigating risks of collisions with manned aircrafts.
LEMAN trackers can also be installed on ground vehicles if needed.
CAPABILITIES:
- Real-Time GPS Tracking
- Last position recorded
HARDWARE SPECIFICATIONS:
- Frequency band: Europe: B1/B3, North America: B2/B4
- GPS Chip : U-blox accuracy 5m-15m
- GPS Sensitivity: -161dBm
- Battery life: 900mAh/3.7V Lithium polymer battery: 4h30 with position every 3sec
- LED Light: 2 LED lights indicating GPS/GSM/Power status
- SIM card: Nano type
- Sensor: 3D acceleration sensor
- Charge: Dock Station
MECHANICAL SPECIFICATIONS:
- IP67 waterproof
- Dimensions: 61*45*19mm
- Weight: approximately 47g
- Refresh time: <3s
- Latency: <2s
- Standard: ASTM Network Remote ID compatible
DATA TRANSMITTED:
- Tracker position (GPS Longitude, Latitude, Altitude), WGS84
- Tracker speed and heading (calculated in INVOLI’s server)
- Tracker data (quality GPS signal, quality GSM signal, battery charge level)
SOFTWARE INCLUDED WITH FIRST PURCHASE:
- An individual license for INVOLI.live
