Mobile Document Reader - Regula 7308

Company Regula
Product code 7308

Images

Description
Specifications

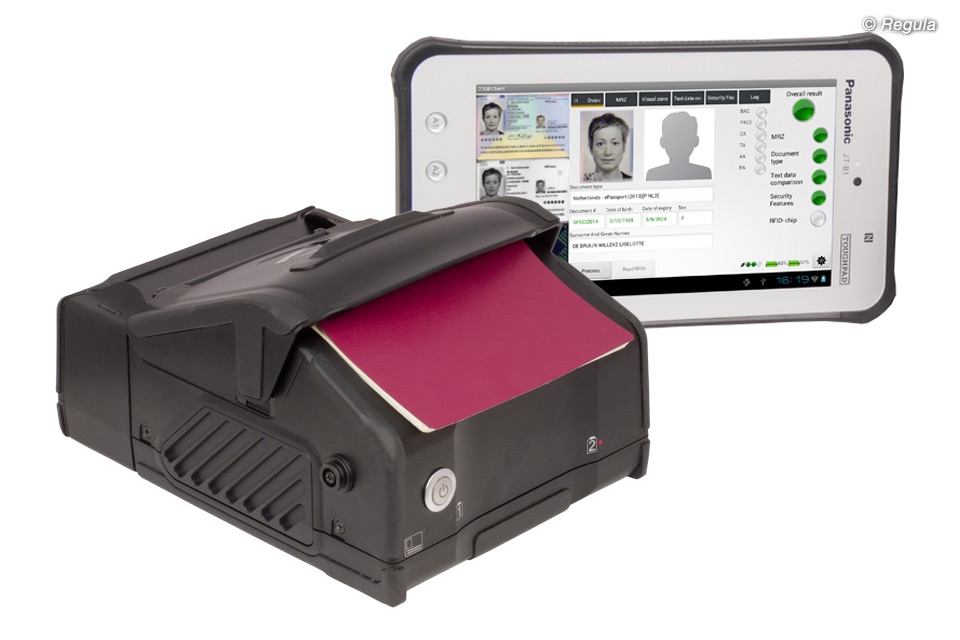

A mobile compact size model with a shoulder strap. The body is made of hard plastic (IP54). Full data processing onboard with a built-in PC. The reader can be connected to an external PC or any other visualization device (tablet PC, smart phone, etc.)* via wireless network (Wi-Fi). Power supply: two rechargeable batteries (hot change is possible). No moving parts. Reliable, convenient and easy-to-use.

The device allows capturing images in white, infrared, ultraviolet and coaxial lights. It has a module for reading RFID chips. The device is supplied with software development kit (SDK) for easy integration into existing end-user systems.

* – supplied optionally

Functionality

  • Capturing and processing images
    • supported document formats
      • ID-1
      • ID-2
      • ID-3
      • other documents with maximum size 88×128 mm
    • automatic detection of a document in a scanning zone
    • automatic scanning after document detection
    • elimination of glare from laminate and holograms in white and IR light
    • compensation of external light hitting during image capture in ultraviolet light (Smart UV)
    • automatic selection of UV illumination intensity according to the document type
    • search and cropping of a document image from a general image
  • The MRZ detection and recognition
  • Recognition and reading of 1D and 2D barcodes
  • Automatic recognition of a document type
  • Processing graphic fields
  • OCR of the visual zone
  • Reading RFID tags
  • Analyzing and comparing text data
  • Automatic authenticity verification of a document
Functionality Model
7308.100 7308.110 7308.111
Optical reader light sources White + + +
Infrared 870 nm + + +
Ultraviolet 365 nm + +
Coaxial white +
Reader of radio frequency identification devices (RFID) + + +

Optical reader

  • Scanning area, mm — 88×128: full passport page
  • Video sensor:
    • type — CMOS
    • colour model — RGB
    • colour depth, bit — 24
Megapixels 3,1 1
Resolution, ppi 380 180
Frame size, pixels 2048×1536 1024×768

Reader of radio frequency identification devices (RFID)

  • Supported standards — ISO 14443: type А and В
  • Data exchange rate, Kbaud — 106, 212, 424, 848
  • Reading an RFID tag regardless of its position in the document
  • Anti-collision: reading an RFID tag according to the MRZ

Device technical specifications

  • Built-in PC:
    • CPU, GHz, min — 1,1
    • RAM, Gb, min — 2
    • SSD, Gb, min — 32
  • Protection rating — IP54
  • 1 external USB 2.0 port for connection of peripherals (for example, fingerprint scanner)
  • Connection interface with result visualization device — wireless network (Wi-Fi) with up to 150 Mbps speed
  • Power supply — two rechargeable batteries, Ah/V, min — 4,4/7,2
  • Time of autonomous operation with two fully charged batteries, not less than, h — 7,5
  • Overall dimensions (length×width×height), mm — 225×170×102
  • Weight, not more than, kg — 1,7
