Narrow body aircraft hangars
| Company | Spantech |
|---|---|
| Product code | Grand I-novation |
Images

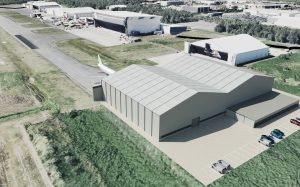

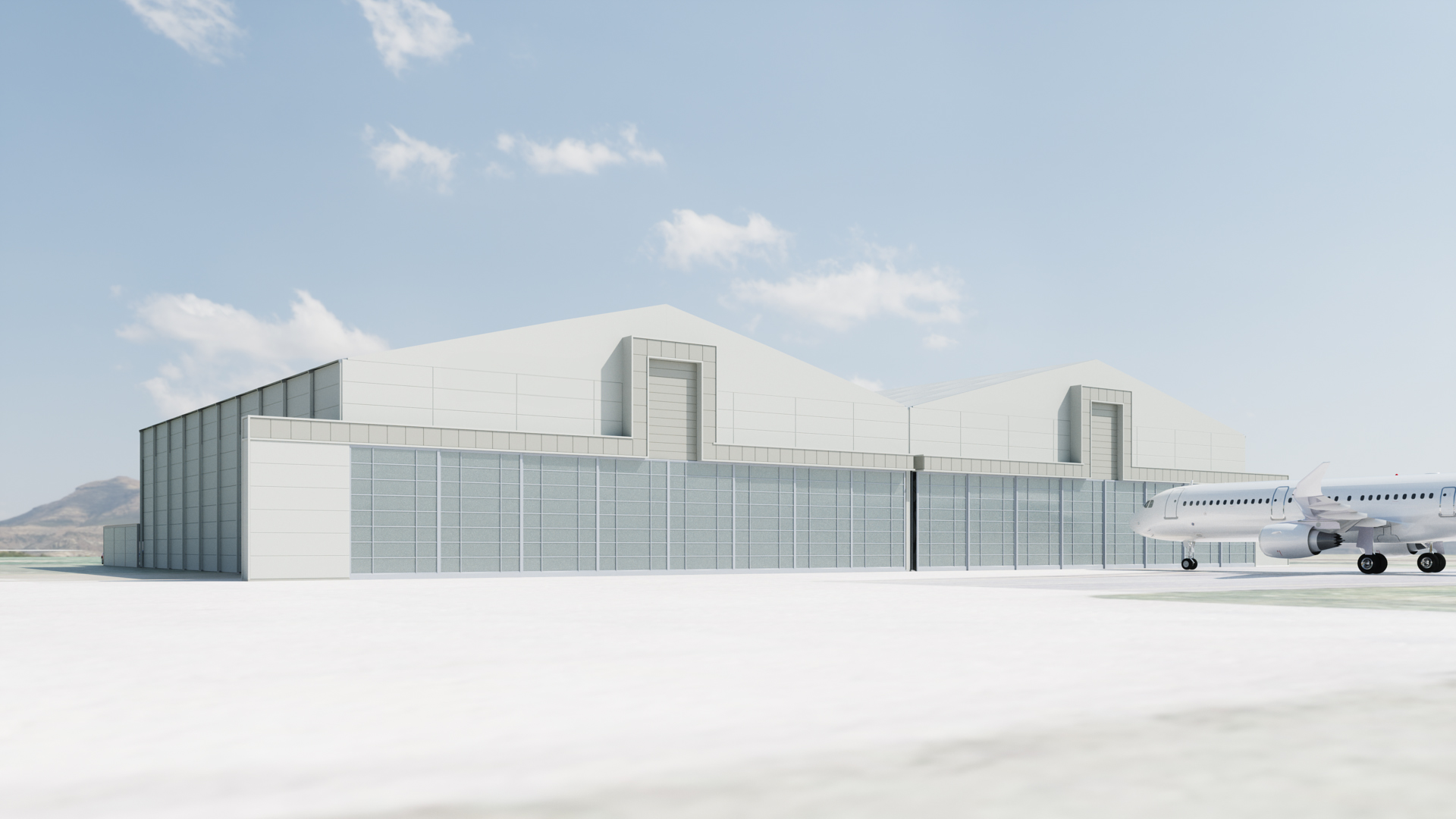

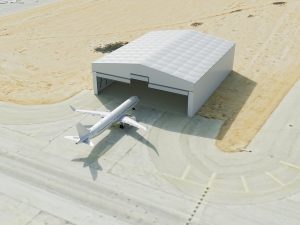

SPANTECH can provide several types of fast and mobile solutions to house narrow bodies such as A220, A320, B737 or the Bombardier CS300. According to the on-site needs, the following structures can be used:
- Polygonal (max 50 m span)
- Grand I-novation (max 70 m span)
SPANTECH’s experience, specific engineering and high-quality materials provide the following advantages to airports, airlines or MRO companies:
- 100% relocatable and modular structures with virtually no maintenance required
- Speedy delivery and installation, as a result of pre-assembled pieces and patented trusses
- FAA approved buildings
- Natural lighting and insulation thanks to our efficient inflatable translucent membranes
- Customized door solutions, delivered by our partners (in compliance with EASA regulation)
- Lightweight foundation system on existing surface
Cladding with sandwich panels up to 200 mm thick
Width – Span for Grand I-novation is max 70 m
Width – Span for Grand Arena is max 115 m
Maximum External Height: 30,8m
Maximum Internal Height: 25,4m
Width of spans: 5m
Structure: CE marked Aluminium 6061T6 CNC and galvanised steel S355
Lift: 3T per gantry or more per study
High hanging loads for crane system or fire suppression system
Quality of cover: Coated Polyester PVC, thickness of 0,65-0,75mm
Type of cover: PVC Translucent – 650 gr/m² (M2) -NFPA 701
Roof Insulation: Double membrane 650gr/m² – U=2,7
Sandwich insulation / padding / panels: Various manufacturers recommended
Eurocode wind loads: Meets local NF Eurocodes
Codes and Standards :
- EN 1991-1-4: 2005 + ANB:2010
- EN 1991-1-3: 2003 + ANB:2007
- North American specifications (ANSI, ASCE)
- International Building codes
