Wide body aircraft hangars
| Company | Spantech |
|---|---|
| Product code | Grand Arena |
Images

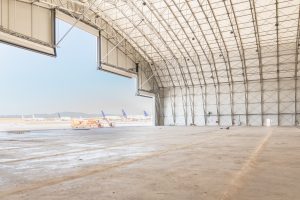

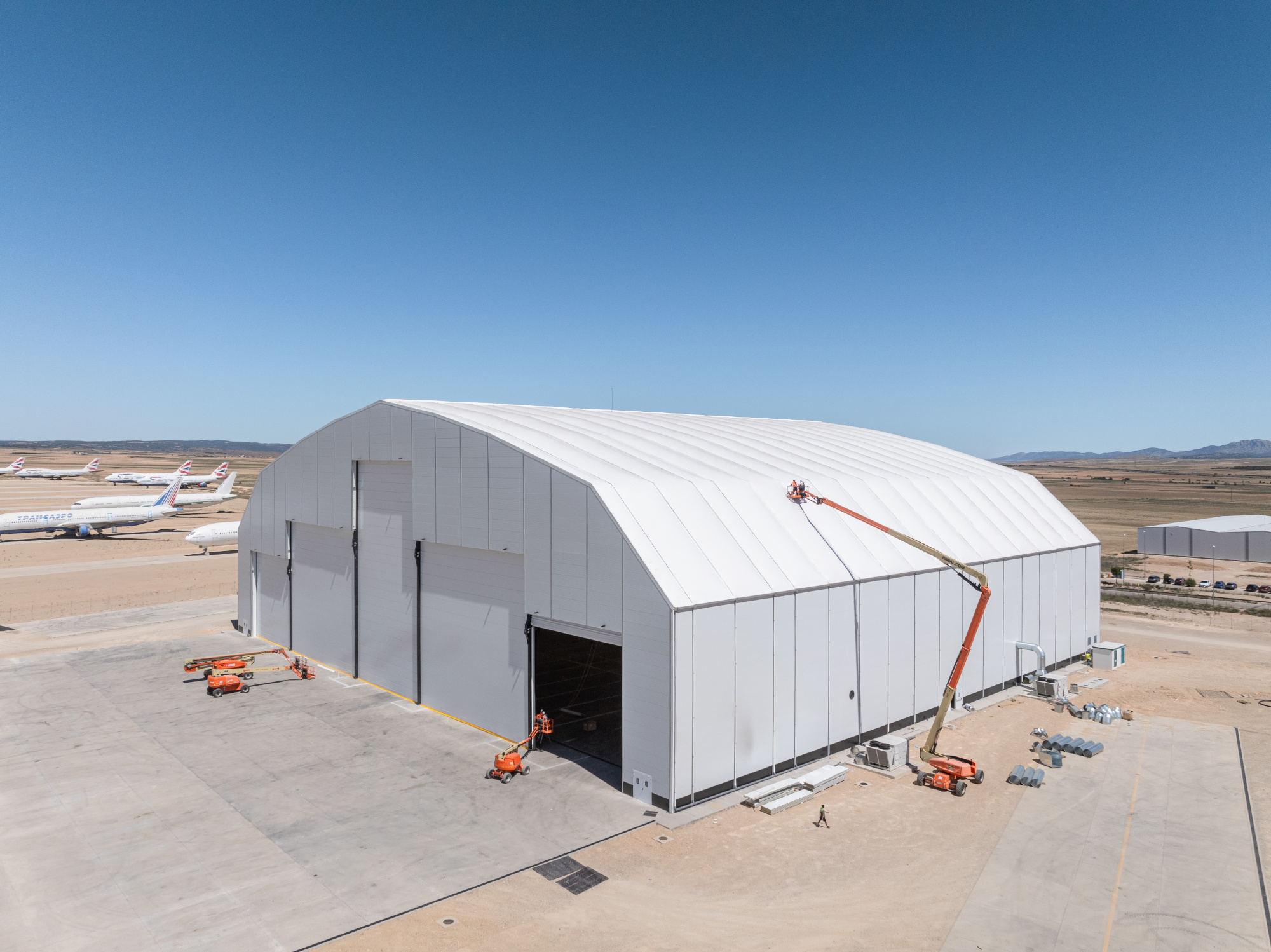

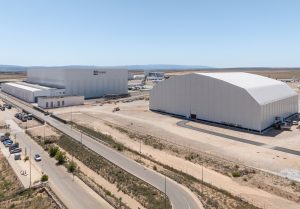

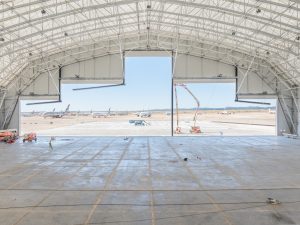

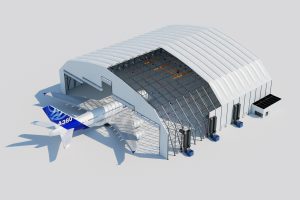

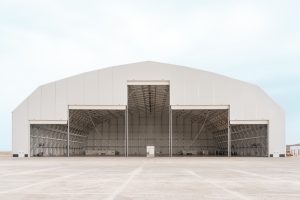

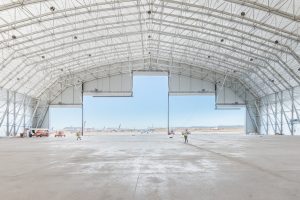

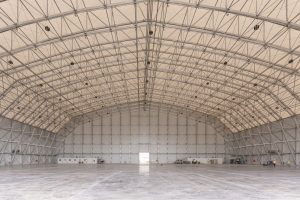

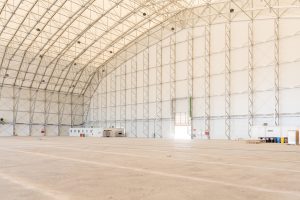

SPANTECH designs, manufactures and installs structures that span up to 115 m, suitable to store wide body aircraft such as the A350, B777, B787. According to the on-site requirements, the following structures can be used:
Grand I-novation (max 70 m span)
Grand Arena (max 115 m span)
SPANTECH’s experience, specific engineering and high-quality materials provide the following advantages to airports, airlines or MRO companies:
- 100% Relocatable and modular structures with virtually no maintenance required
- Speedy delivery and installation, as a result of pre-assembled pieces and patented trusses
- FAA approved buildings
- Natural lighting and insulation thanks to our efficient inflatable translucent membranes
- Customized door solutions, delivered by our partners (in compliance with EASA regulation)
- Lightweight foundation system on existing surface
- High hanging load capacity for crane systems or fire suppression systems
Span for Grand I-novation is max 70 m
Span for Grand Arena is max 115 m
Maximum External Height: 30,8m
Maximum Internal Height: 25,4m
Width of spans: 5m
Structure: CE marked Aluminium 6061T6 CNC and galvanised steel S355
Lift: 3T per gantry or more per study
High hanging loads for crane system or fire suppression system
Quality of cover: Coated Polyester PVC, thickness of 0,65-0,75mm
Type of cover: PVC Translucent – 650 gr/m² (M2) -NFPA 701
Roof Insulation: Double membrane 650gr/m² – U=2,7
Sandwich insulation / padding / panels: Various manufacturers recommended
Eurocode wind loads: Meets local NF Eurocodes
Codes and Standards :
- EN 1991-1-4: 2005 + ANB:2010
- EN 1991-1-3: 2003 + ANB:2007
- North American specifications (ANSI, ASCE)
- International Building codes
Other Products From Spantech

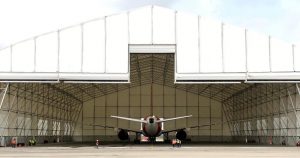

Narrow body aircraft hangars
