RB4020/5025 single-track roller conveyor
| Company | Montech AG |
|---|
Images

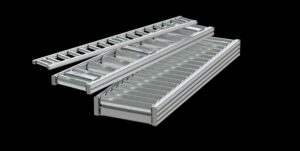

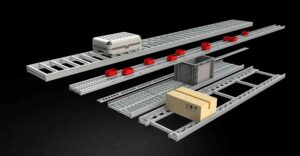

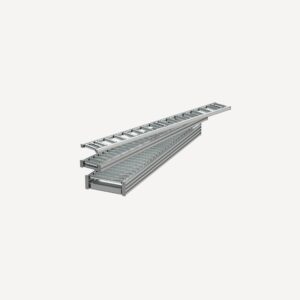

The RB4020/5025 single-track roller conveyor is a linear transport system with precision-bearing support rollers. The RB4020 roller conveyor is equipped with a 20 mm support roller and is ideal for smaller or lighter conveyed goods. The RB5025 roller conveyor features 50 mm support rollers, making it well-suited for larger or heavier products. For both sizes, conveyor width, roller spacing, and track length can be specified to the millimeter, enabling precise matching to different products and plant layouts. It is ideal for areas where goods are transported individually or in a controlled manner – for example, in feed sections, test stations, or manual handling areas. Thanks to its modular design, this single-track roller conveyor can be extended easily or adapted to new process requirements.
RB4020/5025 single-track roller conveyor
| Specification | RB4020 | RB5025 |
| Idler roller Ø | 20 mm | 50 mm |
| Conveying width | 65 – 80 mm | 85 – 1000 mm |
| Center distance | 31 – 132 mm | 62 – 200 mm |
| Conveyed material length | min. 93 mm | min. 186 mm |
| Frame height | 20 / 40 / 80 mm | 50 / 100 mm |
| Max. conveyor length | 3000 mm | 3000 mm |
| Load capacity per roller | max. 9 kg* | 20 kg |
| Idler roller material | Tube: steel, galvanizedBearings: plastic and stainless steel | Tube: steel, galvanizedBearings: plastic and stainless steel |
| Frame material | Aluminum, clear anodizedSteel, galvanizedPA | Aluminum, clear anodizedSteel, galvanizedPA |
| Substructure | Adjustable or custom working height up to max. 1200 mm | Adjustable or custom working height up to max. 1200 mm |
* Load capacity decreases above 400 mm length.
