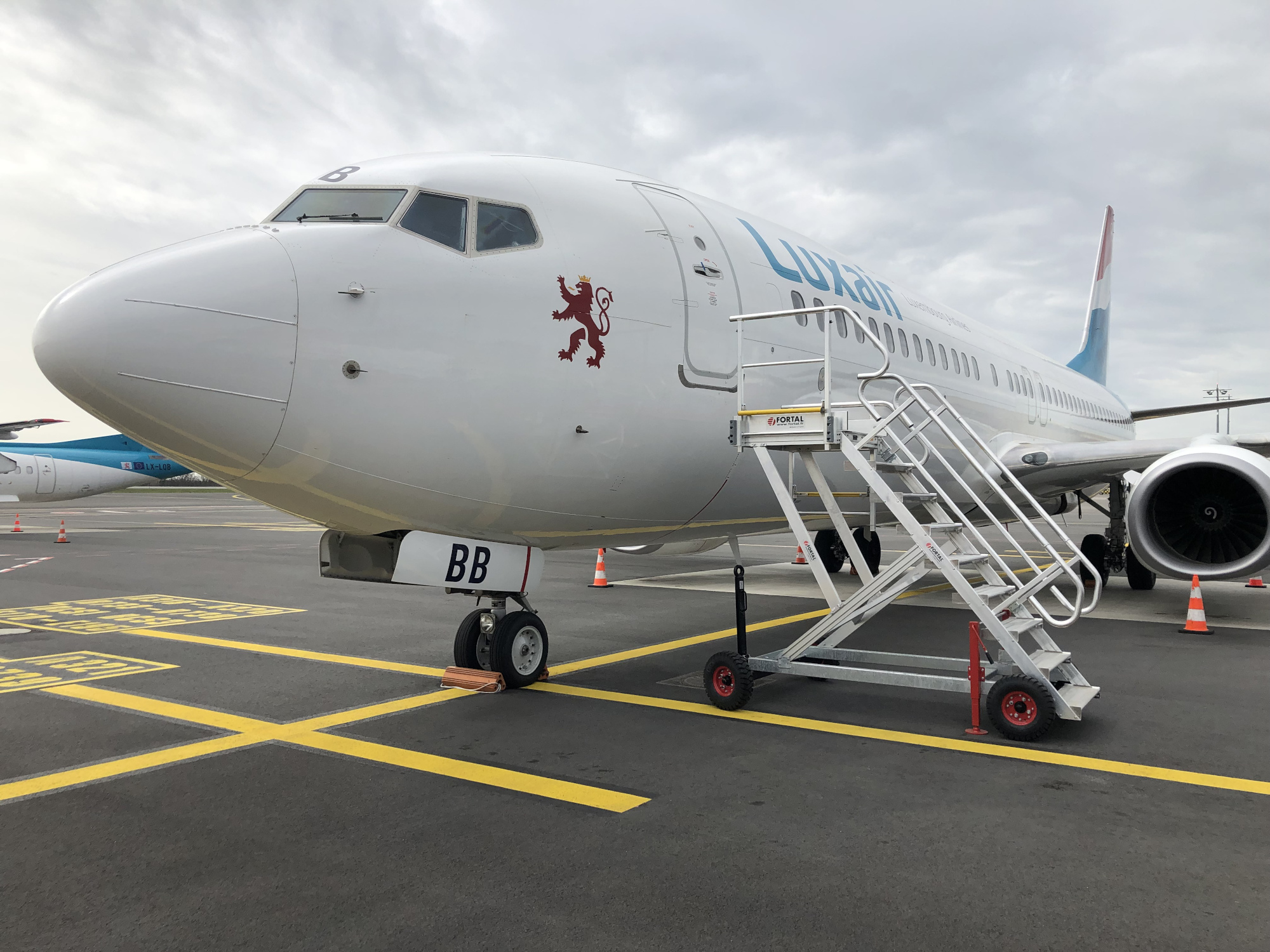

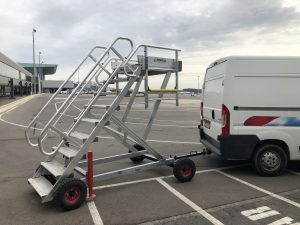

Runway mobile platform 25km/h
| Company | FORTAL |
|---|
Images
Description
Specifications

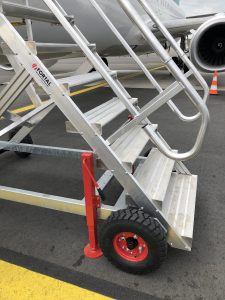

From 6 to 14 steps – Platform height from 1500 to 3500 mm ( top platfom 940 x 1000 mm or 2500×1250 mm) and working heights from 2500 to 5500 mm – Steps : useful width : 940 mm, made of non-slip aluminum steps depth 261 mm, screwed on the profil – Tilt 50° – aluminum sheet covery thickness 3/4.5 mm – 2 linked jacks stabilizers for immobilization of the stepladder – Wheels : 2 fixed wheels Ø 468 mm on the front side and 2 articulated wheels Ø 468 mm on the rear side mounted on directional axels
– Sliding side guardrails composed of a handrail, a middle rail and a baseboard height 150 mm
– Aluminum ramp composed of a handrail and a middle rail – Grey shock protection, non-marking on the front side of the platform …
- Hot galvanized steel frame
- Structure in 100 x 30 mm aluminum profiles from the series 6000
- Assembly by screws
- Standard reference: EN 12 312-8
- Models with standard bearing: 1 person + tools – 165 kg
- Models with wide bearing: 2 persons + tools – 200 kg
Option :
- Yellow coating on 1st step (RAL 1023)
