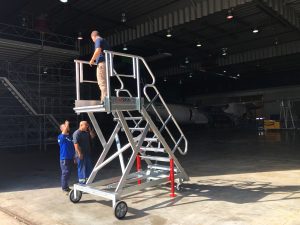

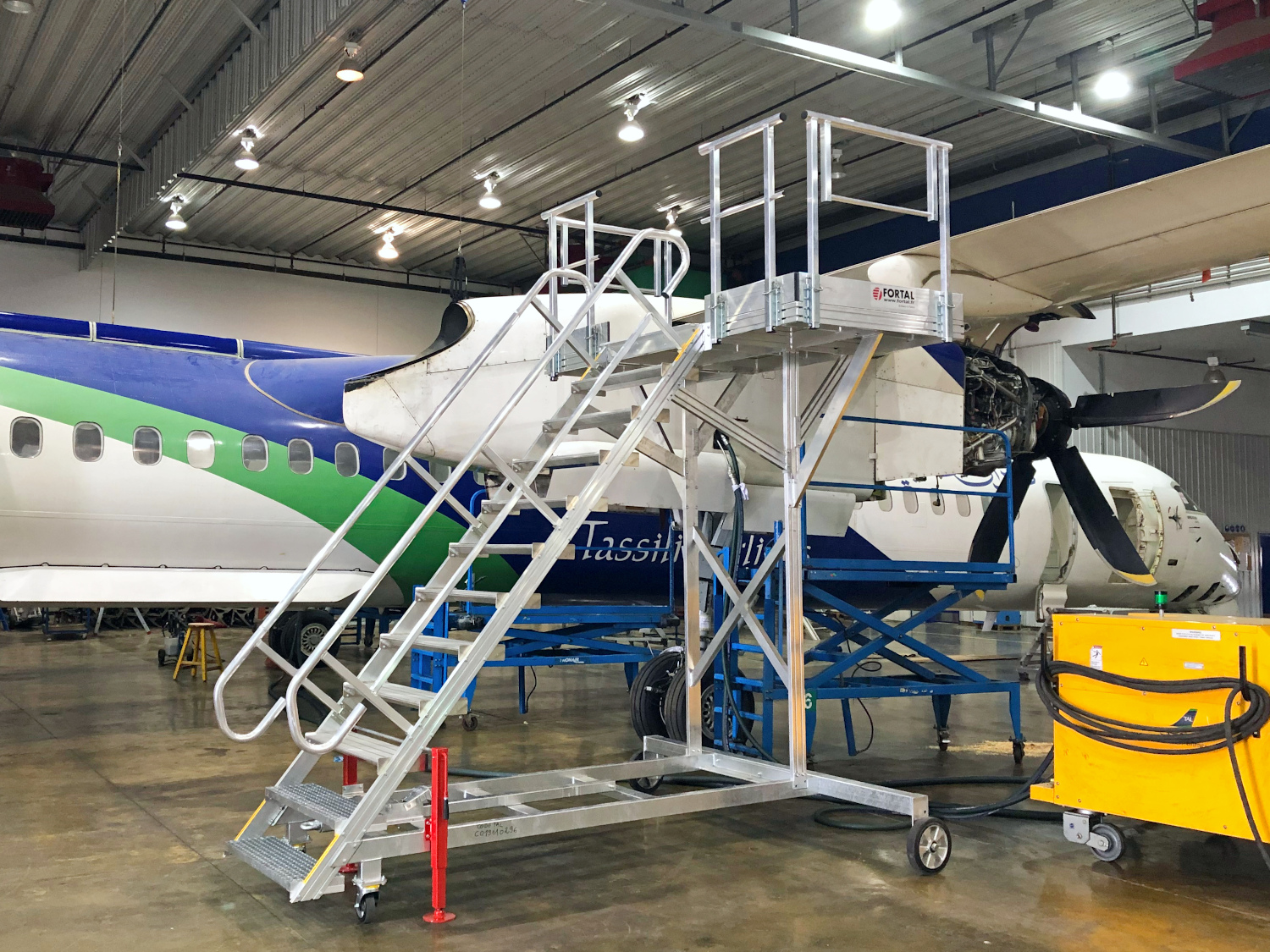

Runway towable aeronautical stepladders
| Company | FORTAL |
|---|---|
| Product code | F891900183 – F891900184 – F891900185 |
Images
Description
Specifications
12-steps runway stepladder features:
- steel frame support
- wide bearing with fixed guardrails
- fixed wheels Ø300 mm on the rear – swivel wheels with brake Ø160 mm on the front
- retractable towbar and 2 first steps in galvanised steel grating
- assembled by standards screws
- standard reference: EN 12 312-8
- capacity of load: 200 kg
8-steps runway stepladder features:
- steel frame support
- standard bearing with sliding guardrails
- fixed wheels Ø300 mm on the rear – swivel wheels with brake Ø160 mm on the front
- retractable towbar and 2 first steps in galvanised steel grating
- assembled by standards screws
- standard reference: EN 12 312-8
- capacity of load: 165 kg

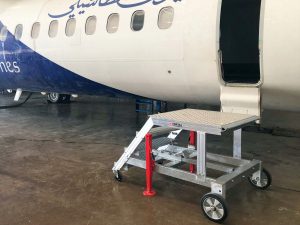

4-steps runway stepladder features:
- steel frame support
- standard bearing
- fixed wheels Ø300 mm on the rear – swivel wheels with brake Ø160 mm on the front
- retractable towbar and 2 first steps in galvanised steel grating
- assembled by standards screws
- standard reference: EN 12 312-8
Maximal speed : 5 km/h
12-steps model :
- bearing height : 3 000 mm
- floor space dimensions L x l : 3 410 x 2 200 mm
- weight : 308 kg
8-steps model :
- bearing height : 2 000 mm
- floor space dimensions L x l : 2 570 x1 600 mm
- weight : 226 kg
4-steps model :
- bearing height : 1 000 mm
- floor space dimensions L x l : 1 730 x 1 360 mm
- weight : 126 kg
