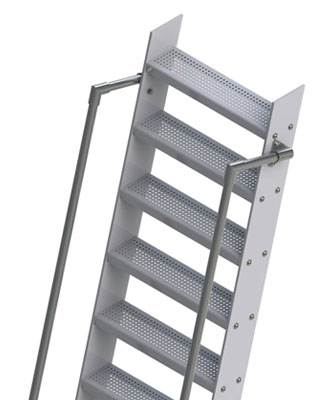

BILCO Companionway Ladders provide permanent, secure access to a roof hatch and are suitable for situations where the rise is less than 3 metres. The Companionway Ladder is available in a range of sizes to suit most site locations and conditions.
Our Companionway Ladders are available in Aluminium construction and are fully compliant with the recommendations of BS EN ISO 14122-03 2001 + A1 2010, BS 4211-2005+A12008 and BS 5395 Part 3.
Features / Benefits
Available in standard or bespoke sizes to satisfy many access requirements or installations.
Guide Specification Type BL Companionway Ladder
LADDER | Aluminium: Punched Aluminium treads |
STAND OFF BRACKETS | 50mm x 10mm alloy rectangular bar |
FIXINGS | Aluminium |
LADDER WIDTH | 600mm (Tread width 500mm) |
FINISH | Aluminium: All Alloy Mill Finish |
GRAB RAIL HEIGHT | 100mm (nom) |
LADDER ANGLE | 75 degrees (nom) |
