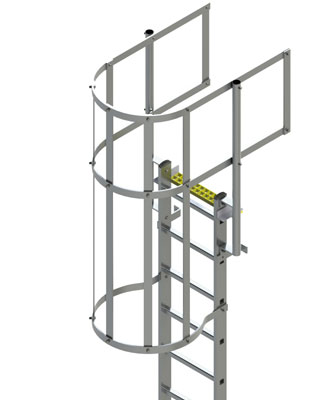

TYPE BL-WG Fixed Ladder with Safety Cage + Guard Rail
Company | BILCO UK |
---|
Images

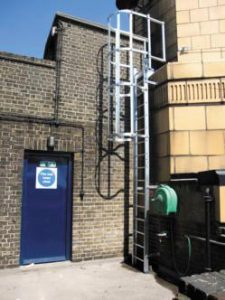

The BILCO TYPE BL-WG industrial Fixed Vertical Ladder with Safety Cage and Guard Rail is available in standard sizes for floor to ceiling heights of 2 – 6m. It is designed for external ladder access or in situations where a ladder is used by personnel to move from one level to another without using an access hatch. Special sizes are available upon request.
Manufactured in Aluminium to meet the requirements of BS4211: 2005 + A1: 2008.
Features / Benefits
Constructed with corrosion-resistant materials to provide many years of trouble-free, dependable service.
Available in standard or bespoke sizes to satisfy any access requirement or installation.
Choose from Aluminium options in a range of standard sizes.
Fully compliant to BS4211: 2005 + A1: 2008
Guide Specification Fixed Ladder with Safety Cage + Guard Rail
LADDER | Aluminium: Alloy Class 1; |
STILES | Aluminium: 73mm x 25mm box section; |
BRACKETS | Aluminium: 50mm x 10mm alloy rectangular bar; |
RUNG | Aluminium: Class 1 heavy duty; |
FINISH | Aluminium: Alloy Mill Finish; |
SAFETY CAGE | Cages above 2200-3000mm |
STRAP | 50mm x 10mm flat bar. 5 No Straps as BS4211: 2005 + A1: 2008 |
FIXINGS | Dome head bolts |
WIDTH | 488mm |
