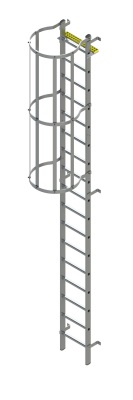

TYPE BL-WH Fixed Ladder with Safety Cage
| Company | BILCO UK |
|---|
Images
The BILCO TYPE BL-WH industrial Fixed Vertical Ladder with Safety Cage is available in standard sizes for floor to ceiling heights of 2 – 6m. The fixed Safety Cage is designed to sit below a Roof Access Hatch at heights above 2.2 – 3m. Bespoke sizes are available for special application on request.
Our TYPE BL Fixed Vertical Ladder with Safety Cage is manufactured in Aluminium to meet the requirements of BS4211: 2005 + A1: 2008.
Features / Benefits
Constructed with corrosion-resistant materials to provide many years of trouble-free, dependable service.
Available in standard or bespoke sizes to satisfy any access requirement or installation.
Choose from Aluminium options in a range of standard sizes.
Fully compliant to BS4211: 2005 + A1: 2008
Guide Specification Fixed Ladder with Safety Cage
| LADDER | Aluminium: Alloy Class 1 |
| STILES | Aluminium: 73mm x 25mm box section; |
| BRACKETS | Aluminium: 50mm x 10mm alloy rectangular bar; |
| RUNG | Aluminium: Class 1 heavy duty; |
| FINISH | Aluminium: Alloy Mill Finish; |
| SAFETY CAGE | Cages above 2200-3000mm |
| STRAP | 50mm x 10mm flat bar. 5 No Straps as BS4211: 2005 + A1: 2008 |
| FIXINGS | Dome head bolts |
| WIDTH | 488mm |
