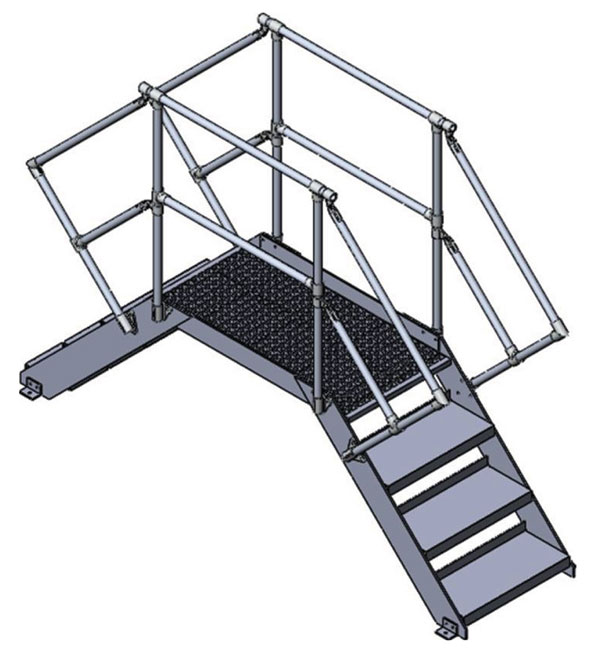

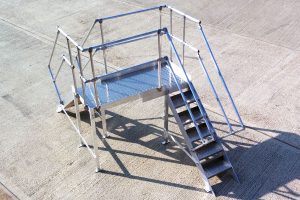

TYPE BP45 Stepover Ladders
| Company | BILCO UK |
|---|
Images
Description
Specifications
BILCO Stepover Ladders provide the perfect solution where access is required over ducting, parapet walls, conduit or any other obstruction on the roof area. The Stepover Ladder is available in free-standing or fixed to the roof options to provide permanent, safe access.
Compliant with Work at Height Regulations and where applicable BS 5395-3: 1985
Features / Benefits
Stepover units provide flexible access over a range of widths and heights while keeping the operative enclosed by a handrail on both sides at all times.
Manufactured to bespoke sizes to suit your requirement.
Compliant with Work at Height Regulations and where applicable BS 5395-3: 1985.
Guide Specification Stepover Ladders
| LADDER | Aluminium: Aluminium stiles |
| TREADS | Aluminium: folded chequer plate treads |
| HANDRAIL | 900mm (nom) |
| WIDTH | 600mm |
| PLATFORM | Aluminium: sections with a GRP open mesh platform deck |
| PLATFORM TOP RAIL | 35mm diameter tube / 1100mm above surface of decking (handrails to both sides) |
| FINISH | Aluminium: Mill finish |
| HARDWARE | Aluminium |
| FIXINGS | Dome internal fixings |
| LADDER ANGLE | 45 degrees (nom) |
