TYPE J-AL/JD-AL 300PSF Floor Access Doors with Drainage
| Company | BILCO UK |
|---|
Images

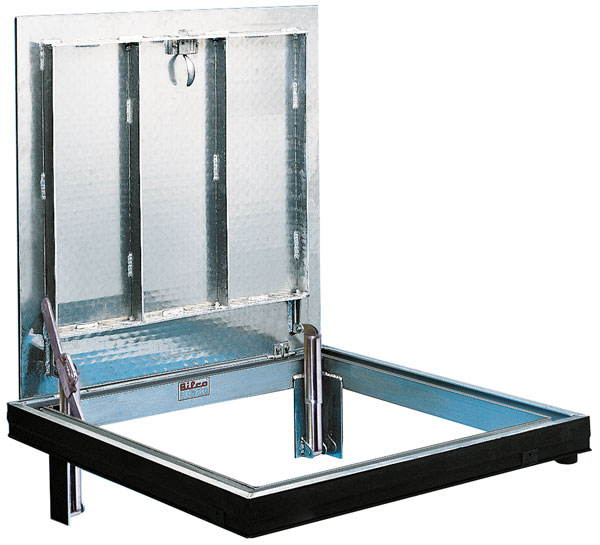

J-AL/JD-AL Floor Access Doors are constructed with a channel frame and are suitable for use in exterior or other applications, where there is concern of water or other liquids entering the access opening. Ideal for most corrosive environments, constructed of 6mm diamond pattern plate and reinforced for a 1464kg/m² live load.
Features anti-corrosion hardware, standard debris gasket and versatile anchoring system for ease of installation. Available in a number of standard single leaf (TYPE J-AL) and double leaf (TYPE JD-AL) sizes.
Features / Benefits
Suitable for areas up to 300psf loading
Single and double leaf Floor Access Doors with channel drainage – suitable for exterior applications.
Engineered with lift assistance for smooth, easy one-hand door operation, regardless of size.
Automatic hold-open arm locks the cover in the open position to ensure safe egress.
Constructed with corrosion-resistant materials to provide many years of trouble-free, dependable service.
Heavy-duty construction and positive latching mechanism help to prevent unauthorized access.
Standard Stainless Steel Type 316 hardware
Available in a number of standard and special sizes to satisfy any requirement.
5 year warranty
Guide Specification TYPE J-AL / JD-AL
| MATERIAL | 1/4″ (6mm) Aluminium cover and extruded Aluminium frame |
| COVER | Diamond pattern tread plate reinforced for 300psf (1464 kg/m²) live load |
| FRAME | Extruded Aluminium channel frame with bend down anchor tabs around the perimeter. A 1-1/2″ (38mm) drain coupling is welded under the frame for a pipe connection to a dry well or disposal system. |
| HINGES | Heavy-duty Stainless Steel Type 316 hinges with 1/4″ (6mm) Stainless Steel Type 316 hinge pins. |
| LATCH | Type 316 stainless steel slam lock with fixed interior handle and removable exterior turn/lift handle. Latch release is protected by a flush, gasketed, removable screw plug. |
| LIFT ASSISTANCE | Compression spring operators enclosed in telescopic tubes. Automatic hold-open arm with release handle automatically locks cover(s) in the open position. |
| FINISH | Mill finish Aluminium with a bituminous coating applied to the exterior of the frame. |
| HARDWARE | Stainless Steel Type 316 throughout |
