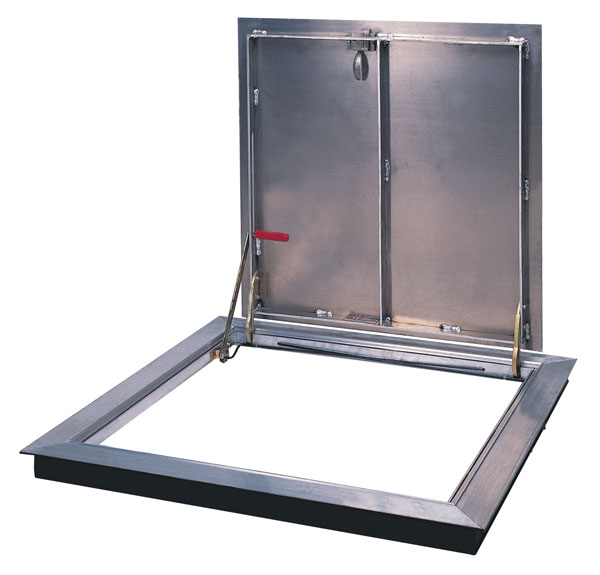

TYPE K / KD - 150PSF Interior Floor Access Doors
Company | BILCO UK |
---|
Images
TYPE K/KD Floor Access Doors are generally specified for interior or other applications where water or liquid infiltration into the access opening is not a concern. Constructed of 6mm diamond pattern plate and reinforced for a 732kg/m² live load.
Available in a number of standard single leaf (TYPE K) and double leaf (TYPE KD) sizes. Special sizes can be specified for bespoke access requirements.
Features / Benefits
Suitable for dry areas with pedestrian (150psf) loading.
Single and double leaf floor doors – suitable for interior applications.
Engineered with lift assistance for smooth, easy one-hand door operation, for all sizes.
Automatic hold-open arm locks the cover in the open position to ensure safe egress.
Constructed with corrosion-resistant materials to provide many years of trouble-free, dependable service.
Heavy-duty construction and positive latching mechanism help to prevent unauthorized access.
Available in a range of standard sizes to satisfy many requirements.
5 year warranty
Guide Specification TYPE K / KD
MATERIAL | 1/4″ (6mm) Aluminium cover and extruded Aluminium frame |
COVER | Diamond pattern tread plate reinforced for 150psf (732 kg/m²) live load. |
FRAME | Extruded Aluminium angle frame with strap anchors bolted around the perimeter. |
HINGES | Cast Steel cam-action hinges that are concealed from the exterior of the door. |
LATCH | Stainless Steel Type 316 slam lock with fixed interior handle and removable exterior turn/lift handle. |
LIFT ASSISTANCE | Torsion bars that pivot on cam-action hinges. Automatic hold-open arm with grip handle release. |
FINISH | Mill finish Aluminium with a bituminous coating applied to the exterior of the frame |
HARDWARE | Zinc plated/chromate sealed |
