VHF Ground Station

Description
Specifications

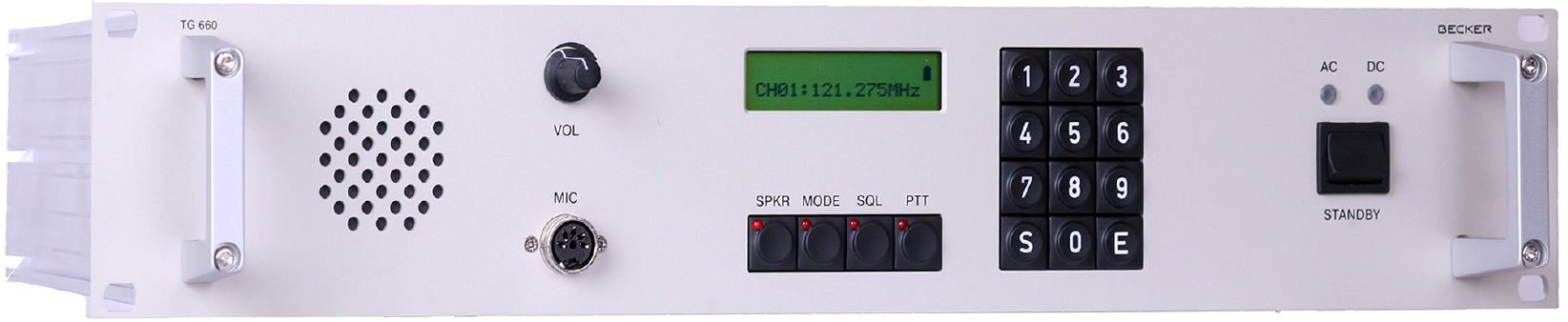

Field-proven and versatile VHF base station suited for air traffic control and mission critical applications. Fitted with Radio over IP capability and available in 6 to 50W RF power output configurations, the TG660 radio station provides a cost-efficient and durable design. Becker offers an efficient product for air traffic management applications intended to respond to the latest requirements and the needs of ATM operators.

It can be installed in 19″racks or in ATC desks as a main or as a standby transceiver for ground to air communication purposes.

  • RF Power: 6, 10, 25 and 50 W power variants
  • Channel spacing: 25 and 8.33 kHz
  • Frequency range: 118.000-136.990 MHz
  • Power supply 100-230 VAC or 24 VDC (battery option)
  • LEDs for operating status indication
  • Direct or remote operation
  • Radio over IP operation (RoIP)
  • Protected against stuck PTT
  • Protected against short circuit on the PTT line
  • Protected against antenna mismatch Maintenance-free
  • Compliant with ETSI standards and type approved for ATM applications
