VidTroniX ATP3
| Company | VidTroniX LLC |
|---|---|
| Product code | ATP3 |
Images

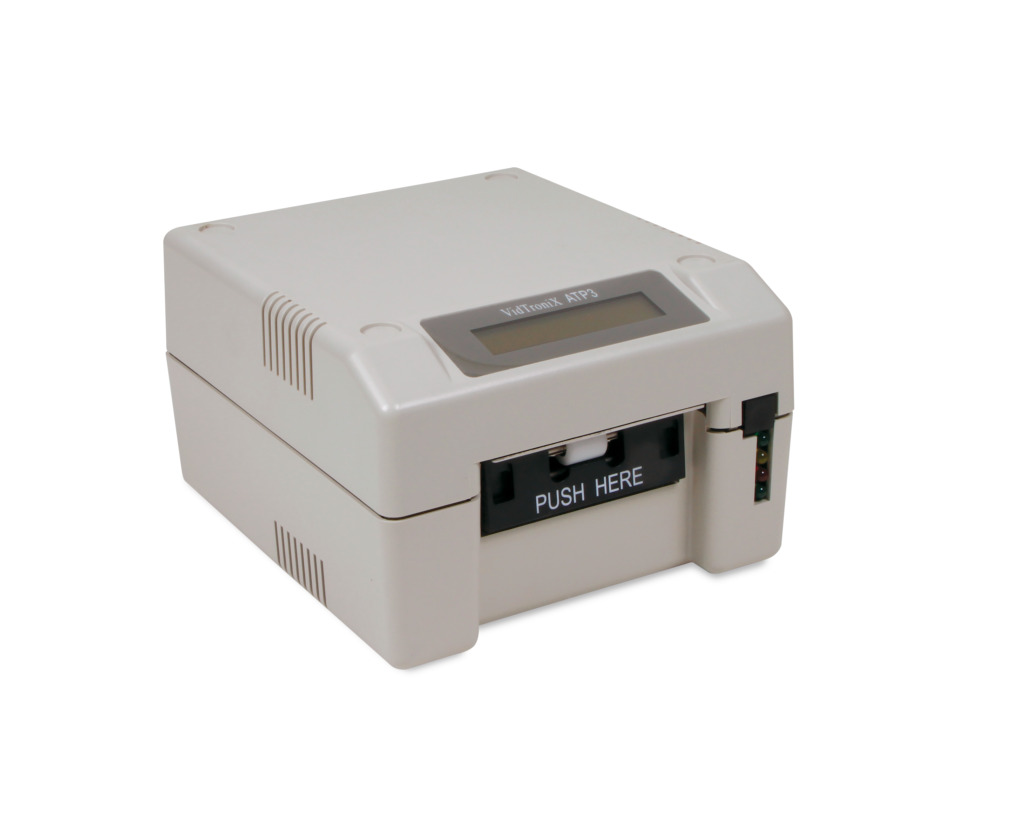

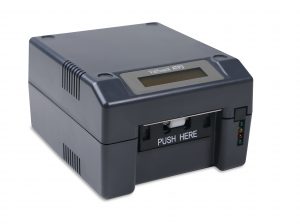

The VidTroniX ATP3 is a single path travel document printer that is able to accommodate either boarding pass or baggage tags by automatically adjusting between stock types without any agent intervention. The ATP3 is the fourth generation of the original machine and offers metal gearing, multiple interface types and with its minute size it can be easily positioned within most existing cabinet space. Each printer is individually tested using the customer’s stock and data message to ensure that the printers will operate properly upon receipt, which prevents needless troubleshooting and adjustments.
DIMENSIONS (HxWxL)
DISPLAY: 100 x 155 x 177 mm | 3.9 x 6.1 x 7″
NON-DISPLAY: 88 x 155 x 177 mm | 3.5 x 6.1 x 7″
WEIGHT
<2.3KG (5LBS)
PRINT TECHNOLOGY
Direct thermal
PRINT SPEED
Up to 6 inches per second
Up to 30 coupons per minute
PRINT RESOLUTION
203 dpi or 300 dpi
PRINT HEAD REPLACEMENT
1/2 Minute – no tools required
PAPER HANDLING
Straight paper paths, no curves to jams
PAPER WIDTH
2.125″ (bag tag)
3.250″ (ticket and boarding pass)
ELECTRONICS
Microprocessor controlled
Power backed RAM
Standard flash ROM
Optional flash ROM 2MB
SOFTWARE
Standard fonts available in a variety of sizes
Logo PCX format handling
Fully compatible with IATA/AEA spec
SYSTEM INTERFACE
Host – RS232C to 38,400 baud
Bag Tag Host – RS232C to 38,400 baud
Connectors RJ45, AEA 2002 compatible
Optional USB and IP available interfaces
POWER SUPPLY
A/C power: universal input
100-240V~1.8A, 50-60Hz
OPERATOR CONTROLS
Operator switch, and LED indicators
OPTIONS
Integrated RFID Module Gen 0, Gen 1, Gen 2
