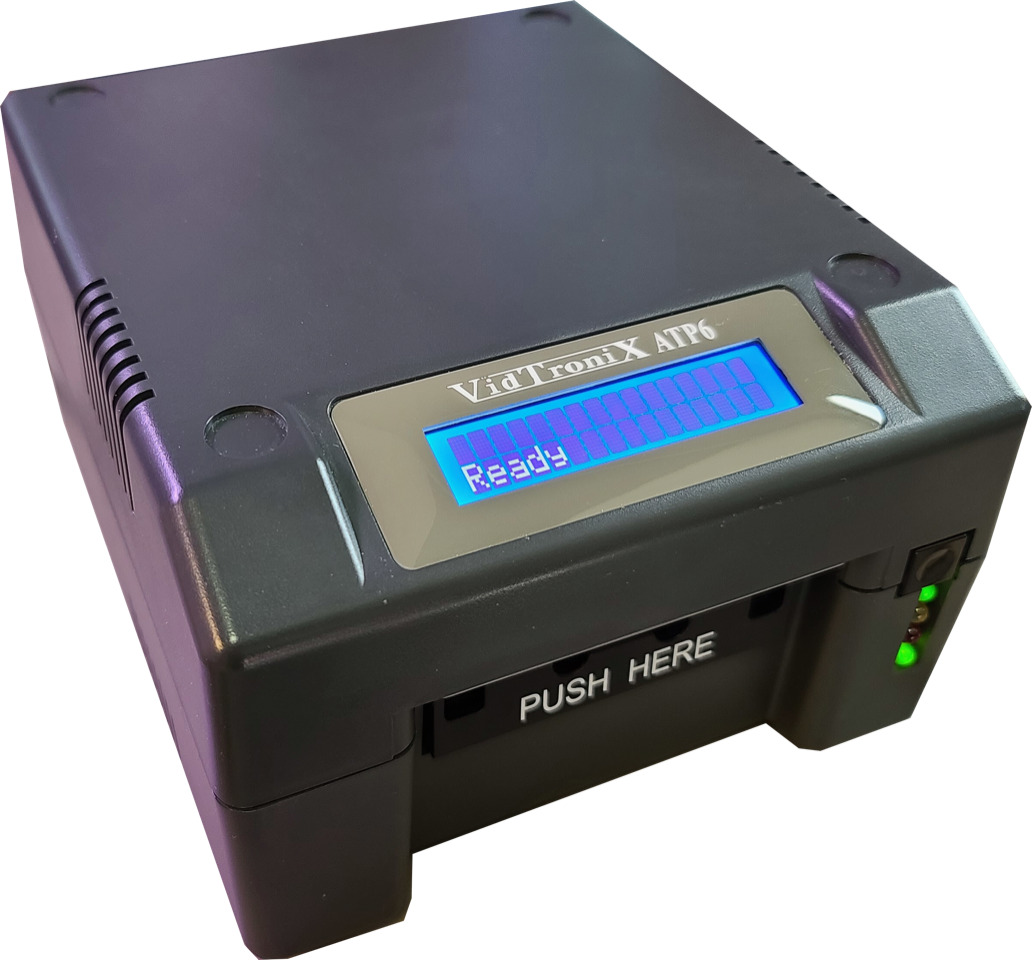

VidTroniX ATP6
| Company | VidTroniX LLC |
|---|---|
| Product code | ATP6 |
Images
The VidTroniX ATP6 is a single path printer that is able to accommodate either boarding passes or baggage tags by automatically adjusting between stock types, without any agent intervention. The ATP6 printer is the sixth generation of the original printer and offers both wireless and Bluetooth connectivity along with 10 ips print speeds. The embedded Linux operating system facilitates ATP6 remote management and integration into a user’s custom application.
DIMENSIONS (HxWxL)
100 x 155 x 177 mm | 3.9″ x 6.1″ x 7″
WEIGHT
<2.3 kg (5lbs)
PRINT TECHNOLOGY
Direct thermal
PRINT SPEED
Up to 10 Inches per second
Up to 38 coupons per minute
PRINT RESOLUTION
203 dots per inch standard
300 dots per inch is optional
PRINT HEAD REPLACEMENT
1/2 Minute – no tools required
PAPER HANDLING
Straight paper paths, no curves to jams
PAPER WIDTH
2.125 Inches (bag tag)
3.250 inches (ticket and boarding pass)
ELECTRONICS
• Dual processor design
• 200 MHz MCU controls print motion and printing
• 400 MHz System-On-Mondule with embedded Linux OS. Provides communication services, print imaging and process control
• 100 MB of file space with 60 MB unused
• 256 MB of RAM with 208 unused
SOFTWARE
Standard fonts available in a variety of sizes
Logo PCX format handling
Fully compatible with IATA/AEA spec
SYSTEM INTERFACE
• RS-232 (up to 921600 baud rate)
• WiFi 802.11 a/b/g/n/ac
• Internal antenna with optional eternal support
• Bluetooth 4.2 dual mode
• USB/Serial (up to 921600 baud rate)
• Optional 10/100 Ethernet
• MicroSD and USB Flash drive support for program updates
POWER SUPPLY
A/C power: universal input
100-240V~1.8A, 50-60Hz
OPERATOR CONTROLS
Operator switch, and LED indicators
OPTIONS
LCD Display (2 rows/16 characters/backlit)
Burster Blade for separating tickets/bag tags
Integrated RFID Module Gen 0, Gen 1, Gen 2
Paper Roll Holder for rolled stock
