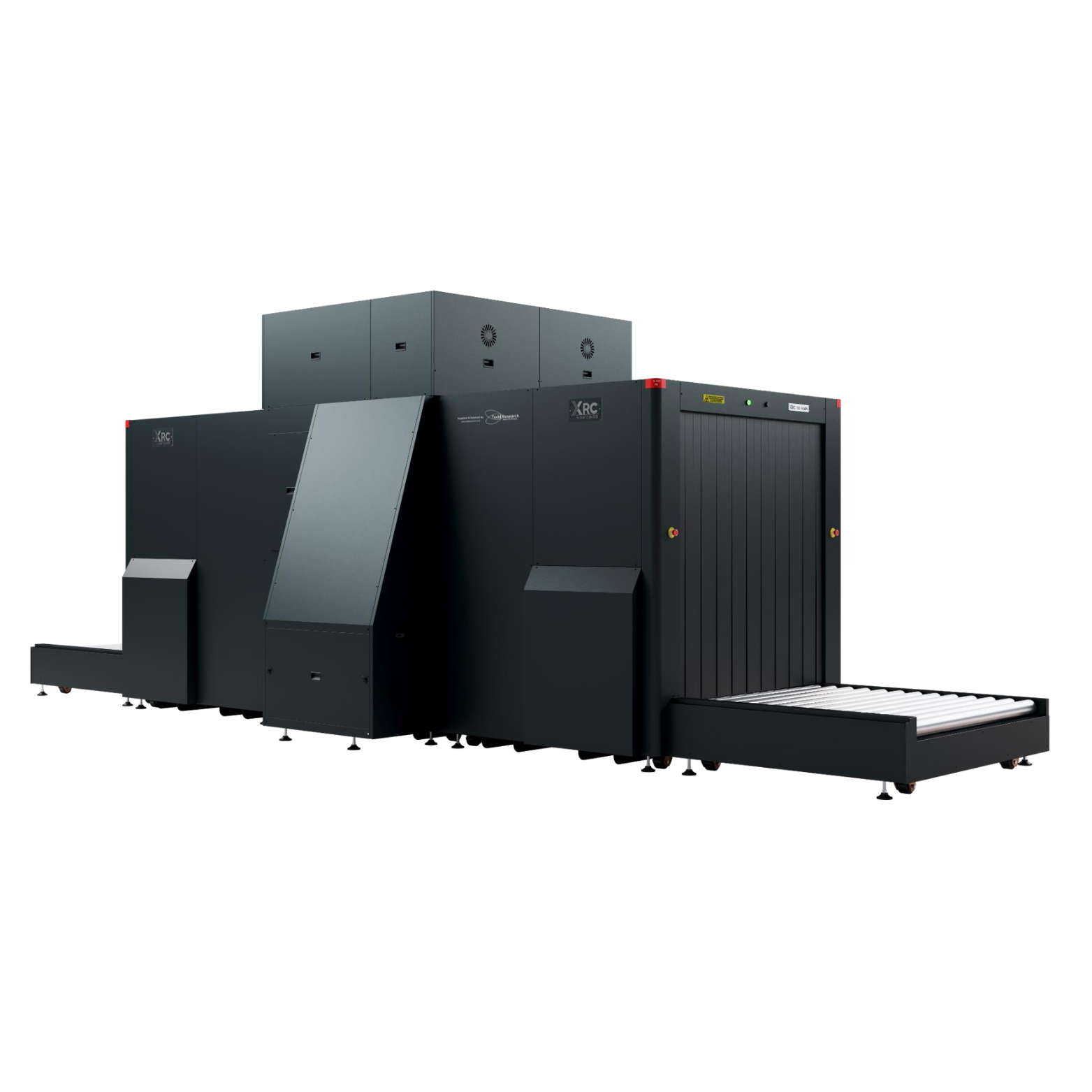

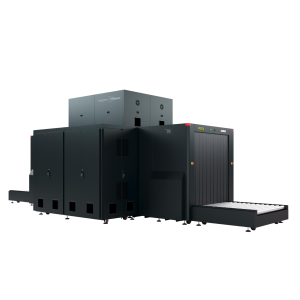

XRC 150-165DV 200kV / 320kV Conveyor x-ray scanner
| Company | Todd Research Ltd |
|---|---|
| Product code | XRC 150-165DV |
Images
Description
Specifications

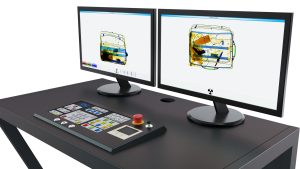

The XRC 150-165DV (available in both 200kV and 320kV) is equipped with state-of-the-art image processing technology and advanced software features, ensuring exceptionally high-resolution and detailed imaging from both horizontal and vertical perspectives. Its dual-view capability allows users to capture comprehensive images in a single scan, eliminating the need to reposition or reorient items.
The XRC 150-165DV is fully compliant with Department for Transport (DfT) specifications, meeting the highest industry standards for safety and efficiency. Designed for seamless operation in security environments, the XRC 150-165DV provides reliable and accurate results, ensuring optimal performance for a wide range of screening applications.
- Tunnel Size: Width 1540mm x Height 1660mm
- Dimensions: Length 8180mm x Height 2865mm x Width 2505mm
- Approximate Weight: 6100kg
- Conveyor Height: 385mm
- Conveyor Load Capacity: 3000kg
- System Power: 110/220V AC ±10%50/60 Hz, 5 amp max
- Conveyor Speed: 0.20 m/sec. Forward or Reverse
- Steel Penetration: 50mm guaranteed, 52mm typical
- 1 Wire Resolution: 36 AWG guaranteed, 38 AWG typical
- Tube Current: 1.2mA
- Storage / Operating Temperature: -20°C to 50°C / 0°C to 40°C
Other Products From Todd Research Ltd
Super Scanner V Handheld Metal Detector
The Garrett Super Scanner V handheld metal detector, distributed by Todd Research, is a trusted and highly efficient security tool designed for precise, on-the-spot detection of metallic threats.
Renowned for its sensitivity and durability, the Super …

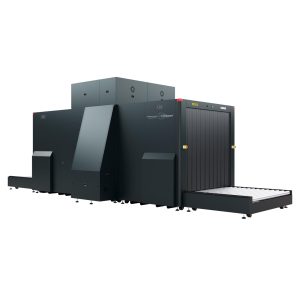

XRC 180-180DV 200kV Conveyor X-ray Scanner
The XRC 180-180DV, offered by Todd Research, is a dual-view X-ray scanner engineered for high-capacity screening of oversized baggage and cargo in busy environments such as airports, shipping hubs, and secure facilities.
Boasting a large tunnel …
Video

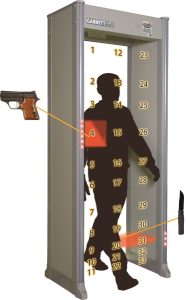

PD6500i Walkthrough Metal Detector
