Fencing systems in FRP

Since its inception in 1977, M.M. has been operating in the Fiberglass Reinforced Polymers (FRP) industry, producing high quality gratings and structures (handrails, walkways, stairways, ladders, fences, gates, etc.). The intrinsic properties of FRP allow to create light, resistant and easy to install structures that do not require maintenance and are characterised by great versatility of use.

M.M. has developed fencing systems suitable for the airports. These systems are the ideal solution to protect the sensitive areas of the airports. Fences are used to delimit airport perimeters and the radar systems in order to prevent the accidental or intentional entrance of non-authorized people and animals.

M.M. fences comply with ICAO frangibility requirements, both in terms of loads transmitted and in terms of energy absorbed in the event of a collision and ensure that there is no loss of control of the aircraft after the impact.

The airport fences of M.M. are made with risers in FRP pultruded profiles and FRP gratings or mesh. The risers are embedded directly into concrete foundations in the ground or fastened to them with base plates. The distance between the risers, as well as between the braces, is calculated in accordance with the acting loads (Wind, Jet-Blast,…) and the height. The height of standard solutions ranges from 1 to 2.5 m. Moreover, the fence can be equipped with one or two sloped arms for barbed wire/concertina.

The fence is supplied as kit thus can be installed quickly. There is no need to use of specific lifting equipment that may interfere with the daily take-off and landing activities.

M.M. fencing systems are:

  • FRANGIBILE: the possible impact does not result in loss of control of the aircraft.
  • PERMEABLE TO ELECTROMAGNETIC WAVES: the fence does not interfere with any communication system.
  • ELECTRICALLY-INSULATING: no grounding needed.
  • WEATHER-RESISTANT AND UV RAY-RESISTANT: suitable to any environment.
  • LIGHT AND EASY TO INSTALL: provided as kit, no cranes or specific equipment needed; no runway closure during installation.
  • MAINTENANCE-FREE: durable, minimization of maintenance costs.

FRP profiles are CE marked via ETA (European Technical Assessment) according to Regulation EU no. 305/2011 for construction products, and standard profiles made of isophthalic resin. On request they can be produced using other resins to meet specific customer needs.

All profiles feature a polyester surface veil which, impregnated with a large quantity of resin, seals the surface of the profile itself, ensuring protection from UV rays and atmospheric agents and preventing the glass fibers from surfacing

FRP Gratings are certified as long lasting products whose mechanical performance is not affected by the cycles of hot/cold and humidity exposure in accordance with the UNI EN ISO 9142 standard. They have also passed the aging resistance test with cycles of UV exposure in accordance with the ASTM G154 standard; they are supplied with self-extinguishing properties in accordance with EN13501, ASTM E84, ASTM D635, DIN 4102, NFP 92-507 standards.

Our values
M.M.’s mission is to reach customers’ satisfaction by providing them with a large offer.

The personnel in its whole – sales and marketing managers, technical experts and product managers – work together in order to reach this goal.

The technical team is able to elaborate almost any kind of composite solution, whether simple or complex – often customized solutions – always assuring high quality and precision.

Products

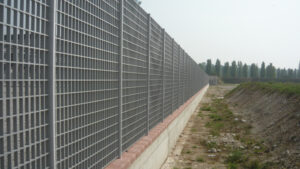

AIRPORT FENCES IN FRP GRATINGS

Frangible and radio transparent, it is manufactured from box type pultruded profiles and FRP gratings and used as perimeter security fences. To ease the installation phase, M.M. fences are supplied in panels that are easy to …

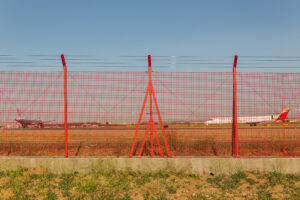

AIRPORT FENCES IN FRP MESH

Airport fences are made with FRP mesh and pultruded profiles and work as perimeter fences. They are radio transparent, meaning permeable to electromagnetic waves, and frangible. They are security fences compliant with the frangibility requirements …

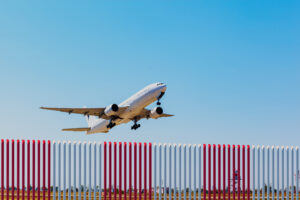

AIRPORT FENCE IN FRP PROFILES

Also known as ‘organ pipe fences’, they are manufactured using FRP profiles with different geometry for the uprights and feature multiple heights and spacings. To ease the installation phase, the M.M. pipe organ fences are …

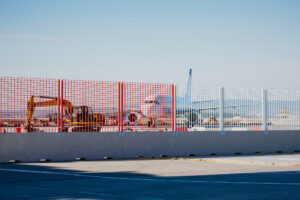

SAFETY BARRIERS IN FRP PROFILES AND GRATINGS

Designed to define manoeuvring areas, enclose construction zones, or create taxiways, they are a modular solution made with fiberglass profiles and gratings (FRP) for installation on movable barriers like the New Jersey type. They are supplied …

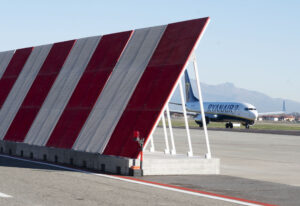

JET BLAST DEFLECTOR IN FRP GRATINGS

M.M’s FRP jet blast deflectors are designed to withstand the heat and jet pressure of aircraft during taxiing and the dust and debris lifted by these jets. These are safety devices capable of redirecting the …

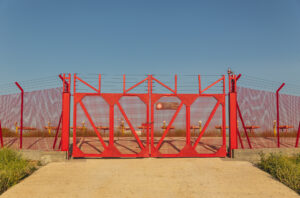

AIRPORT GATE IN FRP

M.M. gates are available with pultruded profiles and mesh or with pultruded profiles and gratings. The gates are prefabricated directly in the factory and are easily fixed to concrete or steel columns. The dimensions can be …
