Airport Runway Rubber Removal – OPTIMUS ARC
Company | NAFFCO Aviation |
---|---|
Product code | OPTIMUS ARC |
Images

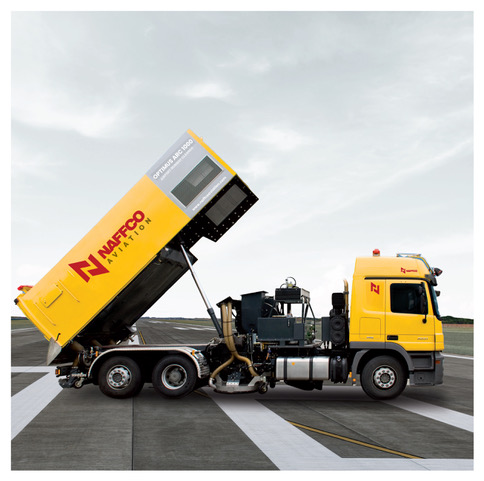

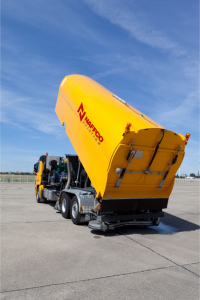

NAFFCO “Optimus” Runway Rubber Removal Machine is developed by renowned German manufacturers, SMETS Technology for the following applications:
- Runway Rubber Removal
- Oil Spills Removal
- Line/Road Marking Removal
- Friction improvement
OUR TECHNOLOGY ENSURES:
- Gentle Treatment of the runway surface.
- Height of the device is adjustable to the ground surface.
- Forward view is not restricted in any way.
- No use of additive, just use of water for the removal of the rubber & paint.
NAFFCO Optimus employs a specifically developed high-pressure water jetting methods that consume the lowest water quantity per treated m2and create the lowest stress for the runway surface. This is granted by an extreme high nozzle speed. High speed create drops and not aggressive jets. The up-to-date software projects the system and every treated surface.
Model | Chasis | Ultra-High PressurePump | Max. WorkingWidth | Tank
Volume |
Optimus ARC 1000 | 3- (standard), 4-, 5-axlechassis or semi-trail-er/tractor version | 140 kW, P max2,500/3,000 barQ max 29 l/min | 1,000 mm, (OPTIONAL –additional
demarking device onopposite side) |
13 m³ standard,optional upto 17 m³ |
Optimus ARC 1600 | 3- (standard), 4- or5-axle chassis | 250 kW, P max2,500/3,000 barQ max 53 l/min | 1,600 mm, (OPTIONAL –additional
demarking device onsecond side) |
17 m³ standard,optional upto 20 m³ |
Optimus ARC 2400 | 3- (standard), 4-, 5-axlechassis or semi-trail-er/tractor version | 250 kW, P max 2,500/3,000bar Q max 53 l/min | 2,400 mm, (OPTIONAL –additional demarkingdevice on 1 or 2 sides) | 17 m³ standard,optional up to
32 m³ (semi-trailerversion) |
Optimus ARC 3000 | Tractor:
3-axle chassis – 6 x 2 Semi Trailer: 3-axle trailer (3 x 9 tons),last axle steerable |
400 kW, P max.2,500/3,000 barQ max. 88 l/min. | 3,000 mm | 18 m³ freshwater tank,
19 m³ wastewater tank |
Optimus ARC 3400 | 3- (standard), 4-, 5-axlechassis or semi-trail-er/tractor version | 400 kW, P max2,500/3,000 barQ max 88 l/min | 3,400 mm | 17 m³ standard,optional up to
32 m³ (semi-trailerversion) |
*Applies to all Models | ||||
Speed during Operation | 3 to 80m/min , stepless adjustable | |||
Suction/Air Blower | 15,000 m3/h, free air flow and -0.15 bar | |||
Rotation of Nozzles | 0-2,500 RPM, stepless adjustable for every cleaning |
