Argus Sensor Barriers
| Company | dormakaba UK & Ireland |
|---|
Images
Good design can be planned. The new Argus sensor barriers from dormakaba open the way to more freedom in form, color and function. They combine the options of a modern access system in the supervised entrance area in three models. From short basic versions to exquisite objects with sophisticated sensors, they offer a wide range of functions.
- Variable passage widths of 650 mm, 900 mm, 915 mm or 1,000 mm
- Variable door leaf heights of 990 mm, 1,200 mm, 1,400 mm, 1,600 mm, or 1,800 mm (upper edge)
- User-optimised scanner integration
- Discreet ambient lighting
- Smart emergency exit and escape route
- Secure separation sensors
- Efficient fixing type

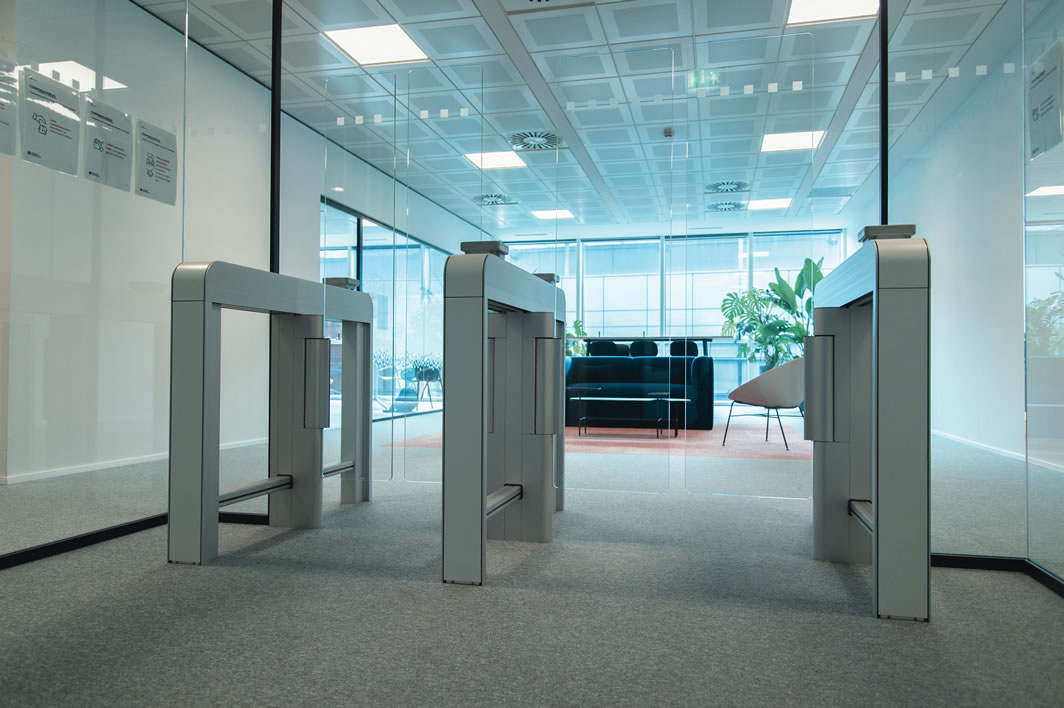

dormakaba sensor barrier Argus 60
Designation: dormakaba Argus 60
Version: half-height sensor barrier
Manufacturer: dormakaba
Construction:
Simple and appealing – integrative design of aluminium profiles with inlay elements in the handrail and in
the front. All in dormakaba’s typical XEA design language. This means a wide range of colour combinations
is possible, to fit in with the respective architecture.
Guiding element of aluminium profile with aluminium inlay elements in the handrail and in the front.
Design-oriented drive and locking components with 75 mm diameter, installed vertically on the guiding
element.
Two door leaves of transparent, impact-resistant and shatterproof plastic.
Upper edge of door leaf, flush with the body, at 990 mm. Distance from upper edge of finished floor (UEFF)
to bottom edge of the door leaf, 200 mm.
In the leg area, there is a horizontal sensor strip, which performs protection and safety functions alike. In
addition, a vertical sensor is integrated in the entrance area and in the exit area, which further enhances the
system’s security level and ensures reliable separation as well as detection of persons entering from the
opposite direction. Visually elegant integration of the sensor attachment and cladding in the construction.
Prepared to hold a wide range of scanner units, underneath the inlay elements in the hand rail, if technically
possible.
Standard dimensions:
Passage width: 650 mm
Total width: 1060 mm
Interlock height: 990 mm
Interlock length: 1650 mm
Guiding element width: 130 mm
Guiding element of aluminium profile with aluminium inlay elements in the handrail and in the front
Security function:
Depending on the actuated function, a motorised movement of the door leaf occurs both in the entrance
direction and in the exit direction.
Both directions are electronically controlled and both door leaves are opened via the corresponding release
signal.
Entry into the interlock is monitored by the vertical sensor, which minimises the error rate and alarm quota
in relation to separation in particular. The passage area is monitored by a sensor strip in the leg area, which
enables monitoring of the individual passage in both directions.
Passage against the approved direction is also detected and an alarm signal triggered.
The sensors offer an integrated sneak-by guard, a significant reduction in false alarms and enable passage
with trolleys.
Dormakaba Argus 60 tender text
The type of locking technology means the door leaves can be locked in any position, depending on demand
and detection of unauthorised use.
Safety protection function:
The same sensors are used for separation and for monitoring the swinging area of the door leaves.
If activated in the swinging area of the door leaf, the movement is stopped immediately or significantly
decelerated. It is thus highly unlikely that a person passing through will be hit or become trapped
