dormakaba compact reader 90 01
| Company | dormakaba UK & Ireland |
|---|---|
| Product code | dormakaba Registration Unit 90 01 |
Images
Description
Specifications

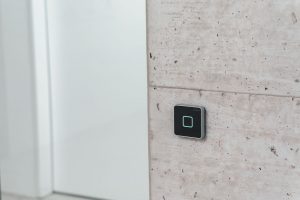

The dormakaba registration unit 90 01 has an innovative design in an elegant, high-gloss finish and an eye-catching compact form. It blends discreetly and harmoniously into modern buildings. Together with the control unit, though separately installed, the unit secures access to buildings and rooms. Because the control device is installed in the secure indoor area the access control system is protected from sabotage. Communication between the registration unit and the control unit that goes with it is encrypted, offering a high level of security.
- Dimensions: (W x H x D) • with rear panel: 88.5 x 88.5 x 19.4 mm • with spacer frame: 88.5 x 88.5 x 26.4 mm
- Options: RFID & Mobile Access / RFID & Mobile Access NFC & BLE
- Communication via 50 Ω coaxial cable (RG 174/U recommended)
- Design / material: rear panel /spacer frame = RAL 9005 (black), RAL 9016 (white). Frame material: PC/ABS colour = RAL 9006, NCS S2502-B. Front material: Autotex polyester film in PMMA, colour = RAL 9005 (black), RAL 9016 (white)
- Certificates / standards: EN301 489-1, EN301 489-3, EN300 330-1, EN 300 330-2, RED 2014/53/EU
