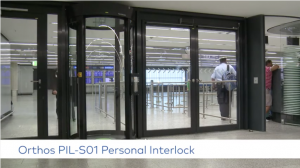

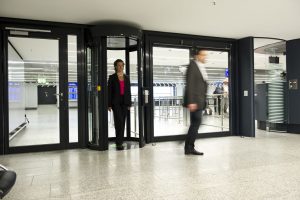

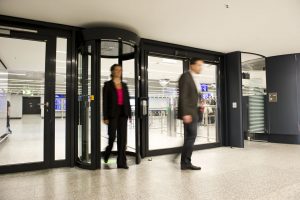

Orthos Personal Interlocks

Description
Specifications

Orthos electronically monitored security interlocks meet the most exacting security requirements and offer optimum protection for the sensitive areas of a building. The required safety levels are provided individually: from the authorisation of staff access by a card reader or code keyboard to verification of identity using biometric systems in the interior of the lock.

Security interlocks can be equipped with a range of different resistance classes, biometric verification, weight checking, or one or two-zone contact mats.

Outside Diameter (mm): 1020, 1120, 1220, 1320, 1420, 1520, 1620
Passage Width (mm): 520, 580, 650, 710, 780, 840, 910
Total Height: 2300
Passage Height (mm): 2100
Upper Part of Body (mm): 200
Resistance Class: RC2 or without available.
Side Panels: With glass panel, alternatively metal-clad. Including black rubber floor covering.
Sliding doors: Made of light metal profiles with curved glass, flush mounted outside.
Finish: Powder-coated in RAL colour
Function: Door leaves with locking system. Default position inside and outside closed. Automatic opening and closing of both door leaves consecutively. PMA emergency release switch inside the interlock, opens the outer door. Interior with surface light scanner for relaying, including 1-zone contact mat with black rubber floor covering. Light curtain for contactless protection. Integrated in the faceplate of the outside radius on both sides. Behaviour of the sliding doors in the event of a power failure can be freely selected. Standard setting: inside closed and locked, outside open. Behaviour of the sliding doors in the event of a power failure for burglary-resistant option: outside closed and locked, inside open. PMA is replaced by a manual unlocking device inside the interlock.
Electrical Equipment: Network compatible ETS 21 CAN bus control unit integrated in the unit, power supply 230 VAC, 50 Hz.
Installation: On stainless steel floor element with guide rail for sub floor level SFL, measure X= 70mm – 79mm. The ambient conditions must be checked for outdoor installation.
