BCAS Mobile – Vehicle-mounted acoustic deterrence for bird control teams
Images
BCAS Mobile – a vehicle-mounted avian and terrestrial species’ acoustic deterrence system for wildlife control units. Manually operated through a control module in the car cockpit, the two powerful acoustic modules emit Volacom’s proprietary ASR-inducing signal, clearing the runway both from birds and other animals, without causing any harm or stress. Scientific studies and experiments have concluded that no habituation to the signal occurs regardless of how many times birds/animals are exposed to it. At more than 145 dB @ 1m BCAS Mobile’s acoustic emitters are some of the loudest on the market today, but also allow for manual adjustment of the sound pressure in case higher such is not allowed or desirable.

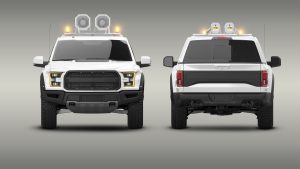

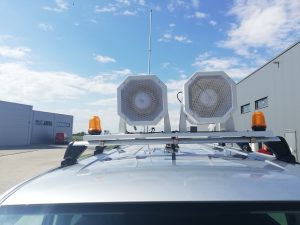

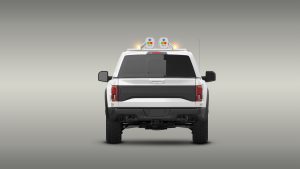

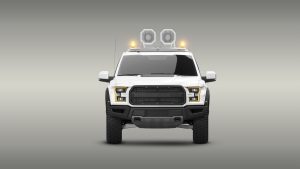

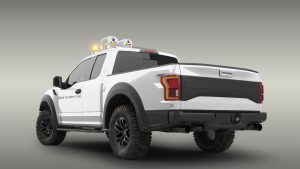

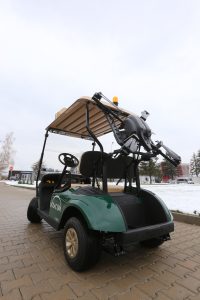

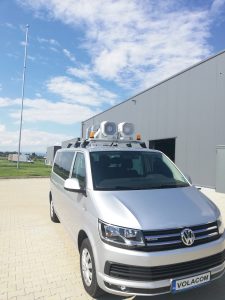

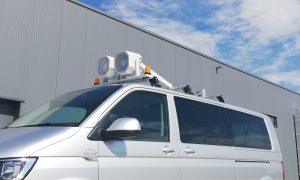

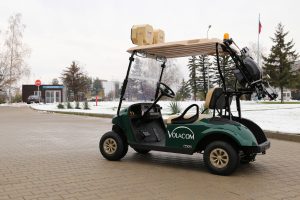

The system can be mounted on any type of vehicle, including pickup trucks, minivans, sedans, golf carts etc. Package includes a standardized set of items and detailed instructions for DIY installation, including 2x acoustic modules, adjustable support bars, control module, amplifier, cabling, yellow warning lights, and remote control. Power supply is sourced from the car battery.
Alternatively, the system can be installed at a fixed location and pointed to a specific direction where operators know of persistent wildlife presence, and start/stop it manually through the remote control included in the set.
BCAS Mobile is applicable for various industries where birds and other terrestrial animals represent a problem or risk to operations:
- Bird / Wildlife control units at airports
- Service vehicles at seaports / marinas
- Maintenance vehicles at solar farms
- Service vehicles at sizable industrial facilities
- Landfills
- Farmlands
Every product and technological solution developed and offered by Volacom is completely harmless to avian, terrestrial and marine animal species, in line with the company’s policy to preserve biodiversity and protect wildlife and businesses at the same time. The technology’s safety was tested and established through scientific studies carried out by the WWF, The University of Veterinary Medicine, Vienna and the Bulgarian Academy of Sciences. Volacom is ISO 9001 and ISO 45 001 certified. The company’s BCAS bird control technology is patented in the US and Russia.

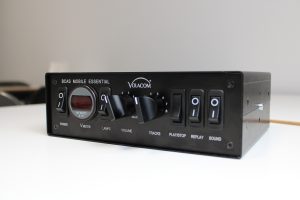

Control module | |
Operating temperature | +10°C ÷ +55°C |
Weight | 1.2 kg |
Dimensions | W/H/D 213/70/187 mm |
Dimensions with mounting plate | W/H/D 220/98/187 mm |
Power Supply Voltage | 12 VDC / 1A |
Remote control device | |
Battery | CR2032, 3V |
Range | ≥ 10m |
Amplifier module | |
Operating temperature | +10°C ÷ +55°C |
Weight | 2.1 kg |
Dimensions | W/H/D 264/155/48 mm |
Idling current | 1.7 A |
Idling current when off | 0.09 mA |
Power Supply Voltage | 15 VDC / 40A |
Acoustic modules (x2) | |
Weight | 15 kg |
Dimensions | W/H/D 1100/372/256 mm |
Humidity | 98% |
Ingress protection | IP54 |
Sound emitter type | Compression drivers |
Acoustic signal | Proprietary for inducing ASR |
Beam width | ±15° @ 2kHz/-3dB |
Nominal impedance | 2/4 ohm |
Max power | 600W |
Operating relative humidity | max 100% |
Operating temperature | -20°C ÷ +55°C |
Sensitivity 2x1W/1m | 123 dB |
Max sound pressure – dB SPL, Peak | 148 dB |
Adjustable support bars | |
Weight | 0.9 kg |
Dimensions (L x H x D) | L/H/D 520÷775/55/30 mm |
Material | Aluminum |
Warning lights | |
Ingress protection | IP65 |
Signal colour | Yellow |
Power supply voltage | 12 ÷ 24 VDC / 0.19A |
Connection module | |
Operating temperature | -20°C ÷ +55°C |
Weight | 0.3 kg |
Humidity | 98% |
Dimensions | W/L/H 109/50/30 mm |
Ingress protection | IP54 |
