TCS Air – Automatic 0°-360° Aerial Objects Thermal Imaging Detection System

TCS Air – Volacom’s autonomous detection system for birds and aerial vehicles operates 24/7 in all-weather conditions, using thermal imaging and providing up to 360° surveillance area coverage. Detection capabilities cover a wide range of aerial vehicles (aircraft, helicopters, UAVs) and all bird species of 25+ cm wingspan. Detection distances and fields of view vary depending on client needs but may reach 10,000+ m for aircraft and 1,000+ m for birds.

The system operates through Volacom’s proprietary detection software providing live view and sound notification upon detection. Once an object is detected, TCS Air tracks it until it leaves the field of view. The modular web-based UI allows the configuration of various settings and keeps a detailed statistical database with video recordings and logs of every detection.

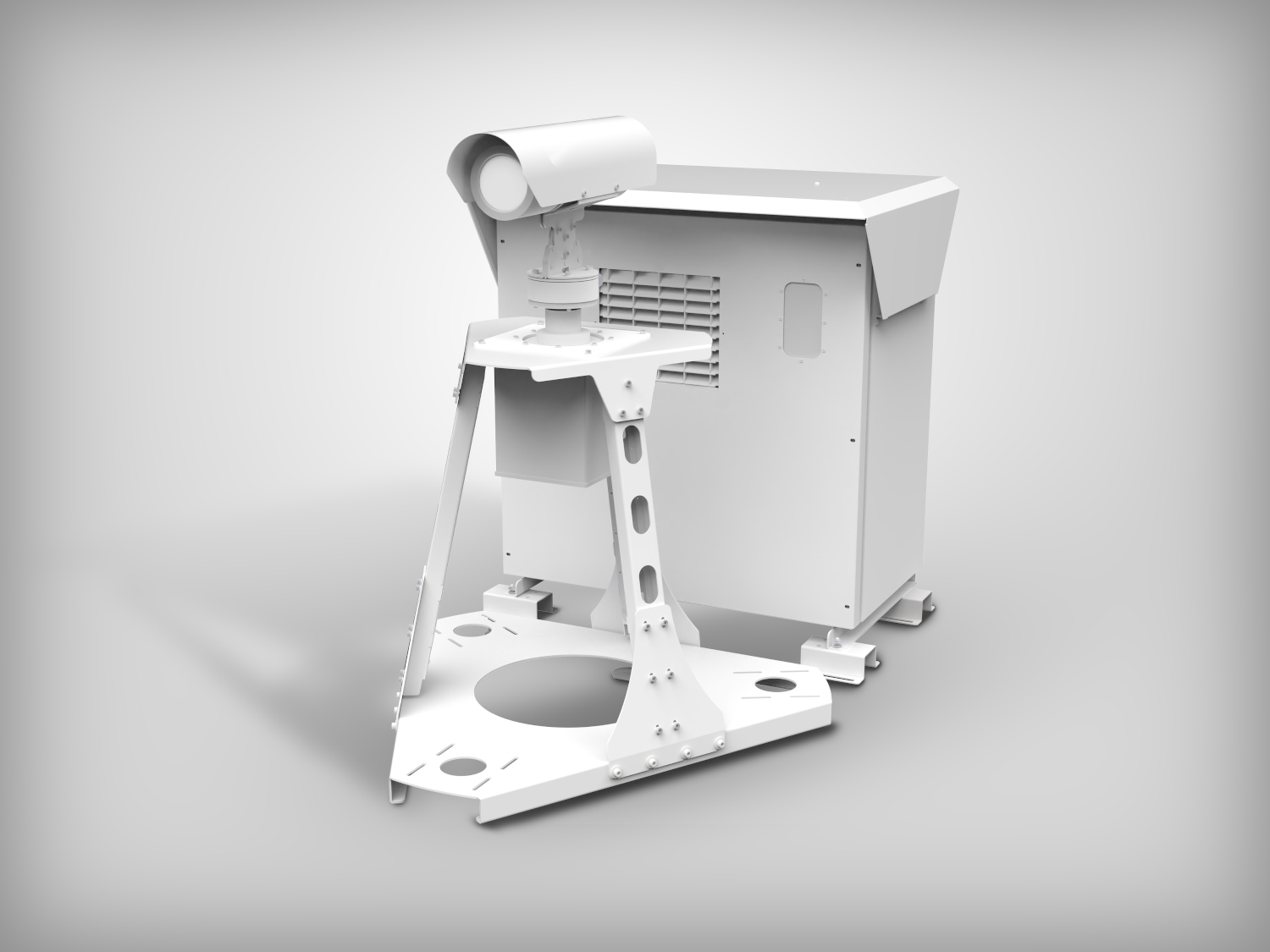

Standard TCS Air set includes:

• Thermal imaging camera
• Control module with integrated detection software
• Rotator module
• Mounting tripod
• Web-based UI access

Every product and technological solution developed and offered by Volacom is completely harmless to avian, terrestrial and marine animal species, in line with the company’s policy to preserve biodiversity and protect wildlife and businesses at the same time. The technology’s safety was tested and established through scientific studies carried out by the WWF, The University of Veterinary Medicine, Vienna and the Bulgarian Academy of Sciences. Volacom is ISO 9001 and ISO 45 001 certified. The company’s BCAS bird control technology is patented in the US and Russia.
