Volacopter LZ73-PRO Bird Deterrence and Surveillance UAV

Description
Specifications

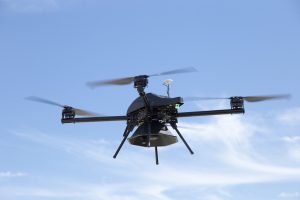

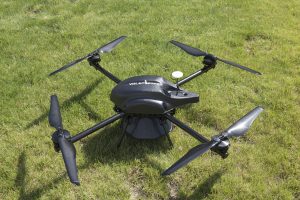

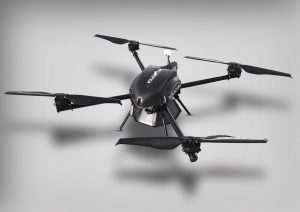

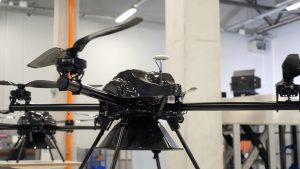

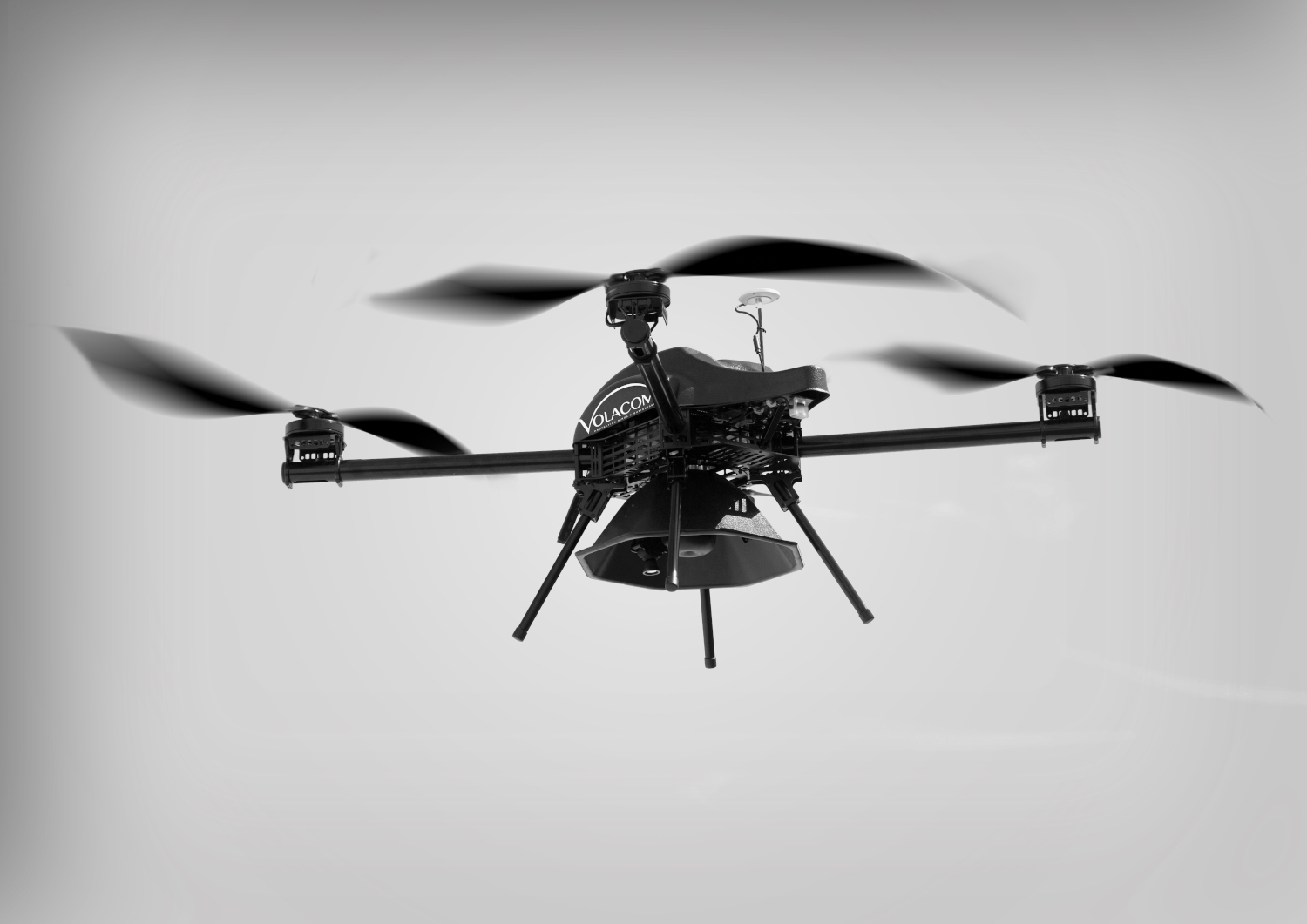

The Volacopter LZ73-PRO is a vertical take-off/landing UAV designed for professionals. Its main application is bird and wildlife control and deterrence for industries like agriculture, seaports, heavy industry, industrial rooftops and solar farms. The UAV is equipped with a powerful acoustic module, emitting Volacom’s proprietary acoustic startle reflex-inducing signal and efficiently driving off birds and animals away from protected zones without allowing habituation to the emitted signal, nor causing harm or stress to species.

The platform is made of light materials like carbon and aluminium and achieves flight times of up to 50 min on a single charge. It is manually operated through the included remote control module or automatically through the built-in navigation software and mission programming capabilities. Two HD cameras for control, inspection, and surveillance are also included as а standard equipment, whereas one can be replaced with a thermal imaging camera for improved visibility in adverse weather conditions and night time.

The Volacopter is appropriate for wildlife control at airport adjacent areas, surveillance and perimeter control, as well as aerial photography.

Every product and technological solution developed and offered by Volacom is completely harmless to avian, terrestrial and marine animal species, in line with the company’s policy to preserve biodiversity and protect wildlife and businesses at the same time. The technology’s safety was tested and established through scientific studies carried out by the WWF, The University of Veterinary Medicine, Vienna and the Bulgarian Academy of Sciences. Volacom is ISO 9001 and ISO 45 001 certified. The company’s BCAS bird control technology is patented in the US and Russia.

Aerial vehicle
Diagonal size (propellers excluded) 1 188 mm
Length (propellers excluded) 881 mm
Height 407 mm
Material Aluminum, thermoplastic, carbon fiber composite
Motors 4 pcs, brushless DC
Weight (battery and propellers included, no payload) 7 200 g
Max payload 10 kg
Endurance (no wind, no payload) 45 min
Endurance (no wind, with acoustic module) 35 min
Recommended flight time per charge 30 min
Recommended altitude for bird deterrence 15-20 m above birds
Cruising speed 40 km/h
Maximum flight speed 60 km/h
Max ascent speed 5 m/s
Max descent speed 4 m/s
Satellite positioning system GPS
Recommended flight speed during bird and animal deterrence 12 km/h
Control mode Manual, auto “mission” mode
Nr of propeller sets included in package 2 sets x 4 propellers each
Operating temperature  -5°C to +40°C
Operating humidity  max 90%
Ingress protection IP53
Max wind resistance <10 m/s
Horizontal camera
Sensor 1/2.33” CMOS 16.37 MP
Lens F2.5 DFOV166°
Focal length 3 +/- 5% mm
Video resolution Max support 1080P 60fps
Photo format JPEG
Video format H.264 High Profile Level 4.2 MP4
Video output HDMI: Support 1920x1080P60 output with CEC
Vertical camera
Sensor 1/2.33” CMOS 16.37 MP
Lens F2.0 DFOV166°
Focal length 3 +/- 5% mm
Video resolution Max support 1080P 60fps
Photo format JPEG
Video format H.264 High Profile Level 4.2 MP4
Video output HDMI: Support 1920x1080P60 output with CEC
Battery
Nr of batteries included in package 2
Type Tattu 16000 mAh, 22.2V
Voltage 22.2V
Weight 2 063 gr
Dimensions  L/W/H 202/88/70 mm
Max continuous / burst discharge 15C / 30C
Discharge plug AS150+XT150
Charging hub type SKYRC PC1080
Acoustic module
Sound pressure 130 dB @ 1m
Operating and storage temperature  -40C to +55C
Emitter type Compression drivers
Remote control
Type DJI Lightbridge 2
Screen Apple iPad 9.7′
Operating frequency 2.4 GHz and 5.8 GHz
Output power 9W
Built-in battery 6000 mAh, 2S LiPro
Operating temperature  -10C to +40C
Max transmission range 3500 m (Unobstructed, free of interference)
Charger voltage 17.4V
Charger rated power 57W
Transport case
Dimensions  L/W/H 940/940/500 mm
Weight (fully equipped UAV + acoustic module. Excluding remote control briefcase) 44 kg
Material Plywood
Remote control briefcase specification (separate, incl. remote control) Dimensions: L/W/H 480/400/220 mm; Weight: 6.6 kg
