Diesel-Driven Ground Power Supply - D POWER
| Company | Hitzinger Electric Power GmbH |
|---|---|
| Product code | D POWER |
Images
Description
Specifications

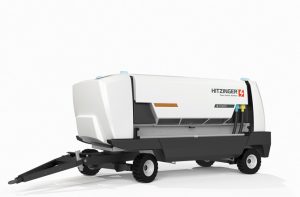

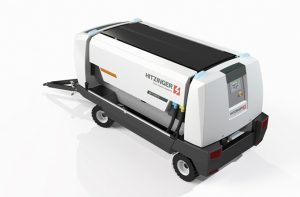

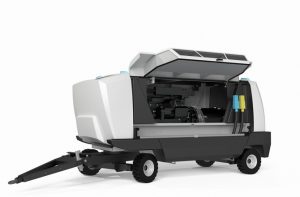

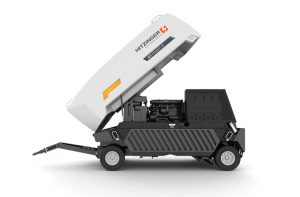

The Hitzinger D POWER GPU supplies all common types of modern aircrafts with 200 / 115 VAC 400 Hz & 28 VDC.
Thanks to its modular design the D POWER offers a vast range of possible configurations to support your operational requirements in the best possible way.
Best-in-class serviceability, maximum efficiency and reduced total costs of operation make the D POWER the best choice for safe and long-term operations.
Download: D POWER (PDF)
Download: JET POWER (PDF)
Versions

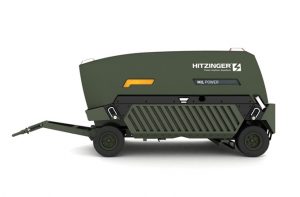

- Towed version
- Self-propelled version

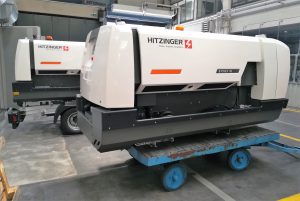

- Version for aircraft tugs
Power classes
- 90 to 180 kVA
Diesel engines
- Deutz
- Cummins
- 1500 / 1846 / 2000 / 2200 rpm
Technical data
- Voltage: 200 / 115 VAC
- Frequency: 400 Hz
Environment
- Ambient temperature: -30 °C to +52 °C
- Relative humidity: up to 95 %
- Noise level: <75 dB (A) @ 1 m
Ergonomics
- Intuitive operational panel with touch functionality
Options
- 28 VDC unit for single or simultaneous operation, continuous load: 600 A, maximum load: 2.500 A
- 2×28 / 56 VDC for simultaneous operation
- Modified protection by isolation (IT) in accordance with DFS 400
- Integration of telematics systems
- Tailored versions on request
