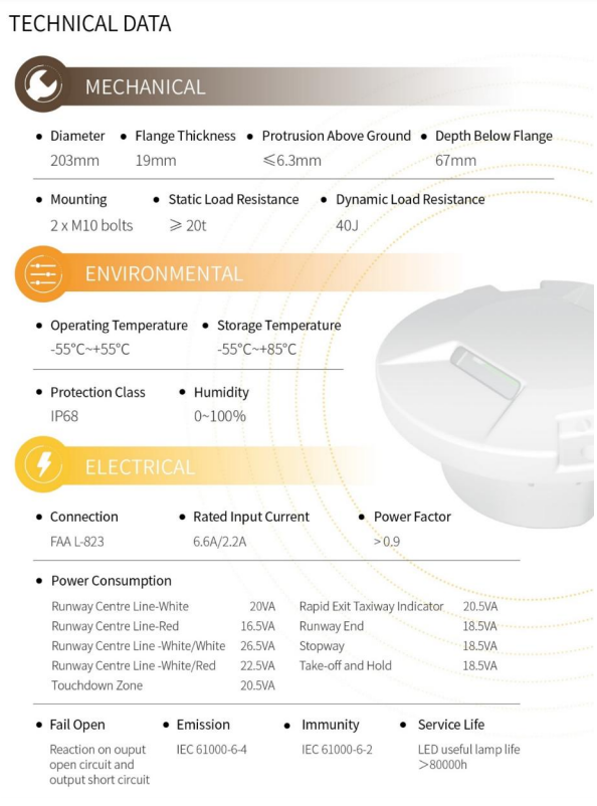

Specifications

Our ALS branded DTS range is designed and manufactured to the highest standards and is sold globally.

The range was established in 2008, Airfield Lighting Systems are a well-known and trusted innovator in the design and manufacturing of ground lighting equipment for commercial and military airports. We offer an innovative range of products as a leading light for Airfield Lighting Solutions.

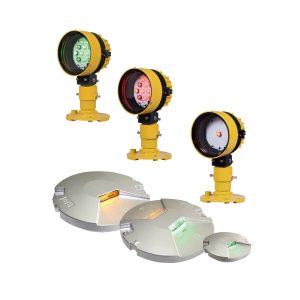

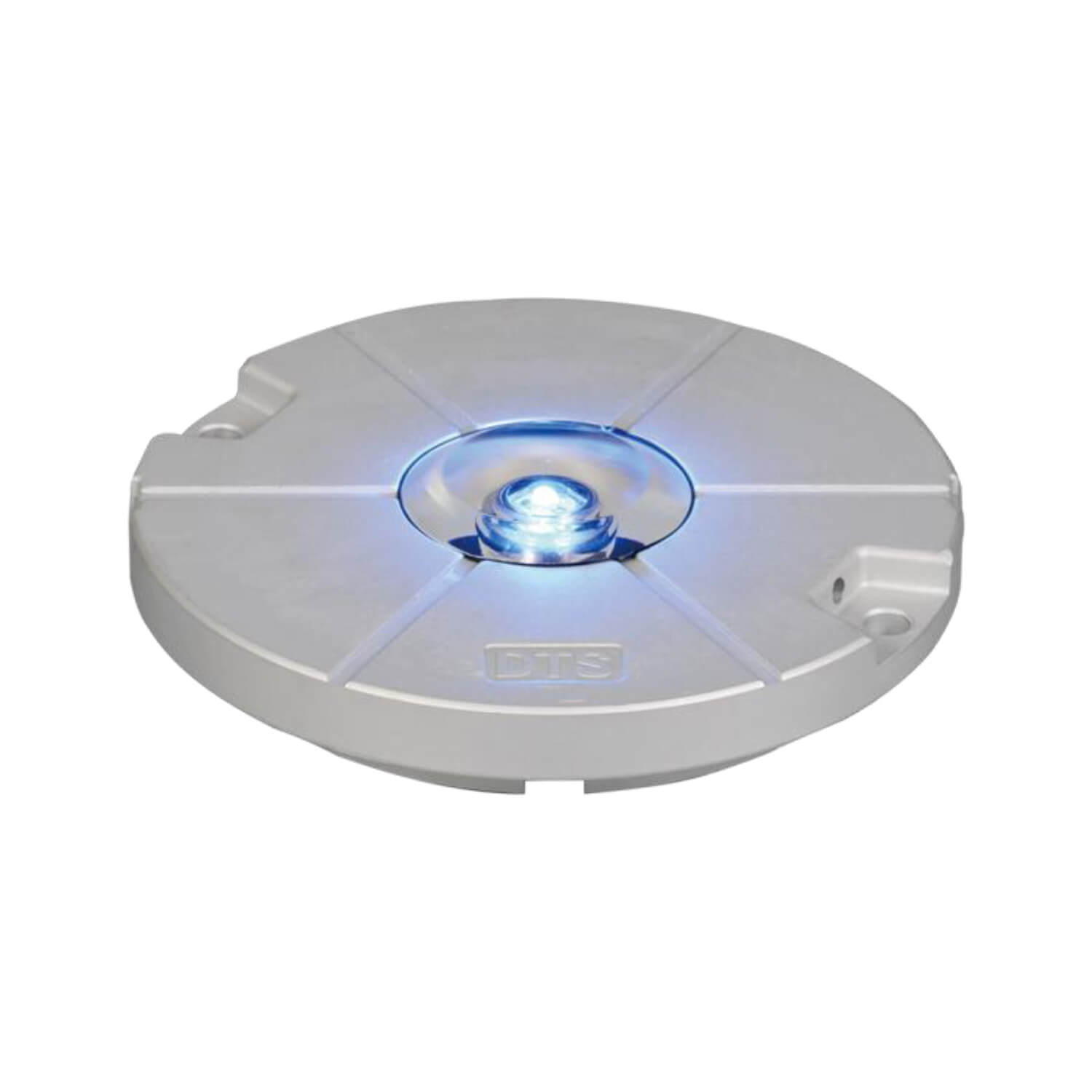

The ALS DTS LED Inset Runway Lights are part of our new low energy, high performance range of Airfield Ground Lighting.  They are suitable for all Runway applications and utilise the latest super bright LED technology available in the field. Full range details are available here.

The range is comprehensive and includes RC/IN Runway Centre Line, TZ/IN Touchdown Centre Zone, FI/IN Rapid Exit Taxiway Indicator, RE/IN Runway End, RE/IN Stopway and THL/IN Take-off and Hold models.

LED provide long life and low maintenance operation, very low power consumption and reduced running costs compared to halogen (a saving of typically 80%).

They are sleek, sturdy and compact with a low protrusion of less than 6.3 mm above ground level but do not compromise safety, in fact the standard light comes equipped with self learning fail open technology for extra protection.

Features

  • Low protrusion of 6.3mm above the ground.
  • Modulised electrical driver and LED assembly for simplicity of maintenance.
  • Efficient and stable optical output, suitable for operation with 6.6A and 2.2A CCR’s.
  • Unique optical design, ensuring luminous efficacy and colour consistency.
  • Advanced thermal management solution to extend life expectancy to 80,000 hours.
  • Innovative design means the electronics are protected against shock and vibration.
  • Precision aluminium components, treated with a special external coating.
  • Built in surge protection.
  • Fail safe system for protection on the airfield.
  • Easy clean Borosilicate glass prism for precise light output.

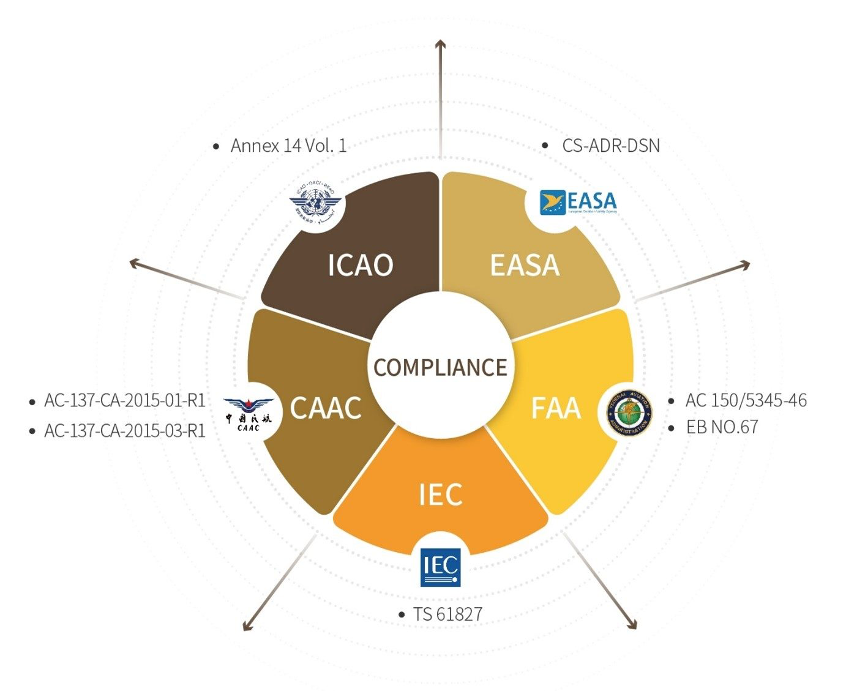

Compliance

Accessories

Power Consumption

Runway Centre Line -White                    20VA

Rapid Exit Taxiway Indicator                 20.5VA

Runway Centre Line -Red                       16.5VA

Runway End                                              18.5VA

Runway Centre Line -White/White     26.5VA

Stopway                                                     18.5VA

Runway Centre Line -White/Red       22.5VA

Take-off and Hold                                 18.5VA

Touchdown Zone                                  20.5VA
